MEDTOX SURE-SCREEN Quick Reference Manual

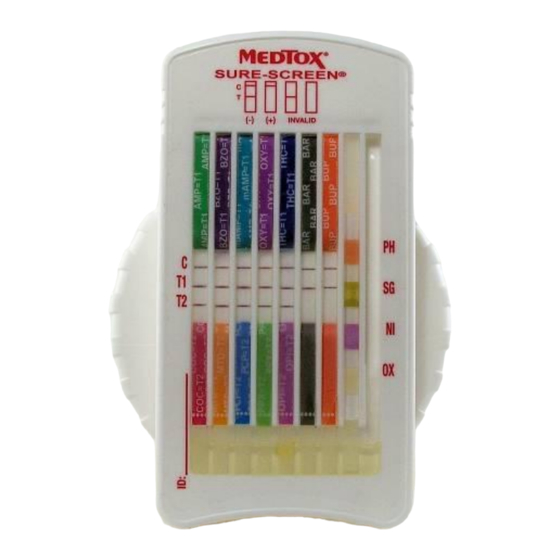

C = Control Line
T1 = Test Line for drug
name on top portion
T2 = Test Line for drug
name below
(if no print on lower
color, then no T2
drug tested)
Bring pouched device to
room temp (18-25°C / 64-
77°F) before opening.
For Forensic Use Only
Instructions
Obtain urine. Urine level
must be between the Min /
Max lines on cup. If urine
was refrigerated, bring to
room temp and mix well
before testing.
Example Sufficient URINE Present
--about ¼ inch evenly distributed--
is all that is needed for the device to
migrate properly. More urine is NOT
necessary! Allow test device to rest
undisturbed for 5 minutes.
Seal Properly if
Transporting to Laboratory
for confirmation:

Tighten the lid

Use dual seal provided
with cup
o
Seal sample port
o
Seal vent hole
© 2010 MEDTOX Diagnostics, Inc. All rights reserved.
SURE-SCREEN
Quick Reference Guide
Screw lid onto cup --
TIGHTEN FIRMLY.
Tear open pouch and
remove device. Align device
and cup as shown.
READING THE TEST RESULTS
Read Time: 5 minutes
For examples at right:
C = Control
T1 Tests = AMP, THC, BZO
T2 Tests = COC, OPI
VALID:
A reddish-purple line appears
in the "C" area for each test.
INVALID:
No control line "C" present.
Retest urine with a new
device.
Strips with two tests will be labeled with two colors. The top color will indicate the T1 test with drug test name=T1. The bottom
color will indicate the T2 test with test name=T2. Strips with only one color will have test results appear at the T1 position only.
The device detects one or more of the following
drug classes at the following concentrations:
Amphetamine (AMP)
Barbiturates (BAR)
Buprenorphine (BUP)
Benzodiazepines (BZO)
Cocaine (COC)
Methadone (MTD)
Methamphetamine (mAMP)
Opiates (OPI)
Oxycodone (OXY)
Phencyclidine (PCP)
Propoxyphene (PPX)
Cannabinoids (THC)
Note: If LFAS adulterant strip is present (to the right of drug test strips),
refer to the Color Comparator Chart to interpret results
Place the device securely on
to the lid---the parts should
interlock easily and move
freely clockwise.
NEGATIVE:
Any reddish-purple line visible at 5 min.
in the test area is a negative result
(even a faint or broken line).
Example above: all 5 test results are
negative.
For complete product information refer to the
available at
INSERT
or contact Technical Support at 1-877-643-5703.
SURE-SCREEN
MEDTOX Diagnostics, Inc. • 1238 Anthony Road
Phone: 1-877-457-0613 • Fax: 651-286-6222
®
Rotate the device clockwise
¼ of a turn (i.e. from 9
o'clock to 12 o'clock) until it
snaps into place.
PRELIMINARY POSITIVE:
The absence of a line in the test area
is a preliminary positive result.
Example above: the AMP
(Amphetamine) test is a preliminary
positive.
http://www.medtox.com/ProductTraining.aspx
®
12-panel Forensic Use Only Package
INSERT Rev. 6/10,
P/N 102109
Burlington, NC 27215
E-mail: sales@medtox.com
300 ng/ml
200 ng/ml
10 ng/ml
200 ng/ml
100 ng/ml
200 ng/ml
1000 ng/ml
100 ng/ml
100 ng/ml
25 ng/ml
300 ng/ml
40 ng/ml
.
Place cup on its side as
shown above to start urine
flow.
PACKAGE
.
P/N: 102113 Rev. 8/10
