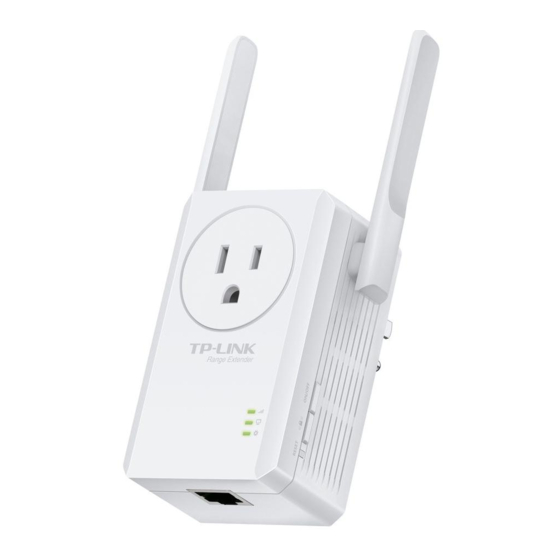

TP-Link TL-WA860RE Quick Installation Manual

Quick
Installation
Guide
Applicable Model:
TL-WA860RE
Method ONE: Quick Setup using the WPS Button
WPS
Method TWO: Setup using your Web Browser
Quick Setup using the WPS Button
Method ONE
Use this if your Router or Access Point (AP) supports WPS
1
Power on
Plug your TL-WA860RE into a power outlet
near your Router/AP.
3
Relocate
Once your TL-WA860RE is properly configured, you can move it to a more ideal location for optimal signal quality and coverage.
Once placed in another power outlet, the extender will reconnect to the main Router/AP automatically in about 30 seconds. * Keep these in mind:
Generally, the ideal location for your extender is Halfway between your wireless
router and Wi-Fi enabled devices.
Enjoy!
The TL-WA860RE shares the same Wi-Fi network name (SSID) and Wi-Fi
password with your main Router/AP.
Q1. How to reset the TL-WA860RE?
A1: While the TL-WA860RE is plugged into a power outlet, press
the RESET button for 2 seconds. Wait 5 seconds until all the
LEDs flash once.
OR
A2: Log into the management page via your web browser, then
go to "System Tools -> Factory Defaults" and click "Restore".
Wait 5 seconds until all of the TL-WA860RE's LEDs flash once.
2
Wait until the ' '
LED goes from orange to
solid green.
Frequently Asked Questions (FAQ)
RESET
RESET ON/OFF
LED Explanation
Off: TL-WA860RE isn't connected to the router.
Flashing Green: TL-WA860RE is connecting to
the router.
Solid Green:TL-WA860RE is connected to the
router and is in a good location.
Flashing Orange: TL-WA860RE is connected
to the router but is too far away from the router.
Solid Orange: TL-WA860RE is connected to
the router but is too close to the router.
If you push the ON/OFF button on the side panel, all LEDs will be off as TL-WA860RE
is powered off.
Push the two WPS buttons
Push the WPS button
1
on your Router/AP.
If the WPS connection fails, please go to Method TWO.
Signal ( ) LED Location
Solid Green Ideal Location
Solid Orange Too Close to the Router
Flashing Orange Too Far from the Router
Signal ( ) LED Status could help you
find a more ideal location.
SSID (TP-LINK_XXX)
Password (ABCDEF)
Q2. I typed http://tplinkextender.net in the browser URL bar, but why can't I see the quick setup
ON/OFF
page?
A: First, make sure your computer is connected to the extender network and disconnected from any other network. Second, make
sure your computer is set to "Obtain an IP address
Q3. What's the technical support hotline?
A: Please visit "www.tp-link.com", find "Support>Contact Technical Support>Hotline Support" for more information.
Off: No device is connected to ETHERNET port.
Green: A device is connected to the ETHERNET
port.
Off: TL-WA860RE is off.
Orange: TL-WA860RE is booting.
Green: TL-WA860RE is on.
For more information, please visit our website: http://www.tp-link.com
Immediately push the
2
button on your
TL-WA860RE.
flashing green to solid green,
solid orange, or flashing orange
in 1 minute, showing that WPS
connection has succeeded.
means WPS connection fails.
far away
Keep the extender away from devices like cordless
phones, Bluetooth devices and Microwave Ovens to
minimize wireless interference.
If possible, try to place your extender in open corridors or
spacious locations rather than a crowded room.
SSID (TP-LINK_XXX)
Password (ABCDEF)
automatically".
The ' ' LED will go from
If ' ' LED turns off, it
