MANUAL
ENGLISH
PMM-401
Ordercode: D1531
4 Channel Passive Mixer
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DAPAudio PMM-401
Summary of Contents for DAPAudio PMM-401
- Page 1 MANUAL ENGLISH PMM-401 Ordercode: D1531 4 Channel Passive Mixer Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

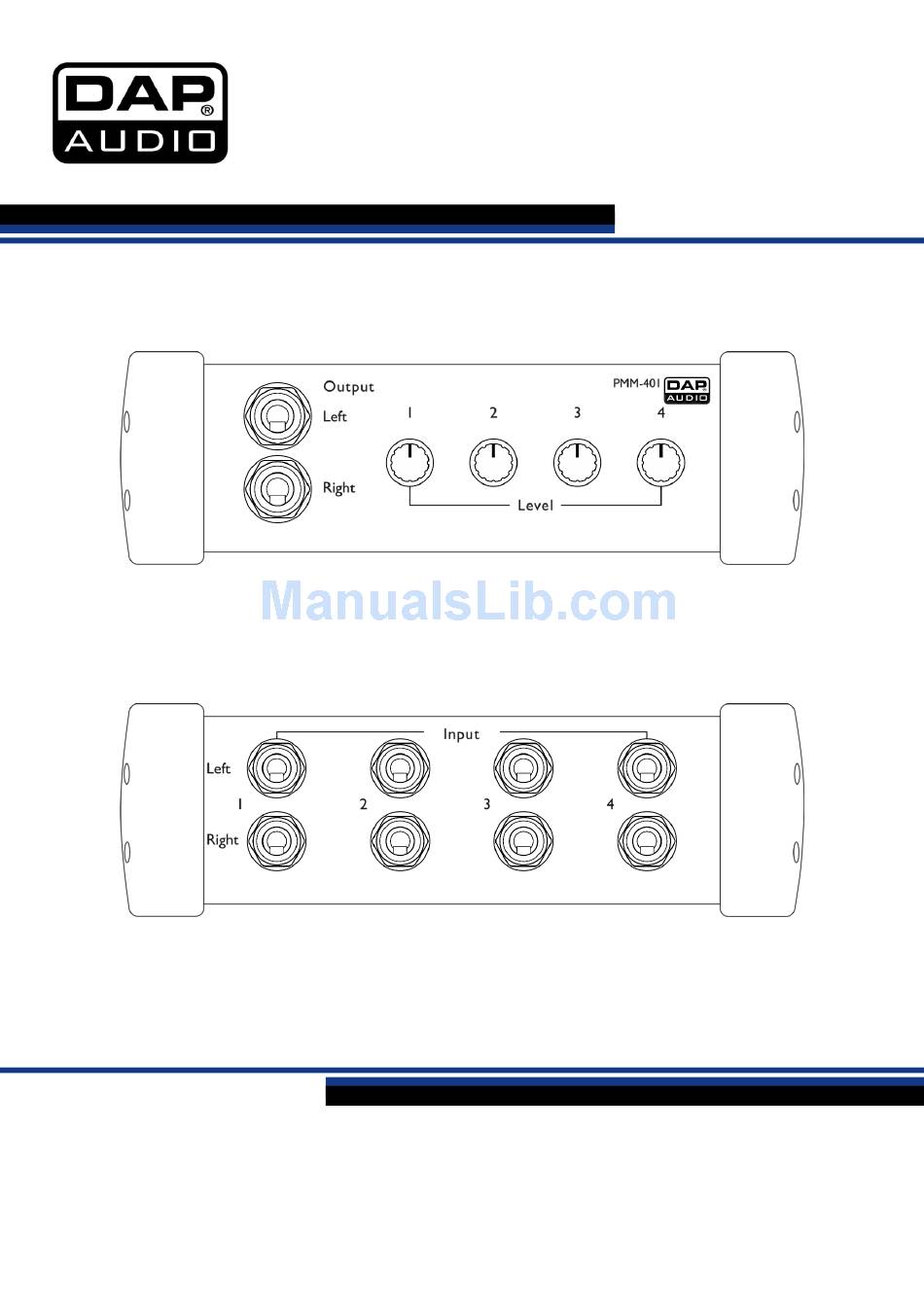

- Page 2 Description The PMM-401 is a four channel passive mixer for expanding a mixer with extra line signals. It requires no batteries or other power sources. When all controls are turned completely clockwise, the unit can be used as a 1-in 4-out box.
- Page 3 PMM-401 4 Channel Passive Mixer Connection Example D1531...
- Page 4 PMM-401 4 Channel Passive Mixer Dimensions Specifications Frequency Response: 20Hz-20KHz Inputs: 6,3 TRS Jack Outputs: 6,3 TRS Jack Input Impedance line: 1Meg Input Impedance: 50 kOhm Output Impedance: 12 KOhm Dimensions: 53x158x135 mm (HxWxD) Weight: 0,67 Kg ©2013 DAP Audio...
