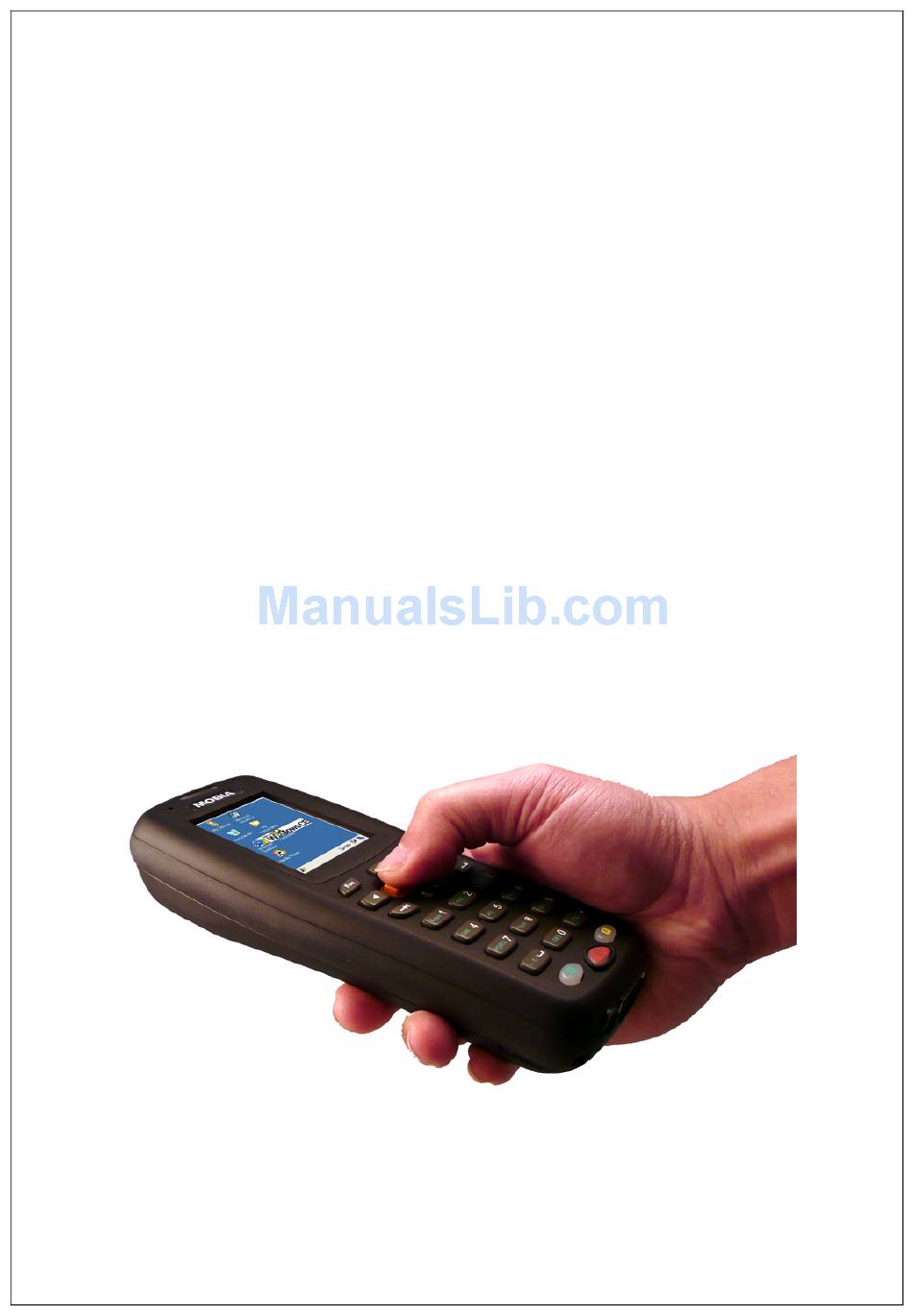

- Page 1 PPT-180 Series Portable Data Terminal User Manual...
- Page 3 Notice: This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication.
-
Page 5: Table Of Contents
- Contents - 1. Safety precautions............1 2. Specifications ............... 2 3. List of included items............ 3 4. Exterior ................. 4 5. Operation..............7 5.1 To charge and change battery ....... 7 5.2 System reset ............8 5.3 Use and care of the touch panel ......8 5.4 Internal data storage space (Flash memory) .. -
Page 7: Safety Precautions
1. Safety precautions For your safety, please read the following: (1) Please only accessories from original manufacturer. Use of any accessories not provided by the manufacturer may damage the device and invalidate the product warranty. (2) Do not place the device in environments that exceed the specified temperature or humidity limits. -
Page 8: Specifications
2. Specifications Windows CE.NET 5.0 (Compact Framework 2.0) Intel PXA255 400MHz 64 MB On board: 256 MB (180 MB available) Flash Expend: SD memory card 2.8” TFT, SVGA 240*320 Touch Screen 4 wire resistive Barcode reader 1D Laser WLAN (Optional): 802.11b/g Wireless Bluetooth (Optional): Class II AC Input: 100~240V, 50~60Hz... -
Page 9: List Of Included Items
3. List of included items Upon opening the packaging, please check that the following items are included: (1) PPT-180 portable data terminal with stylus (2) Main Battery (3) Power adaptor (4) USB active sync cable (5) Stylus strap (6) User manual - 3 -... -
Page 10: Exterior
4. Exterior - 4 -... - Page 11 1. Internal microphone 2. 2.8” TFT color LCD with touch panel, resolution: 240*320 pixels 3. Alphanumeric keys These keys are used to enter numbers and letters. Every key can be used together with the Alpha ( ) or Function ( ) key to allow a different mode of data entry, refer to table below: Normal mode...
- Page 12 Rotates through letters Numeral ” 8 ” T, U, V (Programmable) Rotates through letters Numeral ” 9 ” W, X, Y, Z (Programmable) Rotates through symbols Soft Keyboard Numeral ” 0 ” =, #, @, $ (Programmable) Rotates through symbols Space key Not definable +, -, *, /...
-
Page 13: Operation
13. Earphone jack: Ø2.5mm, 3 poles, for external stereo earphone. 14. Multipurpose communication port for: (1) USB client: Use the USB cable included to link the device to a PC for data synchronization, software installation, etc. (2) RS-232: Use the RS-232 cable (optional) to support standard RS-232 functions. -
Page 14: System Reset
5.2 System reset If an application causes the device to hang, the system reset function can return the terminal to normal operating status. This terminal features two types of reset: (1) Warm reset Use the stylus to lightly press the reset button on the back of the device. -
Page 15: Internal Data Storage Space (Flash Memory)
5.4 Internal data storage space (Flash memory) A limited storage space for user to save data can be found in “My Device > Flash”. Data saved in this folder remains after run out of the battery. For data exceeds this storage space can be saved in SD memory card. -
Page 16: System Tools
6. System Tools System tools provide users to change the settings on this device. It can be opened when click the icon on the tool bar. 6.1 PC Connection Use ActiveSync to synchronize data between device and PC. Start ActiveSync Change the connect interface Caution: ActiveSync will automatic start up when using USB interface only, if using the other interface, it is necessary to start... -
Page 17: Bluetooth (Optional)
6.2 Bluetooth (optional) (1) This function only active on the specified models that feature with a Bluetooth module. (2) Click ON/OFF to turn on/off the internal Bluetooth module function. (3) When Bluetooth function is on, a Bluetooth icon will show on the tool bar. (4) Click Bluetooth icon to open the BTMgr (Bluetooth management). -
Page 18: Scan Engine
6.3 SCAN Engine (1) Click ON/OFF to turn on/off the internal barcode scanner. (2) When barcode scanner is on, a barcode icon will show on the tool bar. (3) Scan modes setting: Advance Mode: Scanner can be triggered only on EDIT cursor. -
Page 19: Wifi (Optional)
6.4 WiFi (optional) (1) This function only active on the specified models that feature with a WLAN module. (2) Click ON/OFF to turn on/off the internal WLAN module function. (3) Scan interval setting may change the refresh network time after network disconnected. -
Page 20: Screen Backlight
(8) According to network environment requirement to define settings for TCP/IP, DNS and other parameters (refer to the “Network and Dial-up Connections” in Start -> Settings or Control Panel). 6.5 Screen Backlight (1) Move the cursor to desired screen backlight level. (2) Click “Detail”... -
Page 21: Keypad Backlight
6.6 KeyPad Backlight (1) Click ON/OFF to turn on/off the keypad backlight. (2) If keypad backlight is turn on, it will automatically light when press any key, and unlit after 3 seconds. 6.7 Function Key (1) There are 10 programmable function keys. (2) Each key can be defined to run an application or emulator. -
Page 22: Volume
6.8 Volume (1) Move the cursor to desired volume level. (2) Click “Detail” button to change other parameters if needed. 6.9 System This page shows system information as: System Tool version Click this button will set all settings in System Tool back to factory default Device serial number OS version Hardware version... -
Page 23: Backup And Restore
6.10 Backup and Restore (1) Click “Backup” button at System information page to open this Backup and Restore application. (2) All files and system register on the RAM will be saved and restored. Set backup file name and path Select to enable auto restore function when cold reset Select a file to restore Start backup procedure... - Page 24 2507F200001A (081015)
