Summary of Contents for Quick Learn E28Q

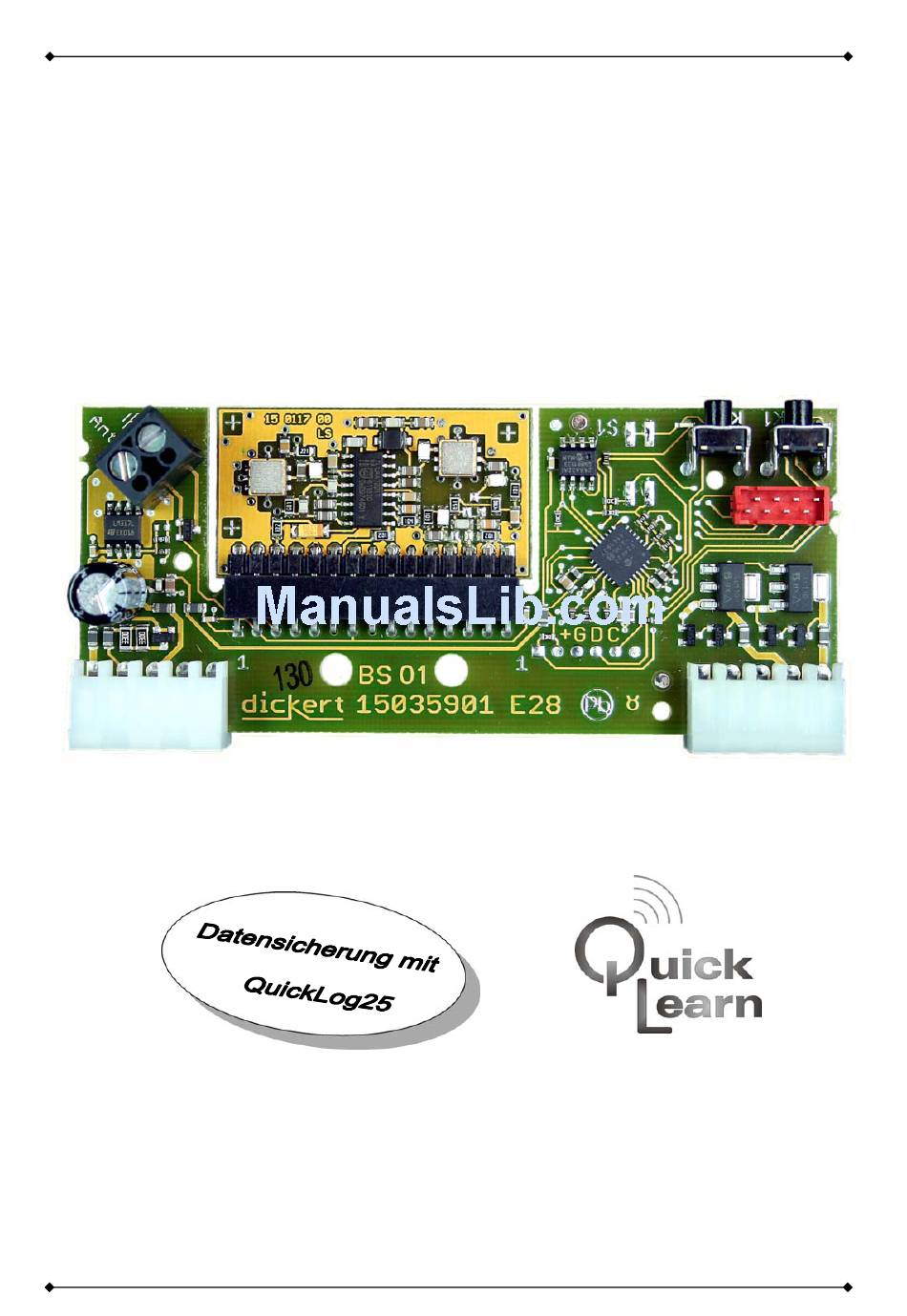

- Page 1 Wireless Receiver E28Q Wireless Receiver E28Q Mounting and Operating Instructions (Original operating instructions) Always read before initial operation! 28509900_E28Q_EN_2012-05-08.doc 1 / 12...
-
Page 2: Data Summary And Functions
1.1. Scope The E28Q is a 2-channel wireless receiver designed as an open printed circuit board for use in the motor control units of Feig Electronic (e.g. TRI CON and REL CON control units). A cube antenna can be connected to the receiver directly or an external antenna connected via coaxial cable. -
Page 3: Table Of Contents
Wireless Receiver E28Q 2 Table of Contents: Data summary and functions ....................... 2 1.1. Scope ..........................2 1.2. Functions ..........................2 1.3. Data backup ........................2 1.4. Symbols used ........................2 ... -
Page 4: Safety Instructions
Wireless Receiver E28Q 3 Safety Instructions 3.1. Basic safety instructions Work on the control unit - Switch off the supply voltage! - Only switch the voltage on again after you have checked all the connections. Mounting, installation, commissioning and maintenance - Solely by specialists, e.g. -
Page 5: Mounting Instructions
Wireless Receiver E28Q 4 Mounting instructions Work on the control unit may only be carried out with the device voltage-free! Danger of death due to electric shock! Non-compliance can lead to severe or fatal injuries. Disregarding these mounting instructions can... -
Page 6: Controls / Displays
Wireless Receiver E28Q 5 Controls / Displays "SET" key For teaching and deleting transmitters, see page 7 LED´s "OUT" - Blinking when learning. - During operation they indicate the channel status (on/off). - Flickers during deleting or if the radio signal of a previously taught transmitter is received. -
Page 7: Connection
Wireless Receiver E28Q 6 Connection Connect in accordance with the instructions for the motor control unit used and comply with the local regulations such as VDE, electricity generating company, etc. Never switch external voltage to the wireless receiver. If this is disregarded, the receiver will be destroyed immediately and the warranty loses its validity! Connect the cube antenna to Terminal 5 and direct it out of the housing. -
Page 8: Remote Learning/Remote Deleting
Wireless Receiver E28Q 7 Remote learning/Remote deleting In connection with the hand-held transmitters of the Q-series, this function permits teaching additional transmitters or transmitter keys and also allows removing previously learned codes without direct access to the receiver. During this process, a master transmitter takes care of the remote control. -
Page 9: Quicklearn-Standard
Wireless Receiver E28Q 7.1. QuickLearn-Standard Transmit keys K1-K4 Transmit display Function keys Fig.: S8Q-..04.. (4-channel transmitter) A hand-transmitter from the Q-series is designated as master, which is taught via the SET key, as slave any hand transmitter and as master a compatible hand transmitter that must be retaught. -
Page 10: Quicklearn-Group Functions
Wireless Receiver E28Q 7.2. QuickLearn-Group functions Transmit keys K1-K4 Group key Group LED´s 1 to 5 Function keys Fig.: S8Q-..15.. (Group transmitter) As master a hand-transmitter from the Q-series is designated, which is taught via the SET key, as slave any hand transmitter and as master a compatible hand transmitter, that must be retaught. - Page 11 Wireless Receiver E28Q Undo the most recent learning process (only within 5 minutes) Operation S8Q-..15.. (Group transmitter) Receiver E28Q Master All group LED´s are on, Press the function key selected group blinks. <3sec. Master Group LED´s 1, 3, 5 are on Press function key (>3sec).
-
Page 12: Data Backup
If there is no E28Q data on the add-on card, LED OUT K2 and LED OUT K1 blink together 4x. Back transferring is only possible if the data from an E28Q wireless receiver is on this add-on card.
