Summary of Contents for Diamond Lustre COBRA-H-DLC

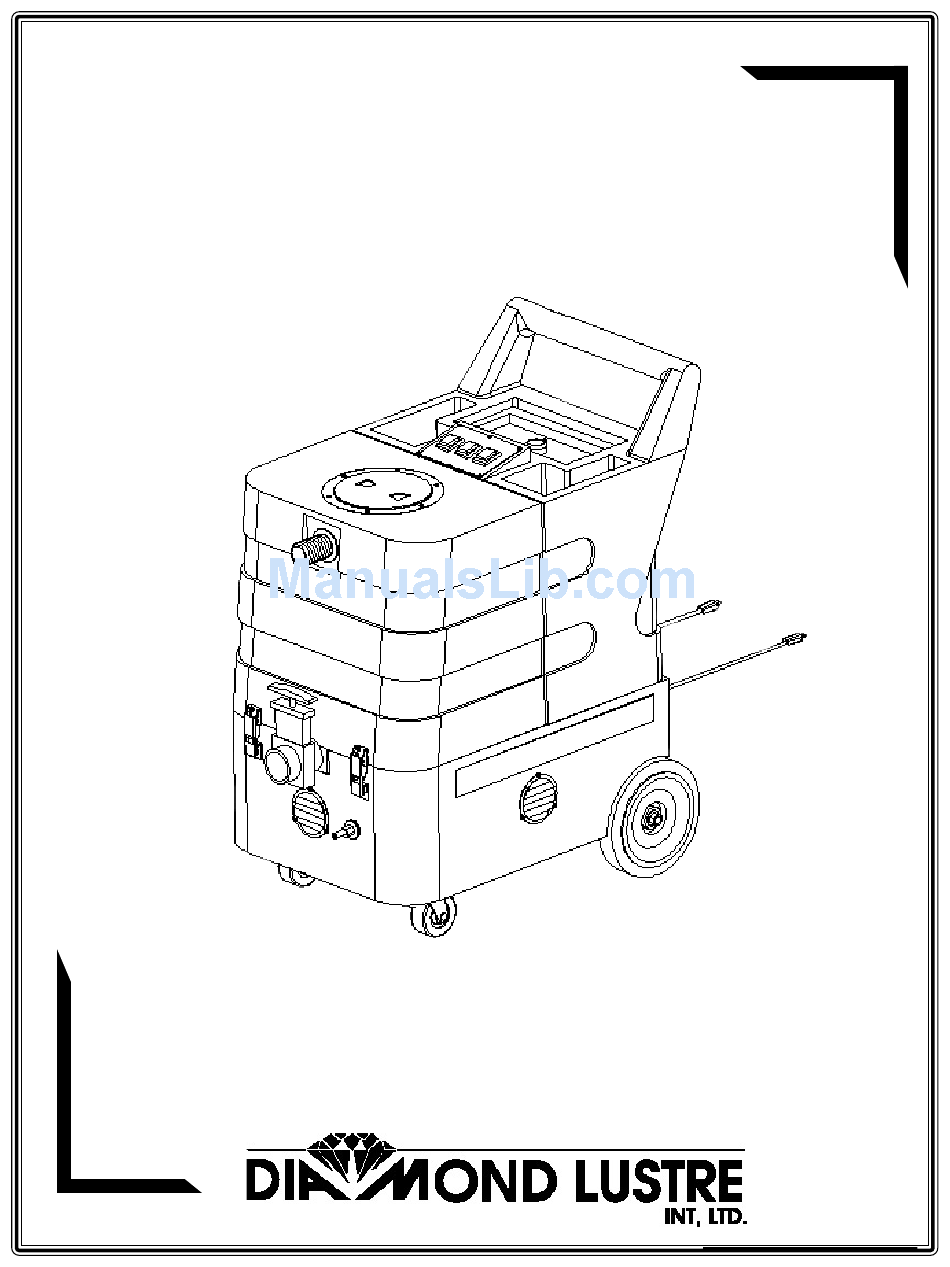

- Page 1 COBRA-H-DLC OPERATOR’S MANUAL COBRA-H-DLC 09/2003...
-
Page 2: Serial Number Plate
INTRODUCTION This manual will help you get the most from your Cobra-H-DLC. Read these instructions thoroughly before operating the machine. This product is intended for commercial use only. UNCRATING When the machine is delivered, carefully inspect the shipping carton and the machine for damage. If damage is evident, save the shipping carton so that it can be inspected. -
Page 3: Important Safety Instructions
Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present. • Connect to a properly grounded outlet only. See Grounding Instructions. • Liquid ejected at the spray nozzle could be dangerous as a result of its temperature, pressure or chemical content. COBRA-H-DLC 09/2003... -
Page 4: 120Vac Grounding Instructions
120VAC GROUNDING INSTRUCTIONS This machine must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 5: Machine Descriptions
Power Cords (10) - Two, 25 foot cords, rated 12 gauge, 3 wire. Do not use if either cord is damaged. The cord with the red sleeve operates the vacuum and the pump. The other cord operates the heat exchanger. COBRA-H-DLC 09/2003... -
Page 6: Operation
OPERATION Inspect the machine, hoses, and cleaning tools for cleanliness and completeness. Fill the Solution Tank with warm water. Using warm water may be a benefit in cleaning effectiveness, but do not use hot water (above 130 F+/ 54 C) in the tank. Add liquid cleaning solution with a pH °... -
Page 7: Maintenance
No power out of heat switch. Check power at Bi-metalic switch Follow troubleshooting steps to isolate the problem. Call your distributor. If you are unable to diagnose the problem, contact the company from which you purchased your Cobra-H-DLC COBRA-H-DLC 09/2003... - Page 9 COBRA-H-DLC 120V PART LIST ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION VT-5 Recovery Tank 2013 Gasket, vacuum motor 908A Latch MA-2 Manifold Screw, 8-32 X 5/8” 2002 Castor, 3” Locknut, 8-21 Bracket, axle mount 903D Drain Gate, female threads Axle Vacuum Inlet Hose Barb, 1-1/2"...
- Page 10 TECHNICAL SPECIFICATIONS: COBRA-H-DLC One, 3-Stage Vacuum Motor: Water lift: 137 Inches 16 amps, each cord Amp Draw: Tank Construction: Rotationally molded polyethylene Solution Tank Capacity: 10 Gal. (38 L) Recovery Tank Capacity: 10 Gal.(38 L) Application Flow: 100 psi Solution Hose Length: 15 Ft.
