AME MM-1 Installation Manual

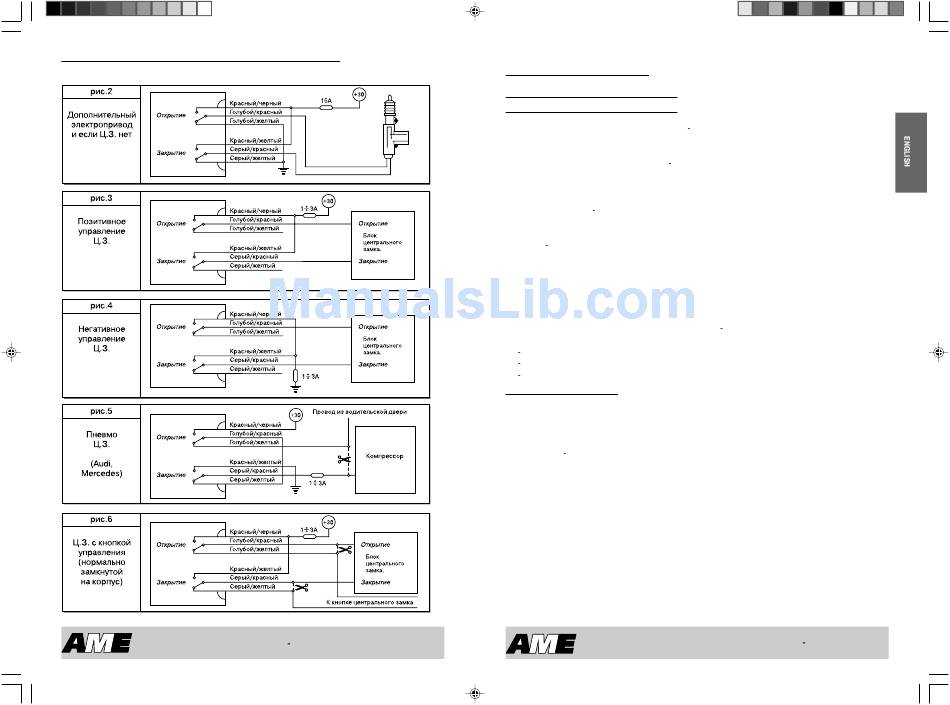

СХЕМЫ ПОДКЛЮЧЕНИЯ К ЦЕНТРАЛЬНОМУ ЗАМКУ
Инструкция по установке
AME MM 1 Автомобильная охранная система
Installation Manual
General recommendations
Before you begin the installation, disconnect the " " terminal of the car battery.
1. The main unit is to be installed inside the passenger compartment, away from sources of moisture and heat.
The alarm system main unit includes a built in shock sensor, so the fitting position of the main unit should be
chosen to provide maximal efficient of the shock sensor operation.
2. The siren is installed in the engine compartment or in another location inaccessible for a thief, with the megaphone
down or sideward. The location must be away from heat sources and protected from penetration of water. If
the siren has a back up battery, access to the service keyhole must be ensured.
3. The pin switches of the hood and trunk are mounted in locations protected from water and inaccessible when
the hood/trunk is closed.
4. All high power circuits should be fused for respective currents.
Kit Contents
Voltage
Current Consumption
RF Frequency
Working Temperature
Maximal Allowable Current via the Relay Contacts:
Immobiliser Relay
Indicators Relay
Central Door Lock Relays
System Programming
Remote Code Learning
The AME MM 1 has two transmitters in the standard kit, however the system can teach up to four transmitters
To increase a number of remote controls to control the alarm system fulfill the below procedure:
1. When the alarm system is disarmed enter the PIN Code.
a. Within 7 second switch the ignition on/off twice and then switch it on again.
b. The LED will be flashing quickly. After quick flashing the LED will flash in a rate of one flash per second.
c. Count a number of flashes equal to your PIN Code and switch the ignition off.
d. If the PIN Code is correct the alarm system with double beep will confirm the Remote Code learning
entered.
2. Press button 1 of each remote control you want to program to the system. One siren beep will confirm the
transmitter code is learnt.
3. To exit the Code Learning switch the ignition off and wait for 15 seconds, a double siren beep will confirm that
Code Learning has exited. NOTE: If you want to move to the Function Programming switch the ignition back
on before the double siren beep.
12
9...15V
20 mA
433,92 MHz
0
40...+85 C
20A
10A
15A
Installation manual
AME MM 1 Car Alarm System
