Summary of Contents for Fiberstars WPC-3

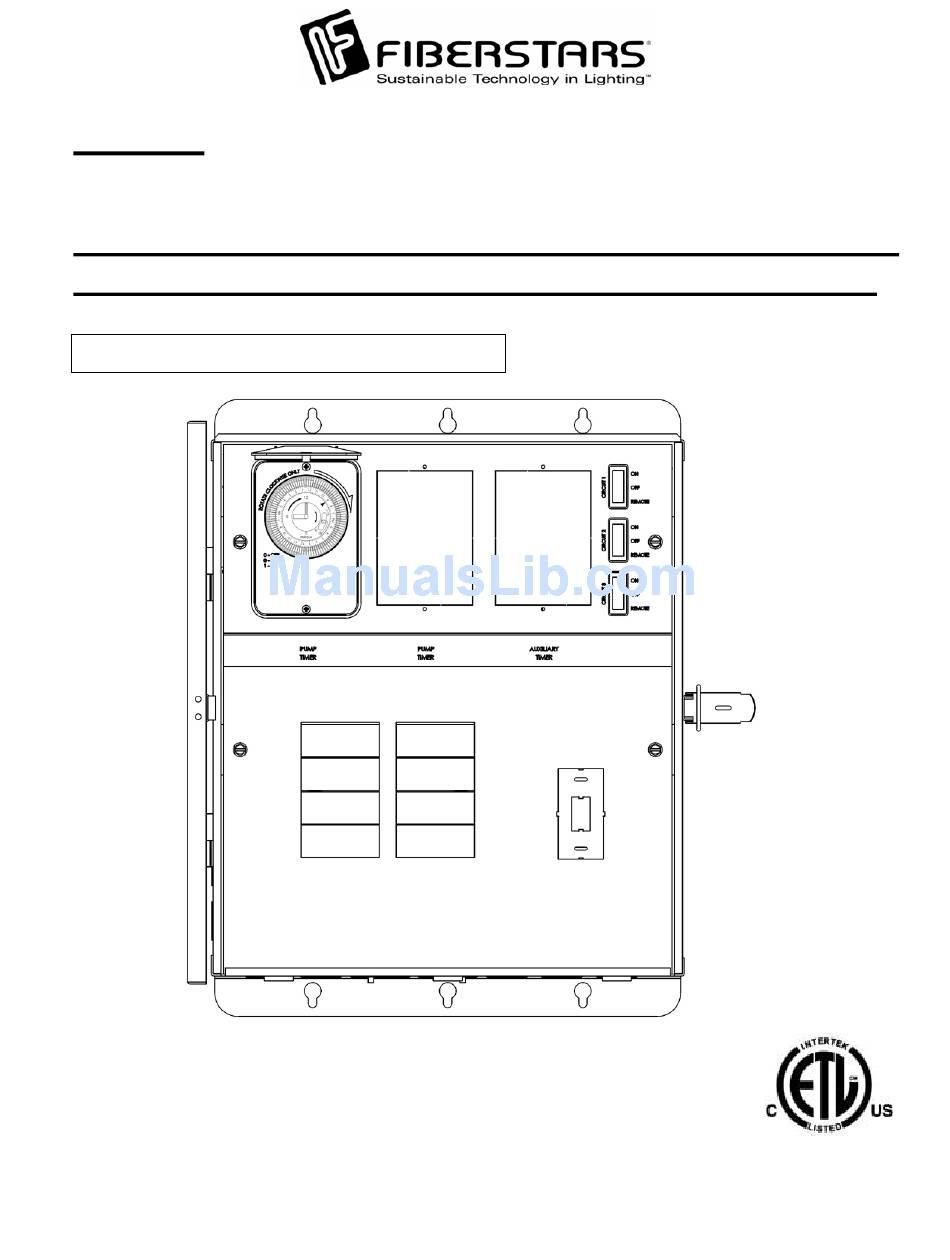

Page 1
WPC-3 Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications Installation Instructions: Read these instructions in their entirety before performing any installation work. FOR USE WITH POOL AND SPA PRODUCTS ETL LISTED Conforms to UL STD 508; Certified to CSA STD C22.2 No.
Page 2
The WPC-3 single speed consists of the following parts: Item Qty. Component part No. Description 94-15106-00 WPC-3 Enclosure 94-15089-00 WPC-3 Enclosure Door 37-15000-00 Relay 41-15004-12 12-Position Terminal Block 41-15004-05 5-Position Terminal Block 42-15032-00 Timer 02-15269-00 Load Center Cover Plate 02-15267-00...
Page 3
65 ft Repeater Cord Extension Kit WPC-2/3 ST GFCI Mounting Kit DL-HUB Direct Light Hub Connection Kit TC-2 Additional Timeclock/Dust Cover WPC-TRANS 24V Transformer for Fiberstars Light Streams LED Products or JVA Control http://www.fiberstars.com 79-15097-00 REV B Page 3 of 20...
1. A qualified electrician must install the WPC-3 in accordance to the National and Local Electrical Codes. 2. The WPC-3 must not be less then 5 feet (3 meters in Canada) from inside edge of pool. ONLY USE COPPER CONDUCTORS.
Page 5
Do not exceed the maximum electrical ratings of the WPC-3. A circuit breaker rated at 20Amps at 120VAC must installed in the breaker panel to connect to the WPC-3 power input. Circuit 1 and Circuit 2 are each rated for use of up to 8Amps @ 120VAC. The Pump Relay is rated at a maximum of 3HP @ 240VAC.
• VERIFY ALL ELECTRICAL RATINGS BEFORE INSTALLATION IS COMPLETE. LOCATION Install the WPC-3 enclosure using the mounting plates included with each enclosure. The WPC- 3 is housed in a Type 3R rainproof enclosure and can be mounted anywhere between the pool equipment and the breaker panel.
Page 7
NOTE: Do not exceed 8 Amps per circuit. NOTE: The WPC-3 is approved for use with the Intermatic Metallic Hub Kit (156PA14336A) and Fiberstars DL-HUB for direct connection of underwater lights. Refer to NFPA 70 Article 680 or C22.1 Section 68 for details.
Page 8
Circuit 3. Follow each products installation manual for proper installation. Run appropriately rated wires from the unit to the WPC-3 no less then 12 Gauge COPPER wires. Connect the Power to the Circuit 2 terminal at one end and to the BLACK wire on the Fiberstars unit.
Page 9
Connect a 240VAC Circuit Breaker to the Load Center. Wire the Relay from the 240VAC Circuit Breaker as illustrated. NOTE: 240V Pump not to exceed 30amps nor 3HP. 240V Circuit Breaker 240VAC Pump http://www.fiberstars.com 79-15097-00 REV B Page 9 of 20...
Page 10
TO 2 SPEED PUMP directly connected to the pump for 240V operation. NOTE: Pump Breaker MUST be turned OFF before servicing as 2 leg of 240V circuit is HOT at all time! http://www.fiberstars.com 79-15097-00 REV B Page 10 of 20...
Page 11
Heater. NOTE: The Heater circuit only completes the circuit of the Heater terminals when the 24V Valve control is energized to the NO Load circuit. TO HEATER TO HEATER http://www.fiberstars.com 79-15097-00 REV B Page 11 of 20...
Page 12
SINGLE SPEED INTERNAL WIRING SCHEMATIC FOR TEMPERATURE FOR USE WITH FREEZE PROTECT TC-2 OPTION SWITCH OPTION FOR TEMPERATURE FREEZE PROTECT SWITCH OPTION FOR USE WITH TC-2 OPTION http://www.fiberstars.com 79-15097-00 REV B Page 12 of 20...
Page 13
DUAL SPEED INTERNAL WIRING SCHEMATIC FOR TEMPERATURE FREEZE PROTECT SWITCH OPTION FOR USE WITH TC-2 OPTION FOR TEMPERATURE FREEZE PROTECT SWITCH OPTION FOR USE WITH TC-2 OPTION http://www.fiberstars.com 79-15097-00 REV B Page 13 of 20...
Page 14
Repeater Mounting The WPC-3 is equipped with a signal repeater that can be mounted up to 10 feet from the WPC-3 unit. This repeater receives signals from the wireless remote and sends that signal to the WPC-3 via the 10 foot cable. Establish a location for the Repeater that is in line of sight from where the wireless remote will be used most frequently and that is no more then 75 feet from furthest where the remote will be used.
Page 15
REMOTE position, simply use the wireless remote to turn OFF the units if desired. WIRELESS REMOTE OPERATION NOTE: The rocker switches on the WPC-3 must be set to REMOTE for wireless operation. The POWER ON/OFF buttons control the individual circuits independently.
Page 16
OPERATION INSTRUCTIONS FOR POOL/SPA COMBO OPTION WIRELESS REMOTE OPERATION NOTE: The rocker switches on the WPC-3 must be set to REMOTE for wireless operation. The SPA ON/OFF button actuates the JVA valves and the Filter pump as well as turn on the Heater. If the Filter pump is already...
Page 17
Timer tabs set to OFF position ON position Timer dial rotation direction indicator Current time and Timer function switch set point Single Speed Shown PM hours AM hours Timer function switch Timer dial http://www.fiberstars.com 79-15097-00 REV B Page 17 of 20...
Page 18
CODE ADJUSTMENTS If it is necessary to change the transmission code on the WPC-3 an adjustment to the two receivers AND the transmitter DIP switches must be performed. RECEIVER DIP SWITCHES – Turn OFF power to the WPC-3 from the circuit breaker on the Load Center or from Main Power.
Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 NOTE: ONLY CHANNELS 1 THROUGH 8 ARE AVAILABLE FOR THE WPC-3. Channel 8 Fourth (4 ) DIP switch DIP switch Optional Equipped Units WPC3-XXXX-1 : Single Speed with Freeze Protect.
Page 20
Low Speed). Pump Button turns ON High Speed pump regardless of timer position and activates the JVA valve. This unit is also equipped with a Freeze Protection device that will activate High Speed pump operation at 34°F and resume normal operation at 39°F. http://www.fiberstars.com 79-15097-00 REV B Page 20 of 20...
