OPTICAL ALIGNMENT (COLLIMATION)
You should occasionally check and adjust
the optical alignment
This procedure is called collimation, and is
recommended for optimum
performance. To check the alignment of your
telescope:
1. Remove the dust covers for the objective and
focuser and look into the focuser drawtube.
2. Point the telescope at a lit wall indoors and
look into the focuser drawtube. You should
see the secondary mirror and a reflected
image of the primary mirror.
3. Center your eye in the drawtube. You can
reference the center mark on the primary
mirror shown in the figure. The reflected
image of the primary and
mirrors should be centered to one another,
with your eye at the very center of the view,
see figure. If the reflections do not look
aligned, some adjustment will be needed
(Figure 6).
Center Mark on
Reflection of
Secondary
Mirror
Focuser
Drawtube
10
SCIENTIFICSONLINE.COM | 1.800.728.6999 SCIENTIFICSONLINE.COM | 1.800.728.6999
of your telescope.
ASTROSCAN
secondary
Primary Mirror
Secondary Mirror
Offset (Should look
slightly off-center
towards the right)
Secondary
Primary
Mirror

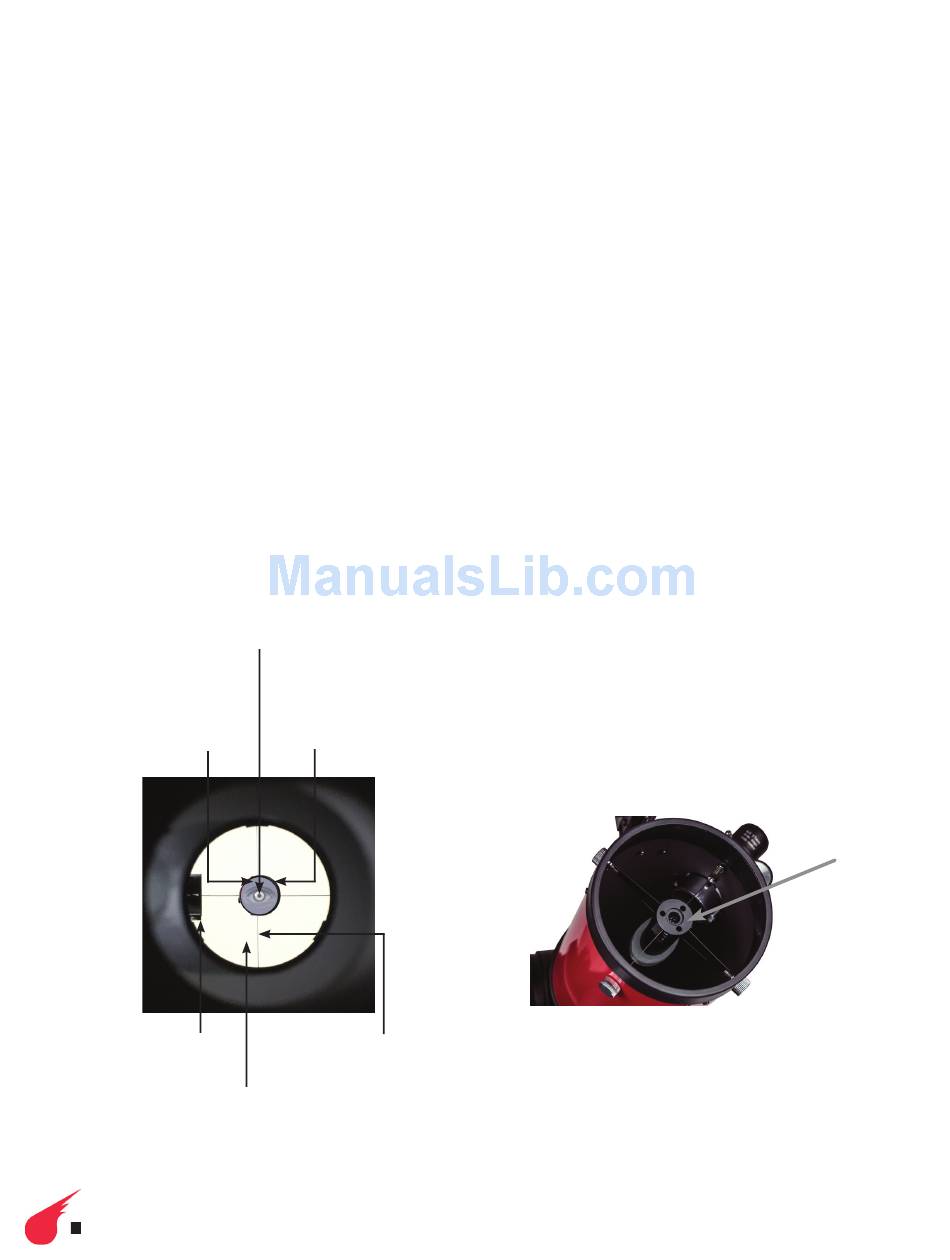

Figure 6
This is a quick reference to collimating
your telescope. Normally a technician would
use a collimation eyepiece for best results, but
this procedure is fast and effective without a
collimation eyepiece.
®
Tools required:
• Phillips head screwdriver
• 2mm hex key (not included)
SECONDARY MIRROR ADJUSTMENT
If the center mark on the primary mirror does not
appear to be in the center of your view:
Using a standard 2mm hex key wrench, make
small adjustments to the three hex-head screws
to change the tilt of the secondary mirror so that
the primary mirror center mark is in the center of
the view (Figure 7).
Do not adjust the center Phillips head screw.
This holds the secondary mirror onto the
telescope! This can be adjusted, taking caution
not to rotate the secondary mirror, but we
do not recommend making this adjustment.
Consult a telescope expert to learn more about
additional collimation methods.
Support
Vanes
Alignment Set
Screws (3)
Figure 7
