Summary of Contents for KVMSwitchTech HDMI-CATSPU-4

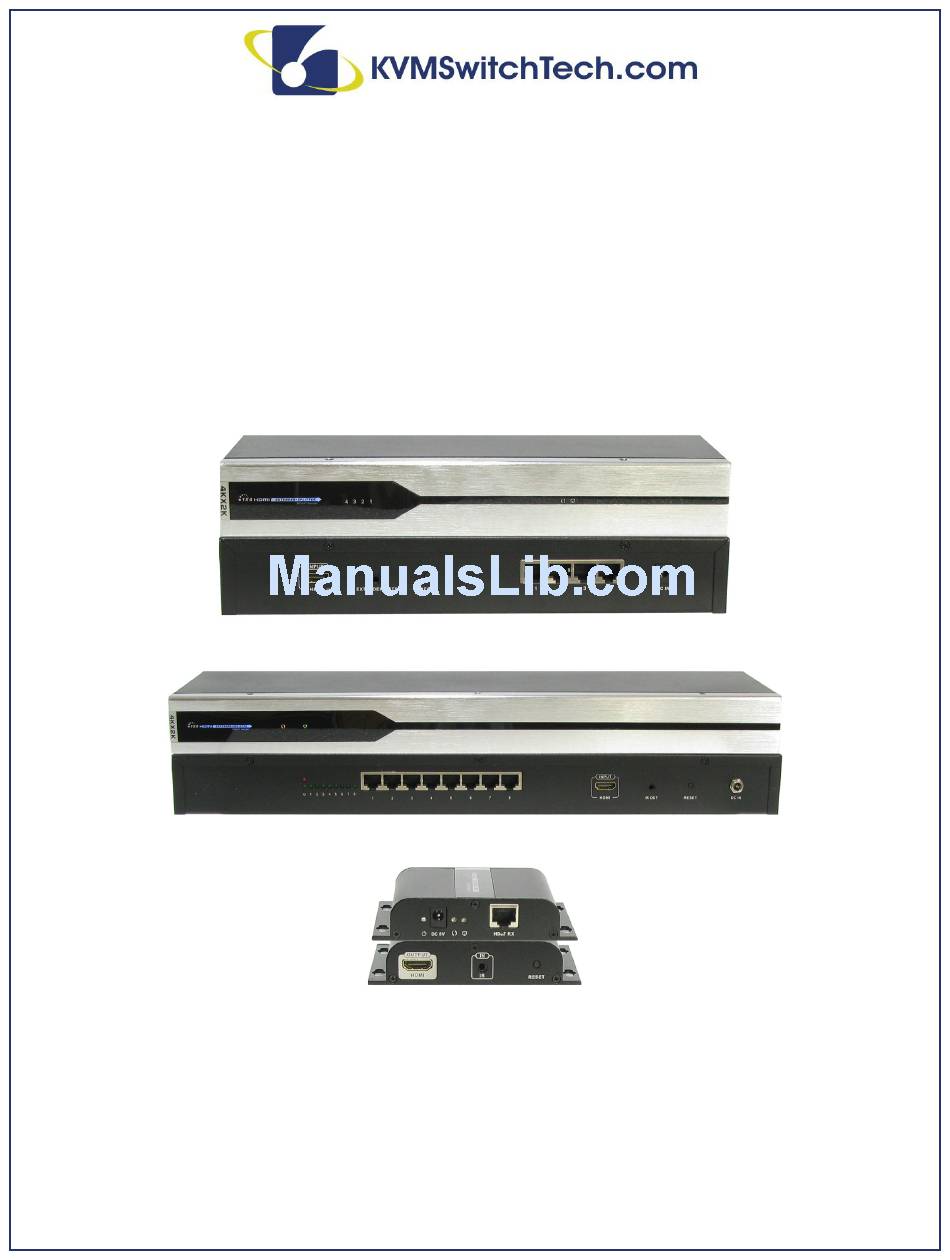

- Page 1 HDMI-CATSPU-X HDBitT 1x4 / 1x8 HDMI Extender Splitter Over CAT5/5e/6 INSTRUCTION MANUAL HDMI-CATSPU-4 HDMI-CATSPU-8 RECEIVER 118 W. Streetsboro Street, Ste. 125 | Hudson, OH 44236 | Toll Free: (866) 865-7737...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
- Page 3 We assume no responsibility for any make sure the following items are contained in the shipping carton: infringements of patents or other rights of third parties which may • HDMI-CATSPU-4 HDMI Extender Splitter result from its use. • (4) IR Blaster Extension Cables We assume no responsibility for any inaccuracies that may be •...
- Page 4 FEATURES & SPECIFICATIONS FEATURES • Supports (1) HDMI Input to (4) or (8) HDbitT outputs • Up to ~394 ft/120M transmission distance over a single CAT6 cable (high quality cable can reach ~492 ft/150M) • Compatible with a receiver devices which support HDbitT transport protocol •...
- Page 5 Panel descriptions HDMI-CATSPU-4 FRONT PANEL SIGNAL LINK LED DATE TRANSMISSION INDICATOR CONNECTION INDICATOR BACK PANEL POWER INPUT (DC5V) RJ-45 OUTPUT RESET BUTTON IR BLASTER EXTENSION PORT HDMI INPUT HDMI-CATSPU-8 BACK PANEL POWER INDICATOR CONNECTION INDICATOR SIGNAL LINK LED RJ-45 OUTPUT...
- Page 6 Connection & operation Application Example network cable Follows the standards of IEEE-568B: 1- Orange/white 2- Orange 3- Green/white 4- Blue 5- Blue/white 6- Green 7- Brown/white 8- Brown Connection HDMI-CATSPU-4...
- Page 7 Connection Connection HDMI-CATSPU-8...
- Page 8 TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER KVM Switch Tech, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
