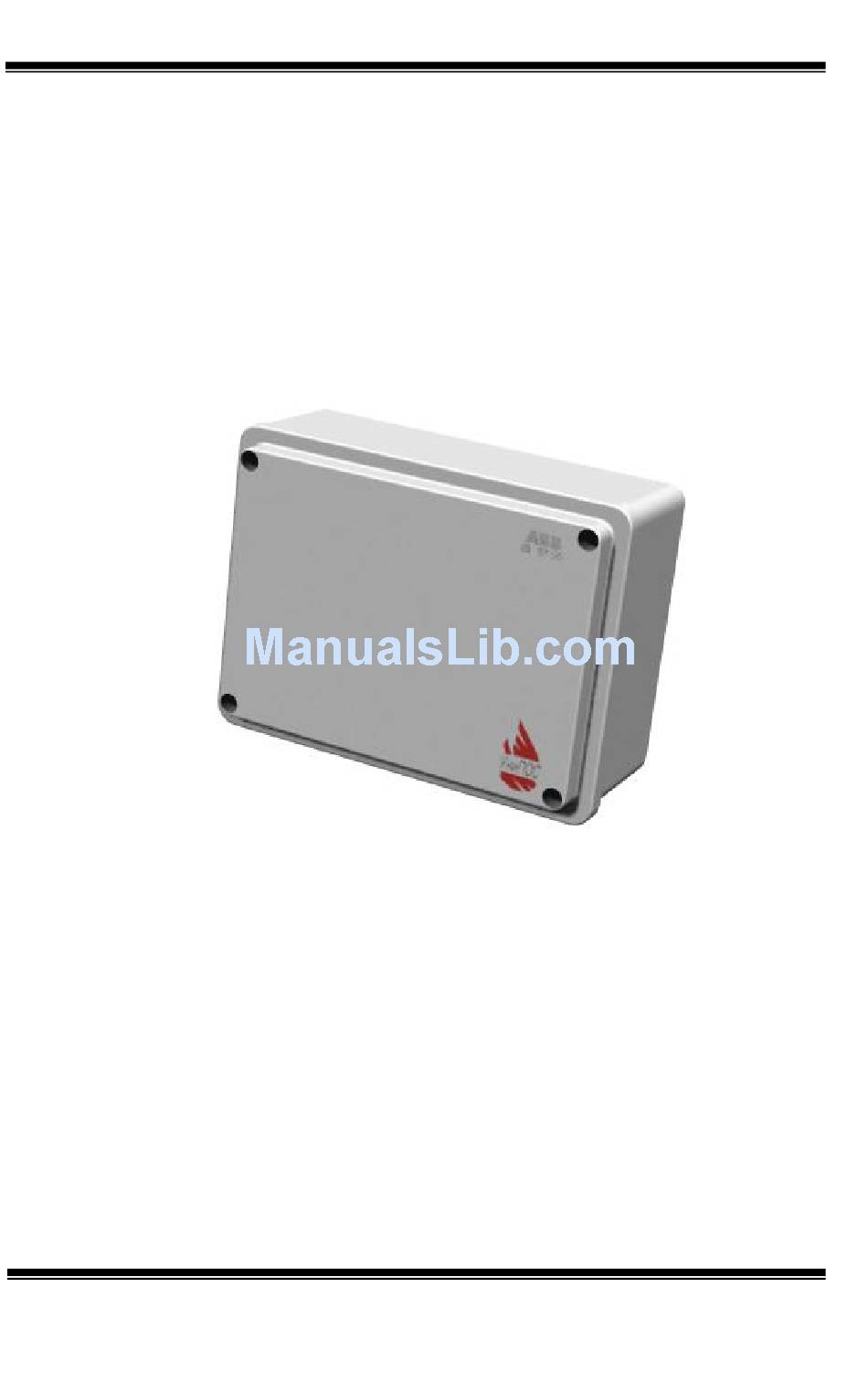

- Page 1 UniPOS Lightning Protection Unit LIGHTNING PROTECTION UNIT Type DNP508; DNP5082 Instruction Manual (Revision.4/03.17) Instruction Manual page 1 Revision 4 pages 4...
- Page 2 3.2. Functionality When lightning strikes, DNP508 limits the maximum voltage of the line to 150/180V, and the terminals of the Control Panel to 46V for DNP508 (and 72/53V for DNP5082). INSTALLATION Mount the base of DNP508 (DNP5082) to the wall by means of dowels and self- tapping screws.
- Page 3 UniPOS Lightning Protection Unit Fig.1 power loop loop 1 loop 2 power loop loop 1 loop 2 Fig.2 4.1.3. Performing Installation: - for lines / loops - by means of wire (0.8-2.5)mm - for grounding - by means of wire (1.5-2.5)mm...
- Page 4 UniPOS 47, “San Stefano” Str., 5800 Pleven, BULGARIA phone +359 64 891111, +359 64 891 100, fax +359 64 891 110 e-mail: office_pleven@unipos-bg.com Mladost 1, bl.79B, entr.2, ap.17, 1784 Sofia, BULGARIA phone/fax +359 2 9744469, +359 2 9743925 e-mail: office_sofia@unipos-bg.com www.unipos-bg.com...
