VEHICLE SAFETY
PreView® Side Defender™
SDR8503 & SDL8503
System Operating Manual
www.aps-supply.com
APS USA
610 Gateway Center Way, Suites J & K
San Diego, CA 92102 USA
P: 1 619 263 4164
F: 1 619 263 6814
APS Australia
APS: Singapore
Unit 1, 72 Kent Way
Malaga WA 6090 Australia
P: 61 (8) 9248 4419
F: 61 (8) 9248 4901
APS-SUPPLY.COM
Colombia
Chile
Perú
Brasil
Advertisement
Table of Contents
Related Manuals for Preco PreView Side Defender SDR8503
Summary of Contents for Preco PreView Side Defender SDR8503

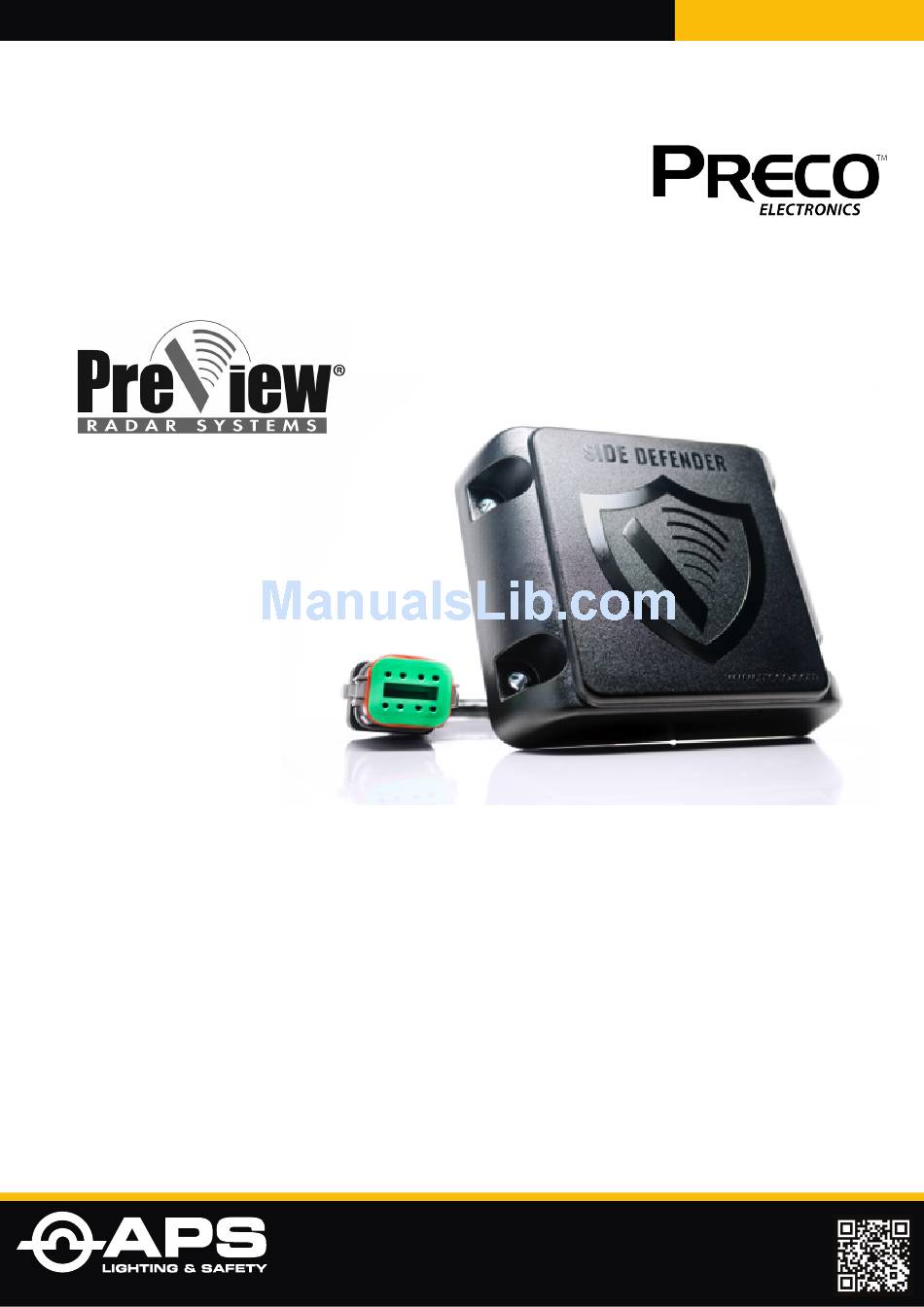

- Page 1 VEHICLE SAFETY APS-SUPPLY.COM PreView® Side Defender™ SDR8503 & SDL8503 System Operating Manual APS USA APS Australia APS: Singapore 610 Gateway Center Way, Suites J & K Unit 1, 72 Kent Way Colombia San Diego, CA 92102 USA Malaga WA 6090 Australia Chile Perú...
- Page 2 VEHICLE SAFETY APS-SUPPLY.COM APS USA APS Australia APS: Singapore 610 Gateway Center Way, Suites J & K Unit 1, 72 Kent Way Colombia San Diego, CA 92102 USA Malaga WA 6090 Australia Chile Perú P: 1 619 263 4164 P: 61 (8) 9248 4419 Brasil www.aps-supply.com F: 1 619 263 6814...
- Page 3 VEHICLE SAFETY APS-SUPPLY.COM FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Product Description
Product Description The PreView® Side Defender™ radar is a small, rugged radar sensor designed by Preco® Electronics for side blind zone object detection in heavy duty over- the-road applications. When combined with an in-cab display, it alerts drivers to objects in the side blind zones of heavy trucks, busses, waste trucks, utility trucks, fire/ambulance and other heavy and medium-duty on-road vehicles. - Page 5 APS-SUPPLY.COM The sensor frequency band is legal throughout most of the world, but check with PRECO® Electronics or your country’s regulations before purchasing. The Side Defender™ radar works in adverse weather conditions, has a wide operating temperature range, is sealed to meet IP69K, withstands high vibration and shock levels, and is maintenance free.
- Page 6 VEHICLE SAFETY APS-SUPPLY.COM The Side Defender™ radar sensor performance is not affected by other PreView® Side Defender™ radar or similar sensors operating in close proximity with each other. Other Sensor Features The Side Defender™ radar has a continuous Built-In-Self-Test (BIST) that notifies the operator display of sensor failure within a fraction of a second.
- Page 7 PreView® In-cab LED display using this interface. CAN-Bus Inputs If the truck/bus speed is available via CAN-bus message, the Side Defender™ Radar can support certain J1939 vehicle speed messages (contact PRECO® Electronics for more information). CAN-Bus Outputs The Side Defender™...
-
Page 8: System Operation
This output is an Active Low (switch to ground). One example use of this output is to drive an LED indicator in a side mirror when there is an object in the side blind zone. Contact PRECO® Electronics support for more information. System Connections Locate the vehicle’s ignition power wire and connect to the red wire on the sensor... -
Page 9: Technical Data
VEHICLE SAFETY APS-SUPPLY.COM At speeds above 10mph (16kph), the system ignores stationary objects. At speeds below 10mph (16kph), the system will deactivate and not report on any objects. Technical Data The following figures provide the dimensions and specifications for the PreView® Side Defender Radar™... - Page 10 VEHICLE SAFETY APS-SUPPLY.COM Figure 6. Deutsch Connector Pin Out APS USA APS Australia APS: Singapore 610 Gateway Center Way, Suites J & K Unit 1, 72 Kent Way Colombia San Diego, CA 92102 USA Malaga WA 6090 Australia Chile Perú P: 1 619 263 4164 P: 61 (8) 9248 4419 Brasil...
- Page 11 VEHICLE SAFETY APS-SUPPLY.COM Measuring Performance Range: Detection Zone as shown above – 10’ (3m) x 40’ (6m) Range Accuracy: 0.3m Azimuth Field of View: ±75 degrees (10dBsm target) Elevation Field of View: ±10 degrees (10dBsm target) Angle Accuracy: ±2° @ ±10° FOV, ±5 @ ±30° FOV, ±10 @ ±75° FOV Velocity Range: ±...
-
Page 12: Regulatory Compliance
The PreView® Side Defender™ radar is compliant with the following countries/ regions and their regulations as of the published date of this manual. The sensor may be compliant in other countries/regions. Please check your local regulations or contact PRECO® Electronics for support. • United States - FCC- Part 15.249 •... -
Page 13: Installation
VEHICLE SAFETY APS-SUPPLY.COM Installation Sensor Mounting The Side Defender™ radar mounting location is important for proper system operation. Ideally the sensor should be mounted on the side of the vehicle between 18” (45cm) and 24” (61cm) above the ground, as measured from level ground to the bottom of the sensor. - Page 14 VEHICLE SAFETY APS-SUPPLY.COM Figure 9. Vertical and Horizontal Angle Mounting Tolerances The performance of the sensor can be negatively impacted if the sensor is angled down, causing false detection from the ground. Any time the sensor is not perpendicular to the ground, the performance should be tested. Keep Out/Interference Zones Metallic and any other strong radar reflecting objects must remain outside of the keep out zones defined in Figure 1.
- Page 15 Sensor Mounting Procedure PRECO® Electronics supplies a 90 degree mounting bracket for the Side Defender™ radar. If the provided 90°bracket is not appropriate, please contact PRECO® Electronics If mounting directly to the vehicle, follow the procedure outlined below.
-
Page 16: Initial System Power Up And Test
If possible, move the sensor so it is not detecting the object(s). If it is not possible to relocate the sensor, consult PRECO® Electronics. If for some reason the system is malfunctioning, the status LED and detection LED will flash in unison and the buzzer will emit a short stuttering sound. -
Page 17: Troubleshooting
VEHICLE SAFETY APS-SUPPLY.COM Troubleshooting Display Status LED is not illuminated: • Verify that DC power (9-33V) is applied to the sensor. • Verify that the cable between the sensor and display is connected. Display Status LED and Detection LED are flashing: •... -
Page 18: Object Detection Capability
VEHICLE SAFETY APS-SUPPLY.COM Object Detection Capability The PreView® Side Defender™ radar system is a blind spot collision warning system designed to supplement other safety practices and/or devices. The machine operator is always the first line of defense when safely operating a vehicle. -
Page 19: Owner Responsibilities
VEHICLE SAFETY APS-SUPPLY.COM Figure 11. Object Reflection Notes on Safety and Risks Owner Responsibilities The owner is responsible for ensuring that the device (and equipment) are used for their intended purpose, for the actions of the employees, for giving instruction to the employees, and for the operational safety of the equipment. - Page 20 VEHICLE SAFETY APS-SUPPLY.COM PreView® Side Defender™ Daily Maintenance Detach this page and place with daily operator maintenance procedures. Safety Message to Operators of Vehicles with PreView® Side Defender Radar Systems The PreView® Side Defender™ Radar system is intended as an Object Detection System and should not be relied upon as your first line of defense for the safe operation of the vehicle.
-
Page 21: Testing And Maintenance
After the test the assistant needs to communicate to the operator the details on the detection zone. For questions, call +1.844.787.2327 toll free in the USA. Call +1.208.323.1000 or send a fax request to +1.208.323.1034 for outside the USA, or submit an online request at www.preco.com/contact-us/ A safety specialist will respond within 24 hours. -
Page 22: Warranty Information
VEHICLE SAFETY APS-SUPPLY.COM Warranty Information MANUFACTURER STANDARD LIMITED WARRANTY AND LIMITATION OF LIABILITY Manufacturer warrants that on the Date of Purchase this Product will conform to Manufacturer’s published specifications for the product, which are available from Manufacturer on request, and Manufacturer warrants that the product is free from defects in materials and workmanship. - Page 23 VEHICLE SAFETY APS-SUPPLY.COM NOTES APS USA APS Australia APS: Singapore 610 Gateway Center Way, Suites J & K Unit 1, 72 Kent Way Colombia San Diego, CA 92102 USA Malaga WA 6090 Australia Chile Perú P: 1 619 263 4164 P: 61 (8) 9248 4419 Brasil www.aps-supply.com...
- Page 24 VEHICLE SAFETY APS-SUPPLY.COM NOTES APS USA APS Australia APS: Singapore 610 Gateway Center Way, Suites J & K Unit 1, 72 Kent Way Colombia San Diego, CA 92102 USA Malaga WA 6090 Australia Chile Perú P: 1 619 263 4164 P: 61 (8) 9248 4419 Brasil www.aps-supply.com...
