AST AL390 Operation Manual

Highly Accurate Non-Contact Pyrometer With Analogue Output and Digital Interface
300°C to 1400°C

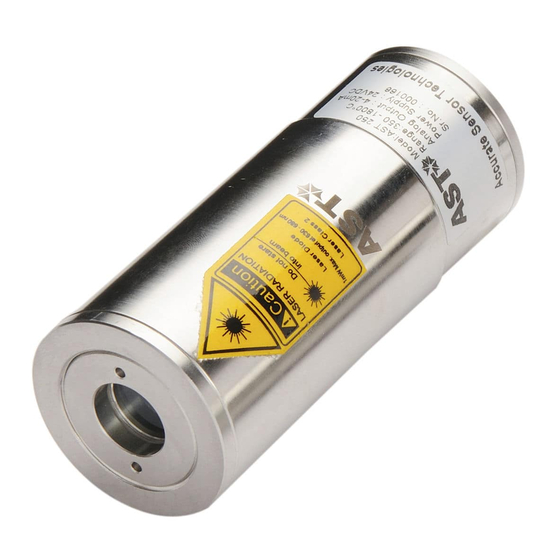

AL390 IR Pyrometer model provides the advantage of noncontact temperature
measurement of metallic surfaces and in flame heated furnaces i.e through
flames and flue gas. At a wavelength of 3.9um hot furnaces gases and clean
burning gas flames are quite transparent and therefore permit temperatures of
substances to be measured as well during heating up process in industrial
furnaces with the use of infrared Pyrometer AL390.This format combines the high
accuracy of digital signal processing with the simple connection. AL390 IR
Pyrometer is used for target temperature ranging from 300°C to 1400°C. The
electronic assembly is protected by IP65 rugged stainless steel housing. AL390
IR Pyrometer is provided with USB 2.0 for parameter setting & Data Logging.

Technical specifications

AL390
Model
Temperature Range
300°C....1400°C
(Analog sub-range
adjustable)
Spectral Range 3.9 µm
Photodetector Type Thermopile
50:1
Distance to Spot Size Ratio
Emissivity (ε) 0.1....1.2 adjustable
Response Time 60 msec adjustable upto 10sec
T < 500°C ,± 1.5% of measured value
T ≥ 500°C, ± 1% of measured value
Accuracy
(The instrument must be at constant ambient
temperature for minimum 25-30 mins in power on
condition)
Repeatability 0.3% of reading in °C +1°C
Sighting Option Laser Pilot Light (PL)
Analog Output 0-20mA,4-20mA,0-10V (User selectable)
USB 2.0
RS-232/RS-485 (User selectable)
Digital Output
*At a time only one digital output possible
0°C.......70°C
Operating Temp. Range
0°C.....200°C (With water cooling jacket)
Storage Temp. Range -20°C...70°C
Emissivity, Response Time, Clear Time(Peak Picker),
Adjustable Parameters and Analog Output, Analog Scale (Sub Range) , Unit Of
Features via Software Temperature(°C/°F), Communication mode
(Comm.mode), Record feature etc
Power Supply 24V DC
Power Consumption Max 2.5 watt
Laser Power <1 m watt
Protection Class IP65
Housing
Stainless Steel
Power supply,*Digital output and Analog output are
Isolation galvanically islolated against each other
* Not applicable for USB 2.0 digital output
Operating Humidity 10-95%, Non-Condensing Conditions
600g
Weight & Dimensions
Dia= Ø 49.5 mm; Length=118mm
We measure accurate
Accurate Sensors Technologies Accurate Sensors Technologies
temperature

Features

Highly Accurate due to digital linearization of the output
Ÿ
Temperature range from 300°C....1400°C
Ÿ
Spectral range 3.9 µm
Ÿ
Four wire form with Analog output 4...20mA or 0...20mA or
Ÿ
0...10V
Serial communication RS-232/RS-485
Ÿ
Response time 60 ms
Ÿ
Very good stability
Ÿ
Laser Targeting for precision targeting
Ÿ
User friendly Software
Ÿ

Standard Scope of Supply

Pyrometer with Laser pilot light(PL)
Ÿ
Analog output 4...20mA, 0..20mA, 0..10V
Ÿ
Digital USB 2.0 output, USB Cable
Ÿ
Digital Interface RS-232 / RS-485
Ÿ
5 mtr long connection cable with connector
Ÿ
1.5 mtr. Communication Cable
Ÿ
Calibration certificate, Software & Operation manual
Ÿ

Optional

Mechanical& Electrical Accessories
Ÿ
Extra Cable lengths
Ÿ

Applications

Measurement Through Flames & Combustion Without
Ÿ
Influencing The Measurement.
in extreme conditions
AL390
