This procedure describes how to connect video and power cables, and attach the
touchscreen display to TOPAZ. Before you begin:
Read this procedure before you set up TOPAZ
Determine where you are going to set up and use TOPAZ
Make sure you have a clean, flat, sturdy surface to assemble TOPAZ
A fully assembled TOPAZ weighs approximately 46 lbs. / 21 kg. Use caution
when unpacking and lifting TOPAZ and the touchscreen. Get assistance if
you need help lifting and holding the display.
Familiarize yourself with the touchscreen video and power connectors
No tools are needed to assemble TOPAZ
Setting Up TOPAZ
CAUTION: The TOPAZ is heavy. Get assistance if you need help moving it.

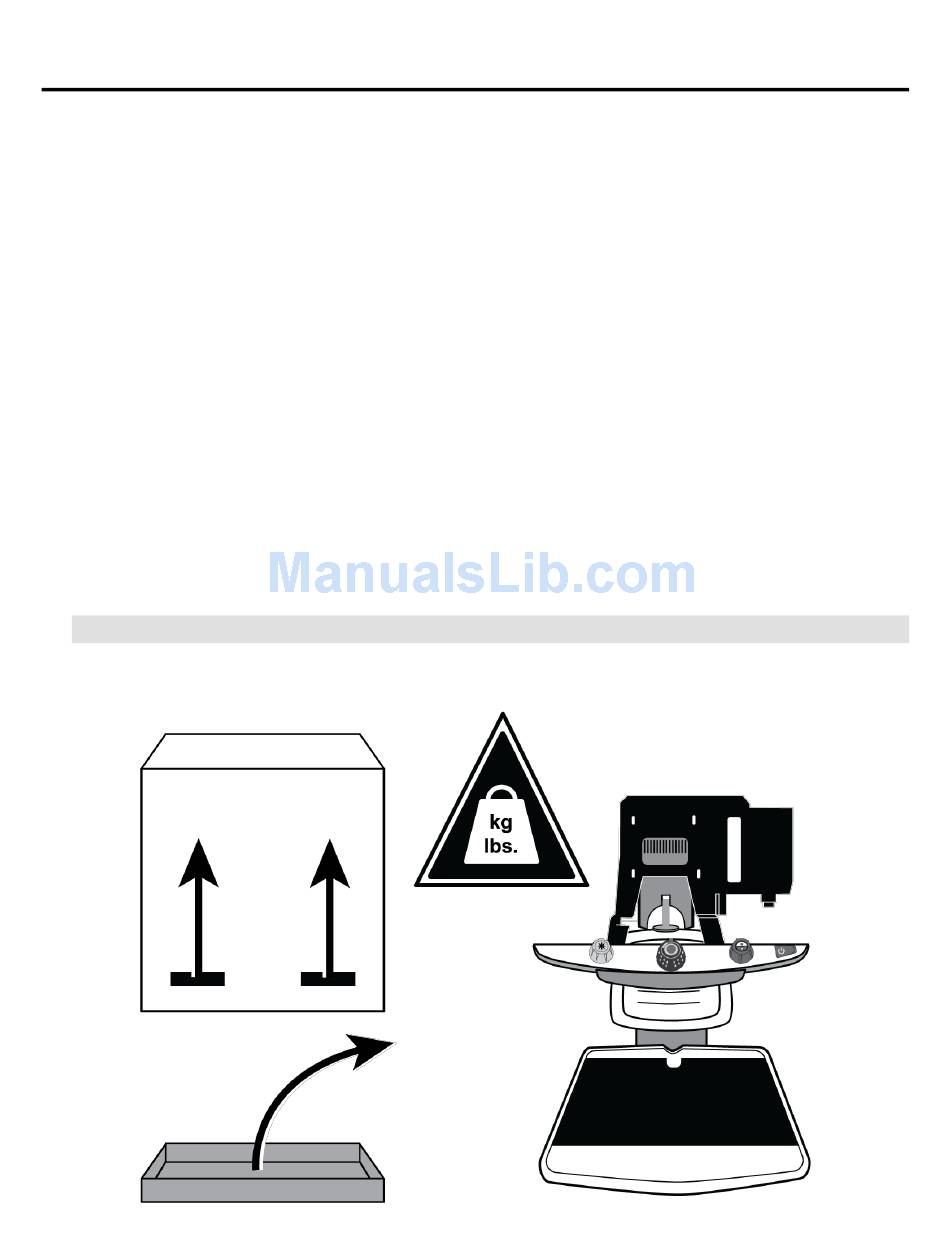

Step 1. Unpack TOPAZ and place it on a flat, sturdy surface.
Assembling the TOPAZ OCR
440944-001 – Revision A
Advertisement
Related Manuals for Topaz OCR
Summary of Contents for Topaz OCR
- Page 1 Determine where you are going to set up and use TOPAZ Make sure you have a clean, flat, sturdy surface to assemble TOPAZ A fully assembled TOPAZ weighs approximately 46 lbs. / 21 kg. Use caution when unpacking and lifting TOPAZ and the touchscreen. Get assistance if you need help lifting and holding the display.
- Page 2 USB, and LED Flash. Place the cables through the large opening in the monitor bracket (1). Step 3. Place the 12V DC power cable (2) across TOPAZ so that it rests between the control panel and the monitor bracket (with the other cables).
- Page 3 CAUTION: The touchscreen display is heavy. Get assistance if you need help moving it. Step 1. Unpack the display and place it face down on a clean flat, sturdy surface. Step 2. Remove the four thumbscrews from the back of the display, and set them on the TOPAZ XY table.
- Page 4 Step 3. The display’s video and power connectors are on the bottom of the display. Familiarize yourself with the location of these connectors. This will be helpful when later connecting video and power cables. HDMI connector (1) USB connector (2) ...
- Page 5 Connecting Cables and Securing the Touchscreen Display Important: Make sure the video and power cables are out of the way before placing the display on the control panel.
- Page 6 CAUTION: The display is heavy. Get assistance if you need help lifting and holding it in place. Step 1. Pick up the display so that it is facing you, and then place its bottom edge on the top of the control panel.
- Page 7 Step 3. With the display resting on the control panel, connect the following cables to the connectors on the bottom of the display: HDMI cable (1) USB cable (2) LED Flash cable (3) 12V DC power cable (4)
- Page 8 Step 4. Carefully pivot and raise the display (1) so that its back is resting against the monitor bracket and its bottom is resting on the control panel (2). Important: Make sure the video and power cables are clear and not squeezed between the back of the display and the...
- Page 9 XY table. Insert the four thumbscrews through the screw slots on the bracket and the screw holes on the back of the display. Tighten the four thumbscrews. This completes assembly of the TOPAZ OCR.
- Page 10 LED reading light on the right side of TOPAZ. Step 3. Press the green standby power switch on the right side of the control panel. For more information about using TOPAZ, refer to the TOPAZ OCR User Guide.
