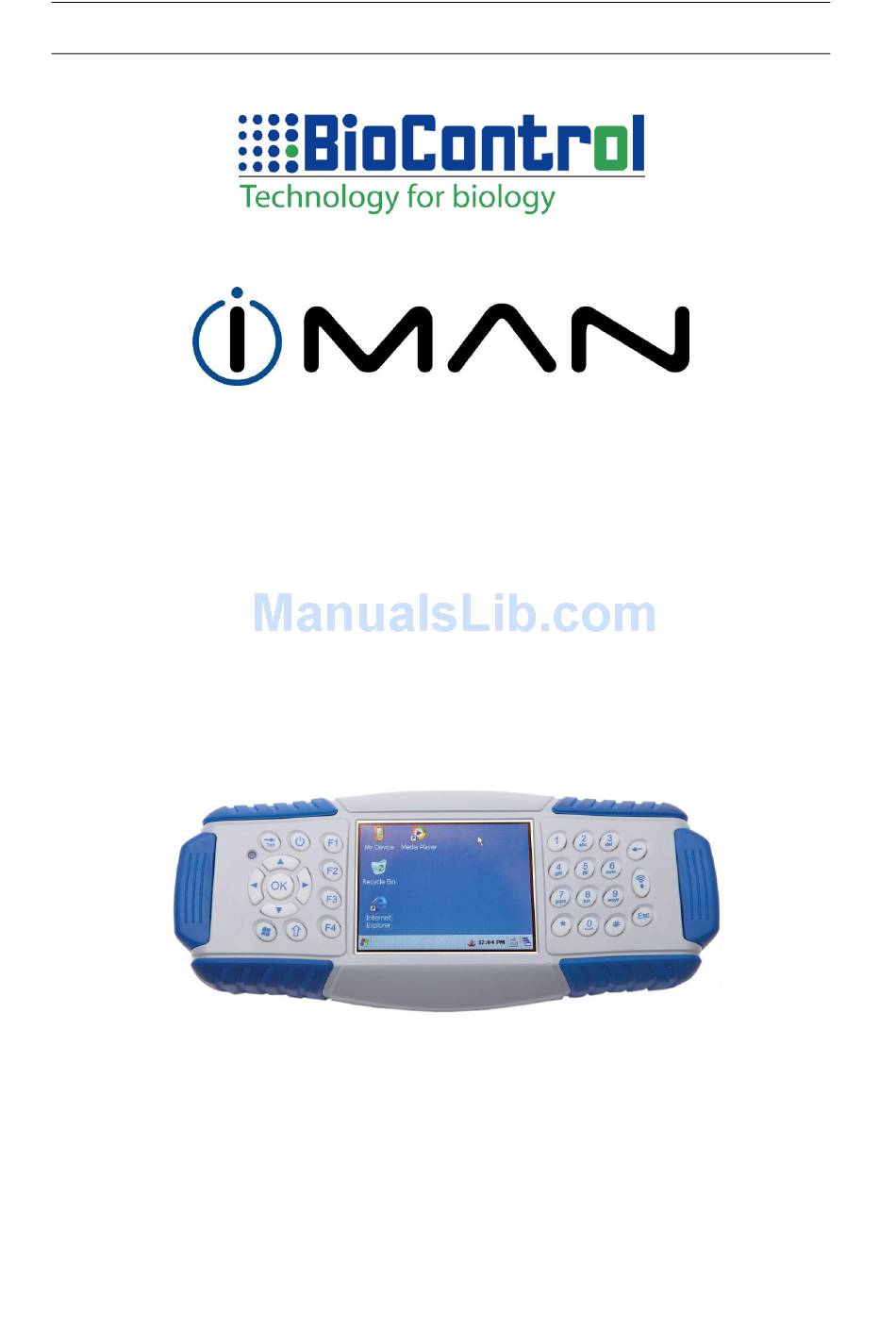

- Page 1 Documentation for iMan www.biocontrol.no D10G1.1 iMan Terminal Manual January 2013...
- Page 2 Note: All information in this document describes product and details ‘as is’. BioControl can not be held liable for (consequences of) incorrect or missing information in this document. Check our website for latest version of this document and information on this product.
- Page 3 Jan-2013 Page 3 of 11 D10G1.1 iMan Terminal Manual...
- Page 4 Open Terminal application using the link on the iMan Menu: When application starts, Settings tab will show various configuration options: Here you can choose the serial port settings through which you will start transmission. Jan-2013 Page 4 of 11 D10G1.1 iMan Terminal Manual...
-
Page 5: Sending Text Messages
To send a message just type it in white box at the bottom of window. When you click on box, virtual keyboard should appear: After typing text, press [Enter] key or click Send button to send it via serial port. Jan-2013 Page 5 of 11 D10G1.1 iMan Terminal Manual... - Page 6 To enter binary mode – first you need to expand combo box around lower left corner of Console tab and select ’BINARY’ option: When you click on selected (BINARY) mode, Binary command input window will appear: Jan-2013 Page 6 of 11 D10G1.1 iMan Terminal Manual...
- Page 7 ASCII mode in main application window – you can type any text but also by use of escaping sequence any raw bytes you like. The following two images show data of the same command in different representation: Jan-2013 Page 7 of 11 D10G1.1 iMan Terminal Manual...
-
Page 8: Sending Commands
\Program Files\COM_Messenger\). To access Command selection window, you need to switch to ’COMMAND’ mode. To do so, click on combo box around lower left corner of Console tab and select ’COMMAND’ option; window will appear: Jan-2013 Page 8 of 11 D10G1.1 iMan Terminal Manual... - Page 9 There you can input command representation just like in 3. Sending binary messages paragraph. After forming new command click on OK button and Command edit window will appear: Jan-2013 Page 9 of 11 D10G1.1 iMan Terminal Manual...
- Page 10 To remove command: select its category, then command to remove and click on Delete button. Note: After adding or removing command, changes are automatically written to commands.csv file. Jan-2013 Page 10 of 11 D10G1.1 iMan Terminal Manual...
- Page 11 To change command associated with button, hold [Ctrl] key on keyboard and then click on the command button which you want to modify – this will cause Command selection window to appear. Jan-2013 Page 11 of 11 D10G1.1 iMan Terminal Manual...
