Sopwith Pup
1.Install the mounting base for motor and power system.
a
b
g
f

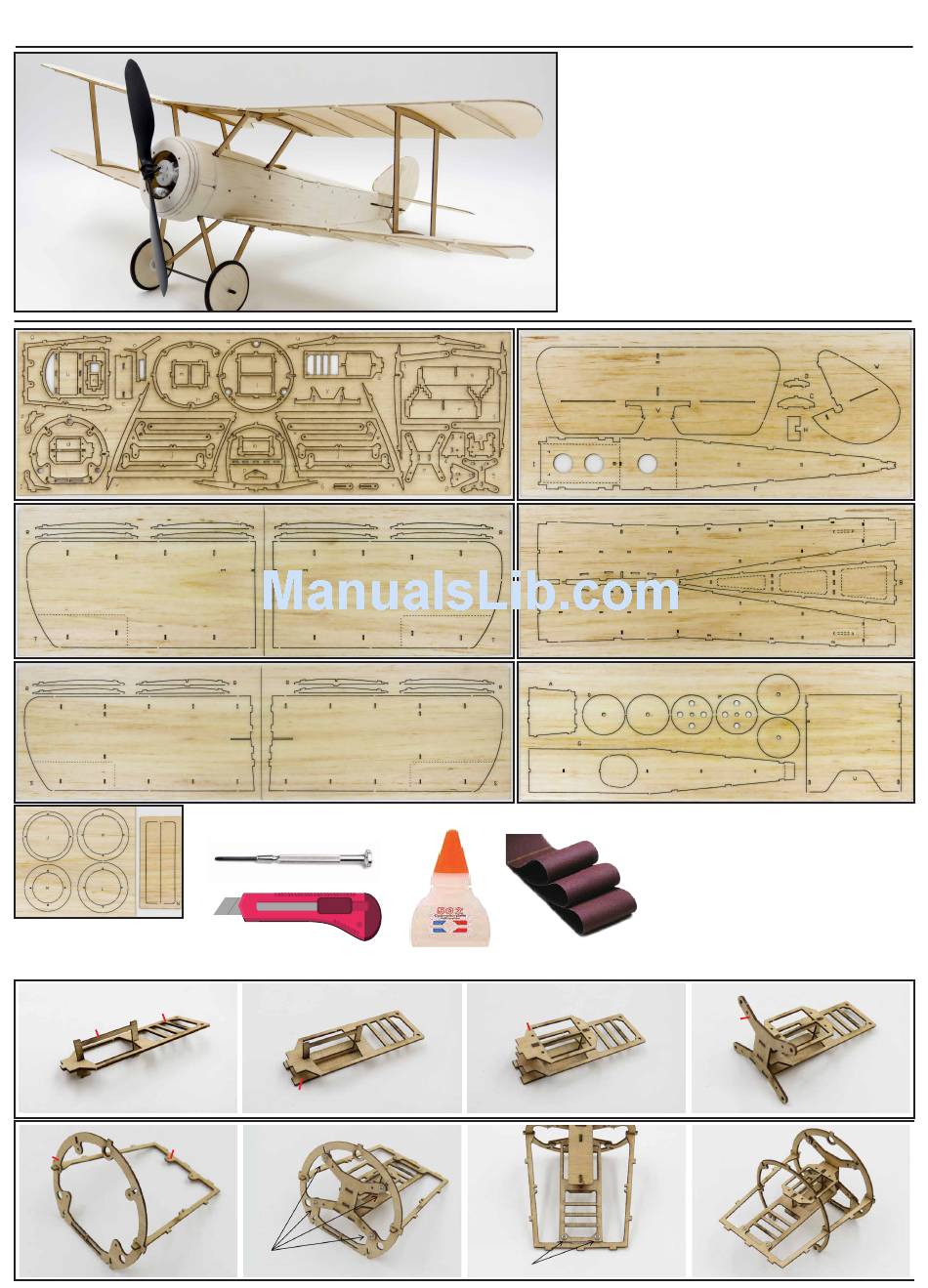

BALSAWOOD MINI AIRPLANE INSTRUCTION MANUAL
Specification
Wingspan ： 378mm
Length ： 280mm
Flying Weight ： 42-50g
Tools Needed
c
screws
Brushed motor
Suggested Motor ：XEPS7 brushed motor
Suggested ESC/Servo/RX:DSM Ⅱ 3in1 board
Suggested Prop ：4530-5030
Suggested BATT ： 1S 150-200mA h
Brushless motor
Suggested Motor: C05 (1104) 3700kv
Suggested ESC: 1S 5A
Suggested BATT： 1S 150-200mＡh
SuggestedProp: 5030
Servo: 1.7g*2
d
screws
e
h
Advertisement
Table of Contents
Related Manuals for Sopwith Pup BALSAWOOD MINI
Summary of Contents for Sopwith Pup BALSAWOOD MINI
- Page 1 Sopwith Pup BALSAWOOD MINI AIRPLANE INSTRUCTION MANUAL Brushed motor Suggested Motor ：XEPS7 brushed motor Suggested ESC/Servo/RX:DSM Ⅱ 3in1 board Suggested Prop ：4530-5030 Suggested BATT ： 1S 150-200mA h Brushless motor Suggested Motor: C05 (1104) 3700kv Specification Suggested ESC: 1S 5A Suggested BATT：...
- Page 2 Sopwith Pup BALSAWOOD MINI AIRPLANE INSTRUCTION MANUAL 2.Assemble the fuselage. The head frame in step 1 cut off cut off the hatch 2X1mm magnet 3.Assemble the cowling Soak and bend part N. 3X1mm magnet Install onto the head and cut off the spare part polish into radian.
- Page 3 Sopwith Pup BALSAWOOD MINI AIRPLANE INSTRUCTION MANUAL 5.Assemble the upper and lower wing screws lower wing upper wing paper hinge paper hinge paper hinge 6.Install the motor and power system (take the brushed motor as an example) Take down the components a-e,and fix together with motor mount components 2-5 by screws,connect the servo pull-rod and electric plugs,finally assemble the components a-e onto the head.
- Page 4 Sopwith Pup BALSAWOOD MINI AIRPLANE INSTRUCTION MANUAL Adjust the C.G: 10-15mm from the leading edge of the lower wing. 10-15mm...
