Summary of Contents for AbonMax AMF650

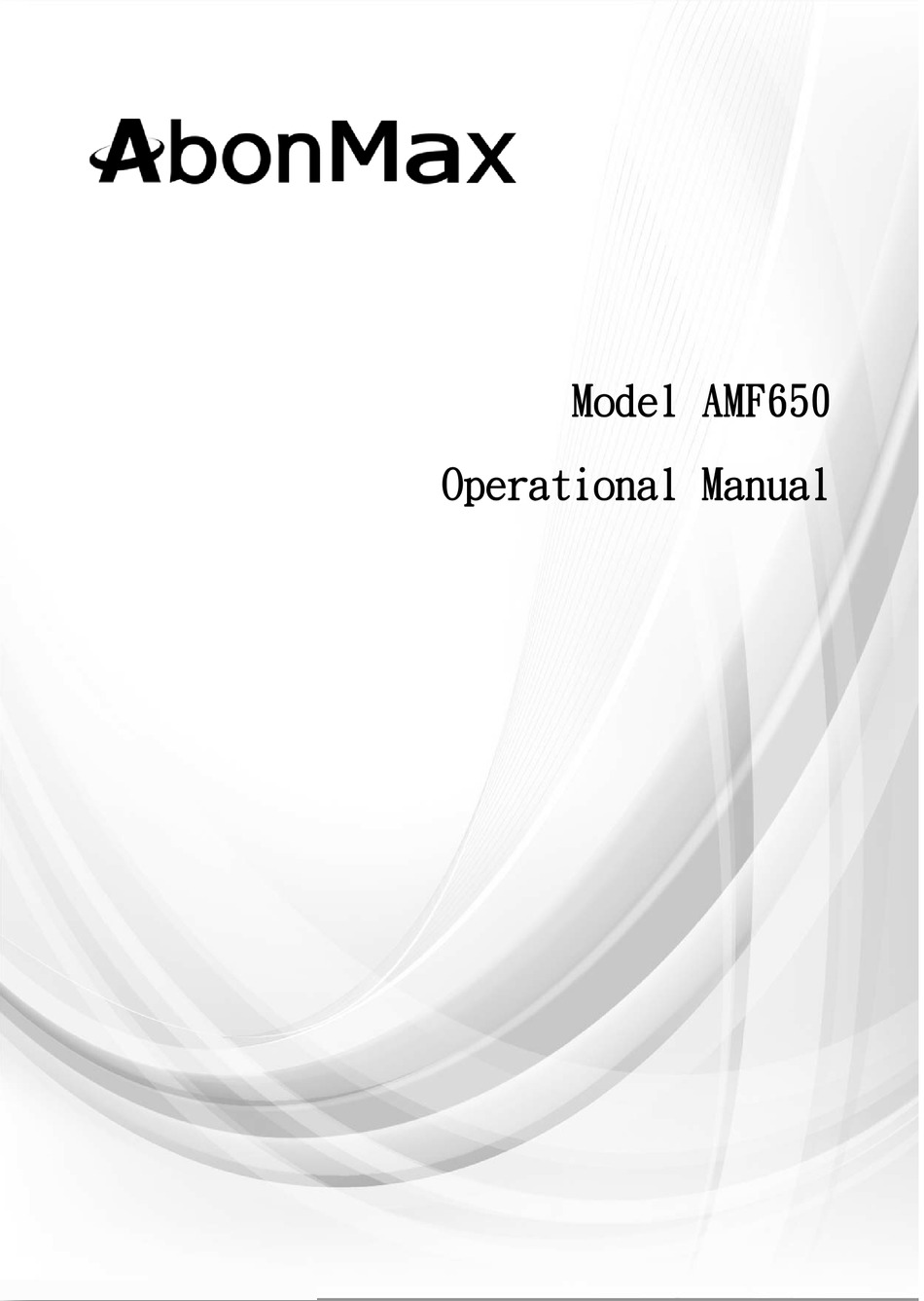

- Page 1 Model AMF650 Operational Manual Publication Date：January,1,2017(First Edition) ...
-
Page 2: Table Of Contents
DIRECTORY Safety warning ........ 2-3 Dismantling / Modifying equipment ......2 Power input ..........2 Environment ..........2 Display panel breakage ........3 Liquid infiltration .......... 3 Use of optional devices ........3 Mobility ............. 3 Accessories ........4 Package contents .......... -
Page 3: Safety Warning
SAFETY WARNING Dismantling / Modifying equipment The internal high-voltage circuit module is forbidden to dismantle if without qualified technician＇s operation. Never insert anything metallic into cabinet opening of the device (touch monitor). Do not modify the internal wiring or install other electronic products inside the device. -
Page 4: Display Panel Breakage
Make sure the wall mounting bracket is well leveled when using wall mounting kit so that the device is secured for avoiding dropping. The vent holes shouldn＇t be blocked or covered by external objects (such as newspapers, tapes, curtains and other items), overheating could induce electronic failure. -
Page 5: Accessories
Accessories Packaging contents Model AMF650 65-inch touch display accessories: Power cord 1.8m, USB male / male touch signal line 1.8m, HDMI 1.4 signal line 2m, Remote controller (with Battery AAA x2), Operational manual, Warranty card. Connections and basic installation ... - Page 6 Connect the power supply Connection method Ensure that the power cord is plugged into the rear connector of the device and the power plug is plugged into power outlet.。 Connect HDMI display/Touch panel interface HDMI display connection method. Connect the HDMI signal cable to the HDMI input port of touch monitor.
- Page 7 ...
- Page 8 Button/Remote control Descriptions of control buttons Monitor power on / off Control key (move left) Enter the OSD operation Control key interface (move right) Control Key Leave menu (Move Down) Control key (move up) ...
-
Page 9: Remote Control
Remote control Buttons for operation 1. Power on or off Turn on the display in standby or turn off the device in use. 2. Volume Mute key The sound will be muted/unmuted when pressing this button. 3. OSD menu Press the MENU button to toggle the OSD menu on and 4. -
Page 10: Trouble Shooting
Trouble shooting Frequently Asked Questions (FAQ) Q: There is no power-on light indication after plugging in Power cable A: Please check power cable for ensuring its usability. Make sure that the battery was installed properly if IR remote control doesn＇t work. Q: There is no display after display input signal is connected. -
Page 11: Maintenance And Cleaning Instructions
Maintenance and cleaning instructions 1. Appearance Clean the dust with a clean soft wiper to avoid the scratches on appearance. Please remove stains on appearance by using soft cloth with water or non-corrosive cleaning solvents. 2. Touch screen display ... -
Page 12: Specifications
Specifications Touch monitor dimensions ※ Mounting standard: VESA 400mmx400mm ... - Page 13 Model AMF650 Diagonal size 65” Resolution Full HD1920×108060HZ Color Support 16.7M Contrast Ratio 4000 1 Typ Brightness 450 cd/m2 (typical) W/O touch Touch 10-point Projected Capacitive Touch sensor Touch report rate >100Hz Viewing area 1,428.48 x 803.52mm D-sub Input/output HDMI 1.4*2...
- Page 14 Contact Information Email: service@abonmax.com.tw Tel: (886)-3-4526136 轉 601 Address: No.9, Ziqiang 4th Rd., Zhongli Dist., Taoyuan City 320, Taiwan (R.O.C.) Website: www.abonmax.com.tw Publication Date：January,1,2017(First Edition) ...
