Summary of Contents for Onsite Cameras AutoCam Quad HD M7

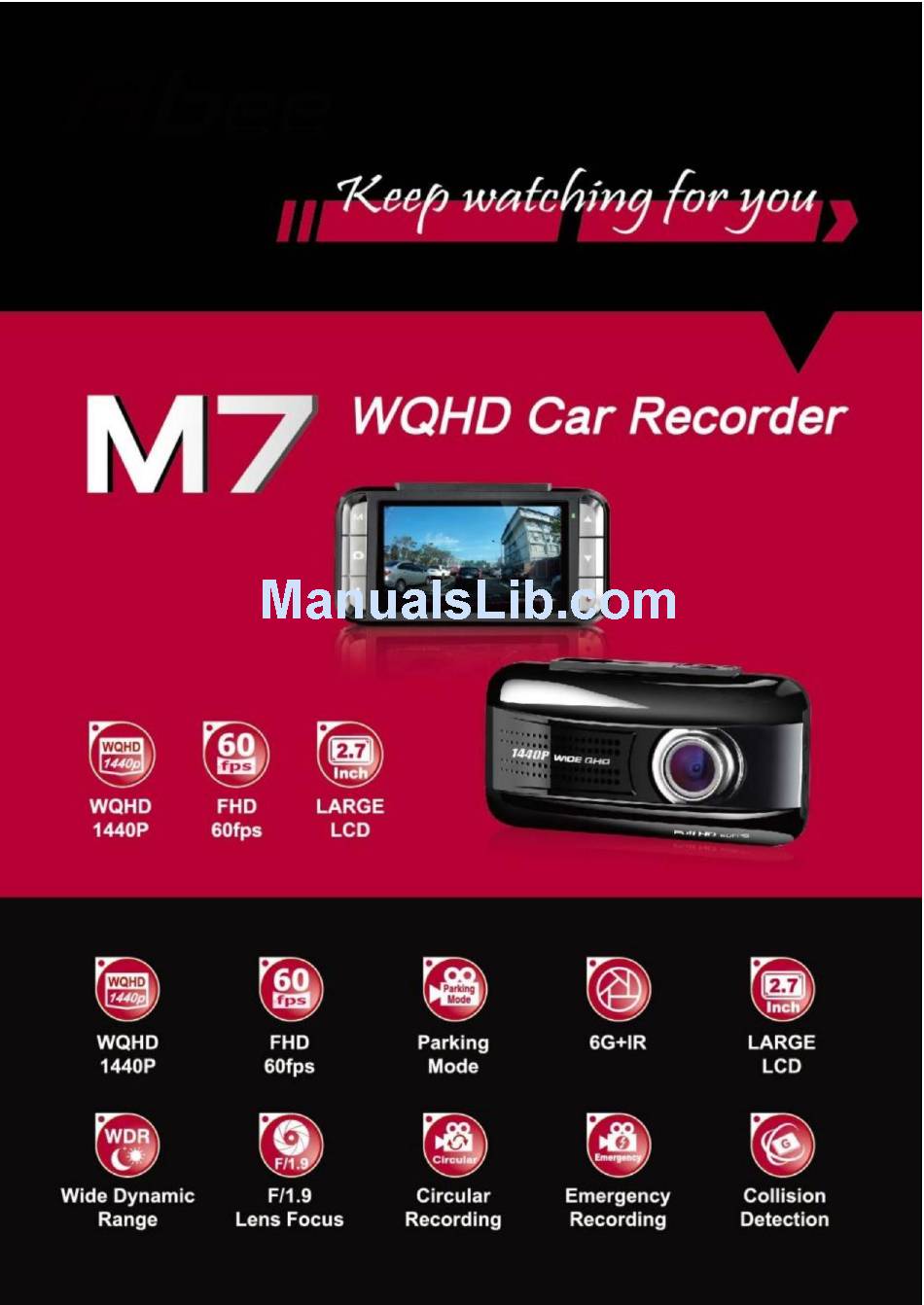

- Page 1 M7 High Definition Car Recorder User Manual...
-
Page 2: Table Of Contents
3.3 Emergency Recording .................. 12 3.4 Snapshot ..................... 13 3.5 Files Preview....................13 3.6 Menu / Functions ..................14 3.7 Micro SD Card File Storage Instruction ............16 4、 Specifications ..........17 AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 3: About
European Union concerning the usage of 6 harmful substances including lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls and polybrominated diphenyl ether. The production process of our device complies with RoHS standards. AutoCam Quad HD M7 V e h i c l e Recorder User Manual... -
Page 4: 1、Product
Memory Card: Micro SDHC memory card supports up to 128GB. USB 2.0 Interface: Directly connects to PC for fast file access. CE/FCC/BSMI certified. No interference with in-car devices and GPS. Compliance with RoHS environment-friendly regulations. AutoCam Quad HD M7 V e h i c l e Recorder User Manual... - Page 5 The driving safety calculation is for reference only. Please drive according to local traffic rules and actual traffic situation. For correct usage, please read the user manual carefully. AutoCam Quad HD M7 V e h i c l e Recorder User Manual...
-
Page 6: Content
※Please do not insert or extract the memory card while the device is in operation. 1.2 Content Device Bracket Car Charger User Manual (Emailed) ※ Accessories provided subject to the actual package content. AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 7: Appearance
Menu / Back Mount Snapshot Mini USB Port Voice Recording On / Off Micro SD Card Slot Up Select / Emergency HDMI Output Recording Down Select Lens REC/Pause/Confirm Speaker Display Screen Microphone AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 8: 2、 Installation Guide
Do not install products over an air bag cover or within the air bag deployment zone. The company assumes no responsibility or liability for injury or death as a result of car crashes and/or air bag deployment. AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 9: Device Installation/Uninstallation
1. Device Uninstallation: Make sure the device is securely in your hand. To disconnect the suction cup from the windshield, pull down the clamp. 2. Bracket Uninstallation: To disconnect the bracket from the windshield, simply pull up the suction cup bottom. AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 10: Wiring Suggestion
The device will automatically turn on/off in accordance to engine’s status. ※ Red LED light on the device indicates device is under recording; Green light indicates device is on stand-by mode. AutoCam Quad HD M7 V e h i c l e R e c order User Manual... -
Page 11: 3、 Operational Guide
2. Check if the storage space of memory card is sufficient; or if it is system error. 3. Please back up the data and format the SD card if the error cannot be removed. AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 12: Recording
2. Emergency recording will be initiated when collision is detected under the recording mode when device is power on. 3. A 16GB memory (and above) card saves approximately 10 emergency recording files. AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 13: Snapshot
▲ ▼ back menu. Use to select the file and click on for video playing. Click on button and select for returning to the previous section. AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 14: Menu / Functions
Select on/off. Turn on this function to obtain the best image under large light and shade contrast. Function Setting Collision High, medium or low sensitivity setting. The emergency Detection recording will be initiated in the event of a collision AutoCam Quad HD M7 Vehicle Recorder User Manual... - Page 15 File Playback Playback, watch video or photos File Delete Delete videos or photos Format Delete all the files in SD card if process Version Firmware version display AutoCam Quad HD M7 V e h i c l e Recorder User Manual...
-
Page 16: Micro Sd Card File Storage Instruction
3. Memory Card (Micro SD) Content: Files are stored in “CARDV” in the memory card and separated into 3 folders: “EMERG” for emergency recording videos; “VIDEO” for general circular recording videos and “PHOTO” for snapshot pictures. AutoCam Quad HD M7 Vehicle Recorder User Manual... -
Page 17: 4、 Specifications
BSMI/CE/FCC/RoHS Certifications Dimensions 48.5(L)x93.8(W)x29.2(H)mm Weight Around 80g ※ All specifications are subject to change. reserves the right to modify the specification without prior notice to customer. AutoCam Quad HD M7 V e h i c l e Recorder User Manual...
