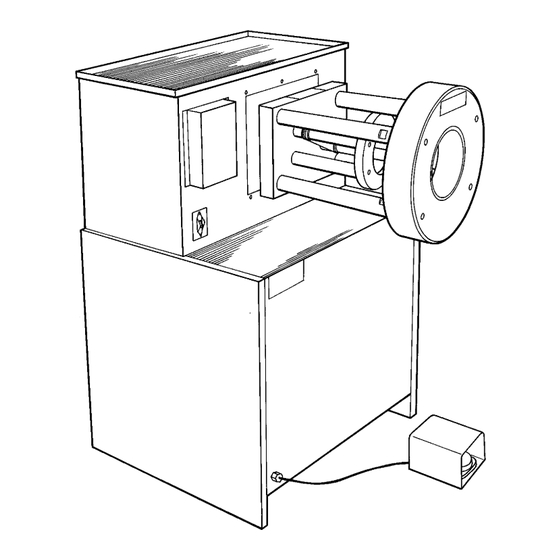

Aeroquip ProCrimpT 1390 Operator's Manual

Crimp machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Aeroquip
ProCrimp
Crimp Machine
Operator's
Manual

Table of Contents

Safety Instructions .................................................... 2
Specifications ............................................................ 3
Accessories ............................................................... 3
Setup and Installation ............................................... 3
Loading and Unloading Die Cages ................... 4
Operating the Keypad ..................................... 4-5
Storing a Number from the Display ................... 5
Programmable Retract Stop ..................................... 5
Adjustable Back Stop ............................................... 5
Crimping Procedures ................................................ 6
Calibration ................................................................. 7
Intervals .............................................................. 8
Machine Maintenance Procedures .................... 8
Die Cage Maintenance Procedures ................... 8
Troubleshooting Tips ................................................ 9
Crimp Machine Parts Breakdown ..................... 10-12
Die Cage Parts Breakdown .................................... 12
Electrical Schematics ........................................ 13-14
Hydraulic Schematic ............................................... 14
www.TheCatalogRoom.com Purchase at: www.EatonProducts.com
© Aeroquip Corporation 1996
1390
TM
Aeroquip ProCrimp 1390 Crimp Machine
FT1390-500
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProCrimpT 1390 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aeroquip ProCrimpT 1390

  • Page 1: Table Of Contents

    Aeroquip ProCrimp 1390 Crimp Machine FT1390-500 Aeroquip ProCrimp 1390 Crimp Machine Operator’s Manual Table of Contents Safety Instructions ............ 2 Specifications ............3 Accessories ............... 3 Setup and Installation ..........3 Operating Instructions Loading and Unloading Die Cages ....4 Operating the Keypad ........

  • Page 2: Safety Instructions

    Aeroquip hose with fittings supplied by other manu- another manufacturer, or in the event that product facturers may result in the production of unreliable and...

  • Page 3: Specifications

    2807, 2808, FC186, FC465, FC469 and FC505 hose styles. Accessories Die Cages Crimp Die Cage Storage Cabinet Aeroquip recommends that crimp die cages be kept free of Part Number ........... FT1307-200-M070 dust or dirt. An optional wall-mountable cabinet is offered ........... FT1307-200-M090 which has the capability to store nine crimp die cages.

  • Page 4: Operating Instructions

    (See Figure 1.) NOTE: To minimize cycle time The DISPLAY shows the three-digit setting that will during normal operation, the Aeroquip ProCrimp 1390 crimp determine the crimp diameter. The DISPLAY number machine can be programmed to stop retracting before it itself is a relative number, not a crimp diameter.

  • Page 5: Entering A Number Into The Display

    Aeroquip ProCrimp 1390 Crimp Machine The numbered keys have two functions: Programmable Retract Stop In the ENTER mode, their numeric value is put into Using the Crimp/Retract switch, place the cylinder in the the DISPLAY. position where you want it to stop during retraction.

  • Page 6: Crimping Procedures

    If the dies don’t touch the fitting, lower Refer to the current Aeroquip Crimp Specifications bulletin the DISPLAY setting by 050 to “450” and crimp the for complete and detailed crimp specification information fitting again.

  • Page 7: Calibration

    Repeat steps 5 and 6 at left, using Table B for the -8 socket. 10. After the three-digit DISPLAY reading in Step 9 is entered, The calibration procedure below will calibrate the Aeroquip the machine will automatically exit the calibration mode.

  • Page 8: Maintenance Intervals

    Die Cage Maintenance Procedures Lubricate the die cage. For maximum service, die cages require lubrication at 50-crimp intervals with NEVER•SEEZ (Aeroquip Part Number FT1092). FT1092 is an eight- ounce container that will provide sufficient lubricant for about 5,000 crimps. Periodically remove NEVER•SEEZ residue that has built up on the sides of the dies and in the crimp ring during the crimping process.

  • Page 9: Troubleshooting Tips

    Aeroquip ProCrimp 1390 Crimp Machine Troubleshooting Tips Remember: The electric motor only runs during the crimping process. The motor energizes when the crimp/ retract switch or footswitch is pressed and de-energizes when the cylinder has retracted. Symptom Possible Cause Corrective Action Pump will not start •...

  • Page 10: Crimp Machine Parts Breakdown

    Aeroquip ProCrimp 1390 Crimp Machine Crimp Machine Parts Breakdown Detail Part Number Description Detail Part Number Description 1C02217GGG0310A Hose Assembly FT1340-2-2-20 FF2032T0606S 90° Adapter FT1340-2-2-23 Crimp Ring (may have all 45° adapters) FT1340-2-5-1 Motor Starter Switch FF2093T0606S 45° Adapter FT1340-3-2...
  • Page 11 Aeroquip ProCrimp 1390 Crimp Machine 100 Watt Maximum Detail Part Number Description Detail Part Number Description FT1380-3-31 Insulated Wire FT1390-3-17 Hydraulic Power Unit 208-240VAC 60HZ FT1390-3-1 Hydraulic Power FT1390-3-18 Locknut Unit 115VAC 60HZ FT1390-3-19 Hydraulic Power FT1390-3-2 Hydraulic Cylinder Unit 230VAC 50HZ...

  • Page 12: Die Cage Parts Breakdown

    Aeroquip ProCrimp 1390 Crimp Machine FT1307 Die Cage Parts Breakdown Detail Part Number Description 8 pc 21057-7 Roll Pin .25 dia x .62 long 8 pc FT1209-2-9-7 Spring 1 pc FT1307-2-9-3 Spring Plate 1 pc FT1307-2-9-4 Front Plate 3 pc FT1307-2-9-5 BHCS 5/16-18x2.56 long...

  • Page 13: Electrical Schematics

    Aeroquip ProCrimp 1390 Crimp Machine FT1209 Die Cage Parts Breakdown Detaill Part Number Description 3 pc FT1209-2-9-1 BHCS 5/16-18x3.90 long 1 pc FT1209-2-9-2 Front Plate 4 pc FT1209-2-9-3 Spacer 1 pc FT1209-2-9-4 Back Plate Assembly (Details 5 through 9) 1 pc...
  • Page 14 Aeroquip ProCrimp 1390 Crimp Machine Electrical Schematic for FT1390-115 (115V model) Electrical Schematic for FT1390-230 (230V model) www.TheCatalogRoom.com Purchase at: www.EatonProducts.com © Aeroquip Corporation 1996...

  • Page 15: Hydraulic Schematic

    Aeroquip ProCrimp 1390 Crimp Machine Electrical Schematic – Terminal Blocks and Pin Numbers (115V and 230V models) Terminal Block Number Voltage Wire Color Description +12V AC Black From transformer +0V AC White From transformer None Green To earth ground +4.04V DC...
  • Page 16 1695 Indian Wood Circle P.O. Box 700 Maumee, OH 43537-0700 Phone: 419-891-5100 Fax: 419-891-7890 http://www.aeroquip.com Specifications subject to change without notice. Aeroquip products are protected by patents internationally www.TheCatalogRoom.com Purchase at: www.EatonProducts.com 3-96 FT1390-500 Litho in U.S.A. © Aeroquip Corporation 1996...
