Summary of Contents for SHENZHEN COOINTECH TECHNOLOGY CO., LTD. HZ-VN-2001-4S

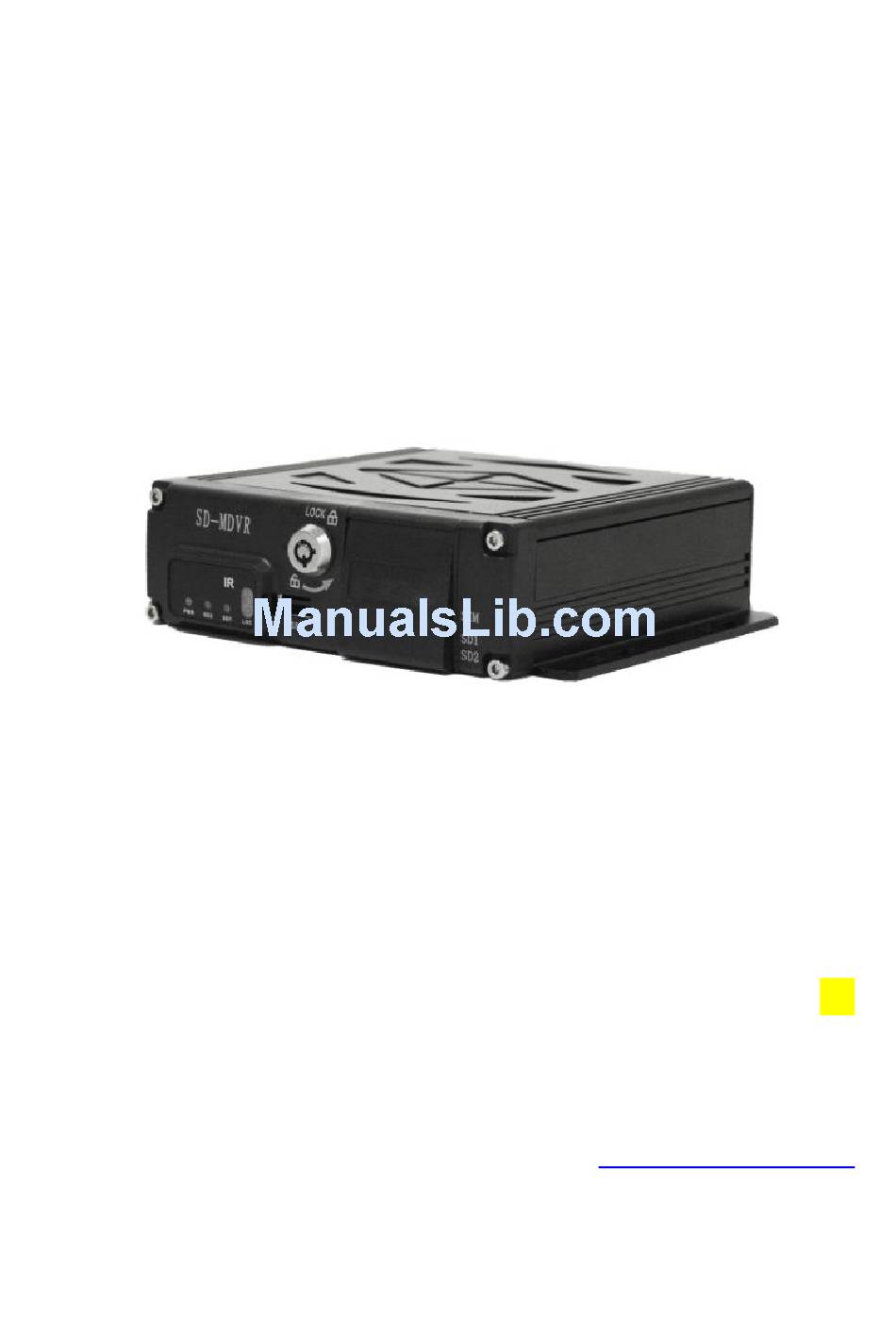

- Page 1 4CH SD 720P MDVR User Manual Model: HZ-VN-2001-4S SHENZHEN COOINTECH TECHNOLOGY CO., LTD. www.coointech.com...
- Page 2 4CH SD MDVR 2001 SERIES COPYRIGHT © 2016 Shenzhen Coointech Technology Co., Ltd. This manual is copyrighted with all domestic and international rights reserved. No part of this document may be reproduced physically or electronically without written permission of Shenzhen Cooint Technology Co., Ltd.
-
Page 3: Table Of Contents
4CH SD MDVR 2001 SERIES TABLE OF CONTENTS GUARANTEE & WARNINGS ........................5 PRODUCT OVERVIEW ..........................5 ................................5 EATURES ..............................6 UNCTIONS ............................... 6 PECIFICATIONS ............................7 ORKING ARAMETERS PRODUCT OUTLOOK ..........................8 ............................8 RONT ANEL VERVIEW Description of Front Ports & Indicator ......................8 ............................ - Page 4 4CH SD MDVR 2001 SERIES G SENSOR ................................22 VOLTAGE ................................22 SERIAL ................................23 PTZ ..................................23 SERIAL ................................... 23 Tools ................................24 FORMAT ................................24 CONFIG.................................. 24 LOG SEARCH ................................25 IMAGE SEARCH ..............................25 Info ................................25 SYSTEM INFO ................................
-
Page 5: Guarantee & Warnings
If there are any problems, please contact us as soon as possible. 2. PRODUCT OVERVIEW HZ-VN-2001-4S is a superior MDVR model specially designed for vehicle surveillance and remote monitoring, combined with high-speed processor and embedded operating system. The advanced H.264 video compression and decompression, wireless transmission, GPS location make it to be a very powerful and perfect solution for vehicles. -
Page 6: Main Functions
4CH SD MDVR 2001 SERIES ★ CMS platform ability for big fleet and user management. ★ Simple easy to operate video playback software. Main Functions FUNCTIONS DESCRIPTIONS Through WIIF/3G/4G network, multi functions are achieved such as: Wireless Communications real-time monitoring, video download, two way talk, parameter config, remote upgrade, remote control etc. -
Page 7: Working Parameters
4CH SD MDVR 2001 SERIES 8 levels of image quality: class 1 the highest and class 8 the lowest. Audio Code Rate 40KB/s Data Storage 2x 128GB SD Card Alarm input 4x Alarm input Alarm Alarm output 1x Alarm output, with 12V high electrical level RS232 port 1x RS232 Communication... -
Page 8: Product Outlook
4CH SD MDVR 2001 SERIES 3. PRODUCT OUTLOOK Front-Panel Overview Description of Front Ports & Indicator TYPE ITEM DEFINITION Panel SD1/SD2 2 SD cards for cycle recording Ports Power indicator, lighted (blue) if power input is connected Indicator Indicator of "SD card", lighted (green) if SD card is detected, otherwise SD1/SD2 led is off. -
Page 9: Back-Panel Overview
4CH SD MDVR 2001 SERIES Lock for SD and SIM slots and power on/off for MDVR. e-Lock LOCK If unlocked, the MDVR will be auto into standby status. Back-Panel Overview Camera Ports Define A/V1,2,3,4 & AV-OUT: IO & Power Define 9 / 30... -
Page 10: Description Of Back Panel
4CH SD MDVR 2001 SERIES Description of Back Panel Panel Interface Definition A/V1,2,3,4 4 channels of AV inputs AV-OUT AV outputs 4channels alarm input & 1 channels output ports, 1 RS485 ports, 1 RS232 ports and pulse speed port POWER Power input, DC8-36V GPS antenna port 3G/4G... -
Page 11: Login
4CH SD MDVR 2001 SERIES - + symbols Space delimiter when editing; Volume adjustment F1, F2, F3, F4 Reserved LOGIN Two levels for login: ADMIN, USER MAIN MENU Settings incl. “SYSTEM, RECORD, PLAYBACK, TOOLS, SERIAL, NET, ALARM, INFO etc." SYSTEM Settings incl. -
Page 12: Time
4CH SD MDVR 2001 SERIES TIME Date Type: incl. YY/MM/DD, M/D/YY, DD/MM/YY. Press OK to choose. Sync Type: incl. OFF/GPS/NTP Date: press number keys to enter Time: with format “hour/minute/second”. Press number keys to enter Time Out: incl. -
Page 13: Power
4CH SD MDVR 2001 SERIES Psw: incl. ON/OFF. It means to enable/disable password when login. Note Only ADMIN has rights to change password; USER only can view with no rights of configuration. Default password: for user 000000, for admin 666666 POWER ... -
Page 14: Record
4CH SD MDVR 2001 SERIES Auth Num: serial number of product at factory, usually unique Reminder: Except “Phone” is necessary, the rest settings are optional. Press OK to enter. Record Settings incl. " GENERAL, MAIN REC, SUB REC, TIMED REC, DISK MANAGE, MIRROR REC”. GENERAL ... -
Page 15: Main Rec
4CH SD MDVR 2001 SERIES Camera type: incl. “analog/HD/mixed”. The MDVR can be connected 4x analog cameras, or 4x 720p HD camera, or 1x 720p with 3x analog cameras. Resolution: VAG output resolution, incl. 720*576, 1024*768, 1280*720 MAIN REC ... -
Page 16: Disk Manage
4CH SD MDVR 2001 SERIES ALL: 7 days from Monday to Sunday. Note: start time cannot be later than the finish time. DISK MANAGE Record Type: incl. None/Main /Mirror/Sub. Priority: incl. Low/Mid/High. It decides which one is processed first when there’re two disks with same record type. -
Page 17: Playback
4CH SD MDVR 2001 SERIES AUDIO: enable/disable audio recording with video recording Playback RECORD SEARCH Calendar: green means normal recording, red means alarm recording, blue means no recording during the current day. Date: choose which date for search ... -
Page 18: Center
4CH SD MDVR 2001 SERIES CENTER Address: IP or domain name of center server Port: port number of center server FTP: IP address of ftp server Port: port number of ftp server Username: username of FTP login ... -
Page 19: Wifi
4CH SD MDVR 2001 SERIES 3G/4G Enable: ON/OFF means to enable or disable 3G/4G connection. Type: For overseas users, 3G SIM choose WCDMA, 4G SIM choose FDDLTE-W For the rest settings, pls check with your SIM card carrier accordingly. WIFI ... -
Page 20: Speed
4CH SD MDVR 2001 SERIES Enable: incl. “OFF, Emergency, Front Door, Middle Door, Back Door, Driver Door, Other Door, Near Beam, Distant Beam, Right Beam, Left Beam, Braking, Reverse, Fog Lamp, Position Light, Horn, Air Conditioner, Neutral Gear, Retarder, ABS, Heater, Clutch, Door Sensor, Smoke Sensor, Customize”... -
Page 21: Temp
4CH SD MDVR 2001 SERIES Source: incl. GPS/Vehicle/Mix. Note: the “vehicle” needs work together with “Pulse”. Pulse: the pulse rotation rate per a kilometer. It works when “vehicle” is set as speed source. Unit: Km/h or MPH ... -
Page 22: G Sensor
4CH SD MDVR 2001 SERIES ALM Link: means "alarm linkage”. OFF or user defined to an external device like alarm lamp etc G SENSOR G-Sensor alarm is detected by changes from x, y and z axis. For first time of use, “Adjust” is required. -
Page 23: Serial
4CH SD MDVR 2001 SERIES ALM Link: means "alarm linkage”. OFF or user defined to an external device like alarm lamp etc. SERIAL Settings incl." PTZ, SERIAL". Protocols: PELCO-D, PELCO-P optional Address code: address code of PTZ SERIAL ... -
Page 24: Tools
4CH SD MDVR 2001 SERIES If the default parameters don’t work for the chosen outer device, user needs config the parameters manually. Tools Settings incl. "FORMAT, CONFIG, LOG SEARCH, IMAGE SEARCH ". FORMAT Choose a disk, press OK and confirm. After formatting is ok, FAT32 files will be pre-allocated in disk. -
Page 25: Log Search
4CH SD MDVR 2001 SERIES Import: import configuration from SD card. It simplifies the configuration work at multi MDVRs. Save as default: save the current setting as default Restore to default: change current setting back to default setting. ... -
Page 26: Disk Info
4CH SD MDVR 2001 SERIES DISK INFO NETWORK INFO COM INFO 26 / 30... -
Page 27: Installation
4CH SD MDVR 2001 SERIES 5. INSTALLATION Power Cable Connection For field installation, the anode (red) and cathode (black) should directly connect to car battery. For office testing, the anode (red) and ACC (yellow) can be combined as a anode wire. After, lock the MDVR to power on. -
Page 28: Connects To Aptz Camera
4CH SD MDVR 2001 SERIES The standard current is 200mA. A relay will be needed if higher power consumption is used for operation. Connects to a PTZ Camera Step1, Select protocol according to PTZ camera Step2, Select baud rate according to PTZ camera. Step3, Select address code according to PTZ Step4, Cabling: one 485 wire of PTZ connects RS485-A (anode), the other PTZ wire connects RS485-B (cathode). -
Page 29: Faq
4CH SD MDVR 2001 SERIES 6. FAQ Questions ecording 1. Why MDVR doesn’t record after power on? Check if SD card exist; if exist, check disk status. Types of disk status: nonexistence, unformatted, normal volume of under usage, normal volume of full usage. -
Page 30: Why No Positioning Info When Car Is Online
4CH SD MDVR 2001 SERIES Check if GPS antenna is well installed. It's recommended to put antenna in a open place with no shield, for better signals. Though, it's normal that GPS signals may be lost when car is passing by tunnel, big trees, or high buildings. 2.
