MS4559-52H Users Guide
Suisei Electronics System Co., Ltd
4
Edition issued June 2011
th

1. General Description

MS4559-52H is a writing target board for standard serial I/O mode used by connecting to EFP-I/1M or
EFP-S2/S2V.
Reading and writing data to microcomputer 4559, 455A groups with built-in Renesas Electronics 4 bit
QzROM, is enabled by using MS4559-52H.
IC socket for 52-pin 0.65mm pitch LQFP (PRQP052JA-A) (52P6A-A) is mounted on MS4559-52H.
＜Packing contents＞
１）MS4559-52H
２）Users guide (this manual）

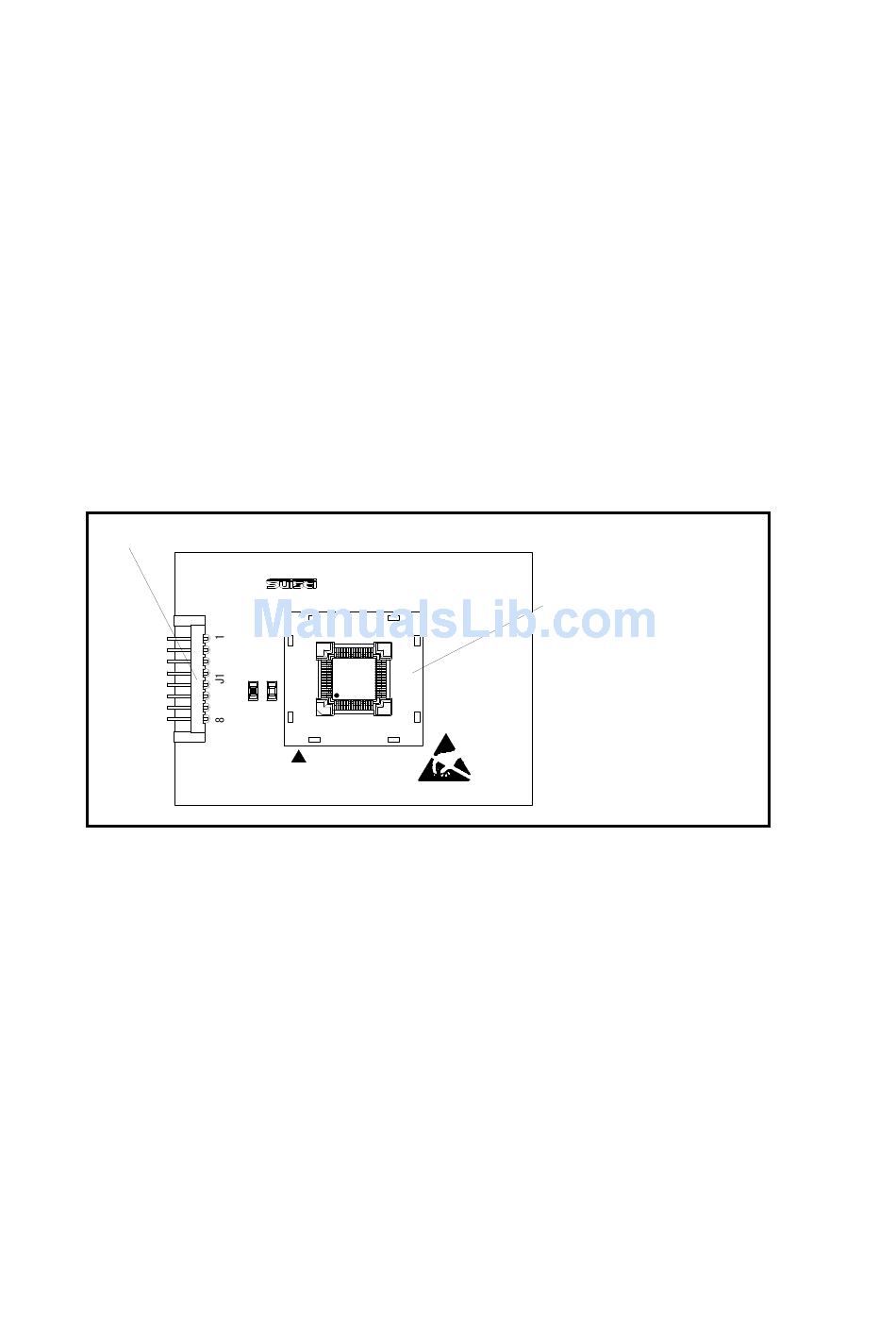

External Figure of MS4559-52H is shown in Fig 1.1.
t cable connection connector(J1)
MS4559-52H
REV.A
IC socket：52LQFP type
(PLQP052JA-A)
(52P6A-A)
IC1
MADE IN JAPAN
Fig 1.1 MS4559-52H External Figure
（1/5）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS4559-52H and is the answer not in the manual?

Questions and answers

Summary of Contents for Suisei MS4559-52H

  • Page 1 Edition issued June 2011 1. General Description MS4559-52H is a writing target board for standard serial I/O mode used by connecting to EFP-I/1M or EFP-S2/S2V. Reading and writing data to microcomputer 4559, 455A groups with built-in Renesas Electronics 4 bit QzROM, is enabled by using MS4559-52H.
  • Page 2 EFP-S2/S2V EF1SRP-01US2 *1) when you use EF1SRP-05U in EFP-S2/S2V, EF1CNT-96P (separate sale) is necessary. 2.2 Connection Process In case MS4559-52H is connected, please use EF1TGCB-A (3-wire target connection cable) as shown in Fig.2.1. Target cable connection connector(J1) EFP-S2/S2V + EF1CNT-96P(EF1SRP-05U)
  • Page 3 3. List of Corresponding MCU and corresponding version 3.1 Corresponding MCU A corresponding MCU list of MS4559-52H is shown in Fig.3.1. Fig3.1 List of Corresponding MCU Main body Device type Corresponding Program memory EF1SRP-05U SW MCU name area setting M34559G6 M34559G6FP 0h～17FFh...
  • Page 4 Insertion Direction of MCU and cleaning of IC socket 4.1 Insertion Direction of MCU When MCU is inserted, No.1 pin of the IC socket on MS4559-52H and MCU’s No.1 pin should be connected. The wrong insertion would cause a serious breakage of MCU.
  • Page 5 List of Pin Connection Connector terminal names target cable connection connector of MS4559-52H is shown in List 5.1. List 5.1 Terminal List of target connection connector (J1) Pin No. Terminal Name I/O(writer Pin No. Terminal Name I/O(writer side) side) Input １...
