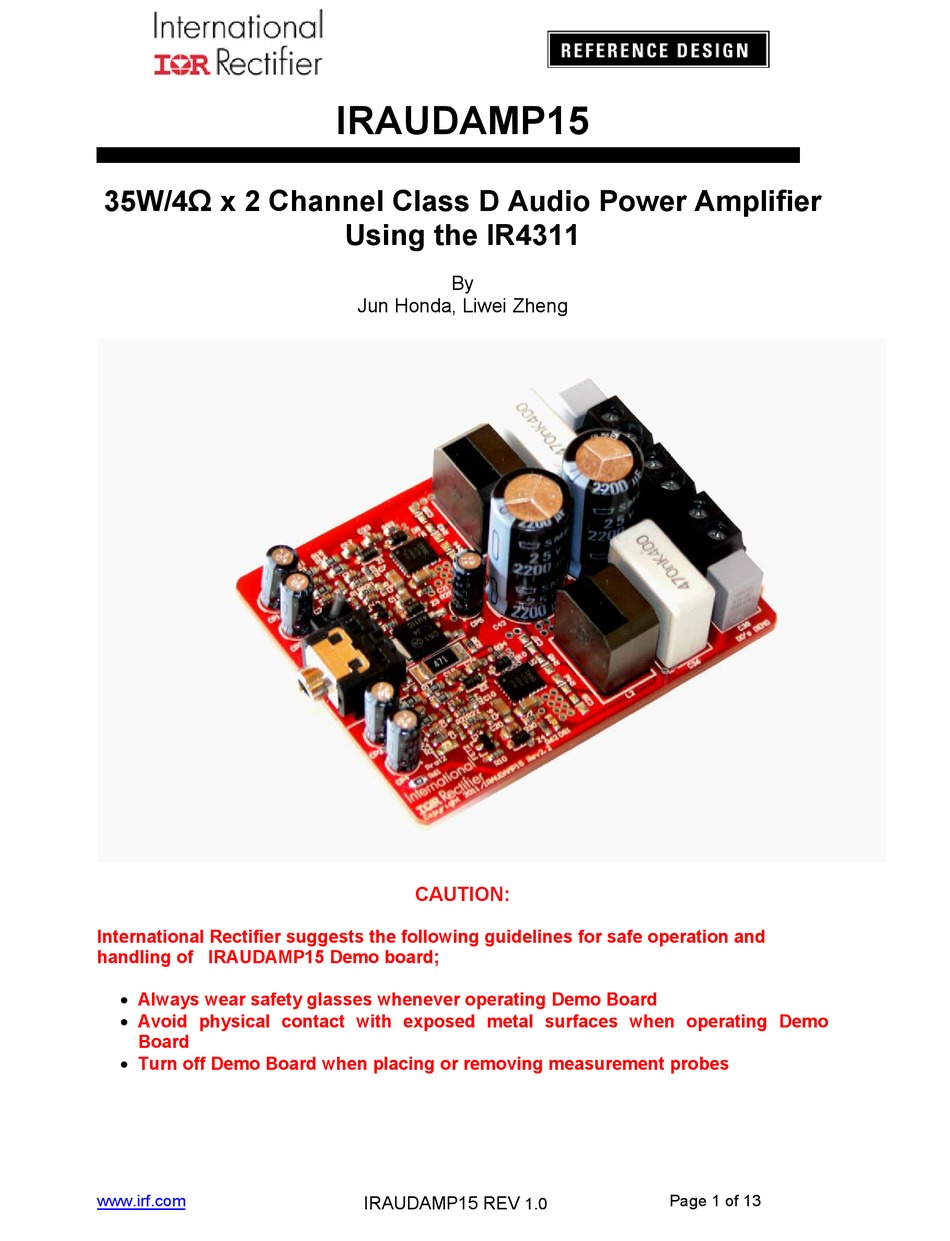

Using the IR4311 Jun Honda, Liwei Zheng CAUTION: International Rectifier suggests the following guidelines for safe operation and handling of IRAUDAMP15 Demo board; Always wear safety glasses whenever operating Demo Board Avoid physical contact with exposed metal surfaces when operating Demo Board ...
Introduction The IRAUDAMP15 reference design is a two-channel, 35W/ch half-bridge Class D audio power amplifier with single power supply. This reference design demonstrates how to use the IR4311 IC with single power supply, implement protection circuits, and design an optimum PCB layout using PowIRaudio integrated Class D IC.
Audio Input Audio Signal Generator Fig 1 Typical Test Setup Connector Description Audio IN Analog input for CH1 and CH2 POWER Single supply CH1 OUT Output for CH1 CH2 OUT Output for CH2 www.irf.com Page 4 of 13 IRAUDAMP15 REV...
0.01 0.005 0.002 0.001 100m 200m 500m Sweep Trace Color Line Style Thick Data Axis Comment Solid Anlr.THD+N Ratio Left Ch1 4ohms 31V Blue Solid Anlr.THD+N Ratio Left Ch2 4ohms 31V Fig 2 www.irf.com Page 5 of 13 IRAUDAMP15 REV...
VBus = 31V Load Impedance = 4 ohms No Input Signal -100 -120 -140 Sweep Trace Color Line Style Thick Data Axis Comment Solid Fft.Ch.1 Ampl Left Blue Solid Fft.Ch.2 Ampl Left Fig 4 www.irf.com Page 6 of 13 IRAUDAMP15 REV...
Page 7
Axis Comment Solid Fft.Ch.1 Ampl Left Ch1 4ohm Blue Solid Fft.Ch.2 Ampl Left Ch1 4ohm Fig 5 Efficiency 100.0% 90.0% 80.0% 70.0% 60.0% 50.0% 40.0% 30.0% 20.0% 10.0% 0.0% Power (W) Fig 6 www.irf.com Page 7 of 13 IRAUDAMP15 REV...
1/8 Po Thermal Test Conditions: Tamb=25°C natural convection cooling Both Channel Driven 1/8Po continuous 30mins Temperature measured by infrared camera Fig 7 IRAUDAMP15 (Vbus=31V) IR4311’s temperature saturated around 85°C within 30minutes www.irf.com Page 8 of 13 IRAUDAMP15 REV...
8. All exposed copper must finished with TIN-LEAD Sn 60 or 63 for 100u inches thick. 9. Tolerance of PCB size shall be 0.010 –0.000 inches 10. Tolerance of all Holes is -.000 + 0.003” 11. PCB acceptance criteria as defined for class II PCB’S standards. www.irf.com Page 11 of 13 IRAUDAMP15 REV...
Page 12
PCB Layout Top side: Fig 9 Bottom side: Fig 10 Note: Refer to AN1170 for footprint and board mounting details. www.irf.com Page 12 of 13 IRAUDAMP15 REV...
Revision changes descriptions Revision Changes description Date Rev 1.0 Released May, 11 2012 WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245 Tel: (310) 252-7105 Data and specifications subject to change without notice. 01/29/2009 www.irf.com Page 13 of 13 IRAUDAMP15 REV...
