DataComm 50-3321-WH-KIT Instruction/Installation Sheet

DataComm Electronics 50-3321-WH-KIT Flat Panel TV Cable Organizer Remodeling Kit with Power Outlet
DataComm Electronics, Inc.
6349 Peachtree Street
Norcross, GA 30071-1725
888.223.7977
770.662.8205
www.datacommcableorgnizer.com

Parts Included:

1. Recessed Cable Plate with Recessed Power Outlet
2.

Single Gang Recessed Cable Plate

3. Old Work Electrical Box
4. Single Gang Low Voltage Mounting Bracket

Tools Needed:

1. Drywall saw
2. 6 Ft. tape measure
3. Pencil
4. Screwdriver

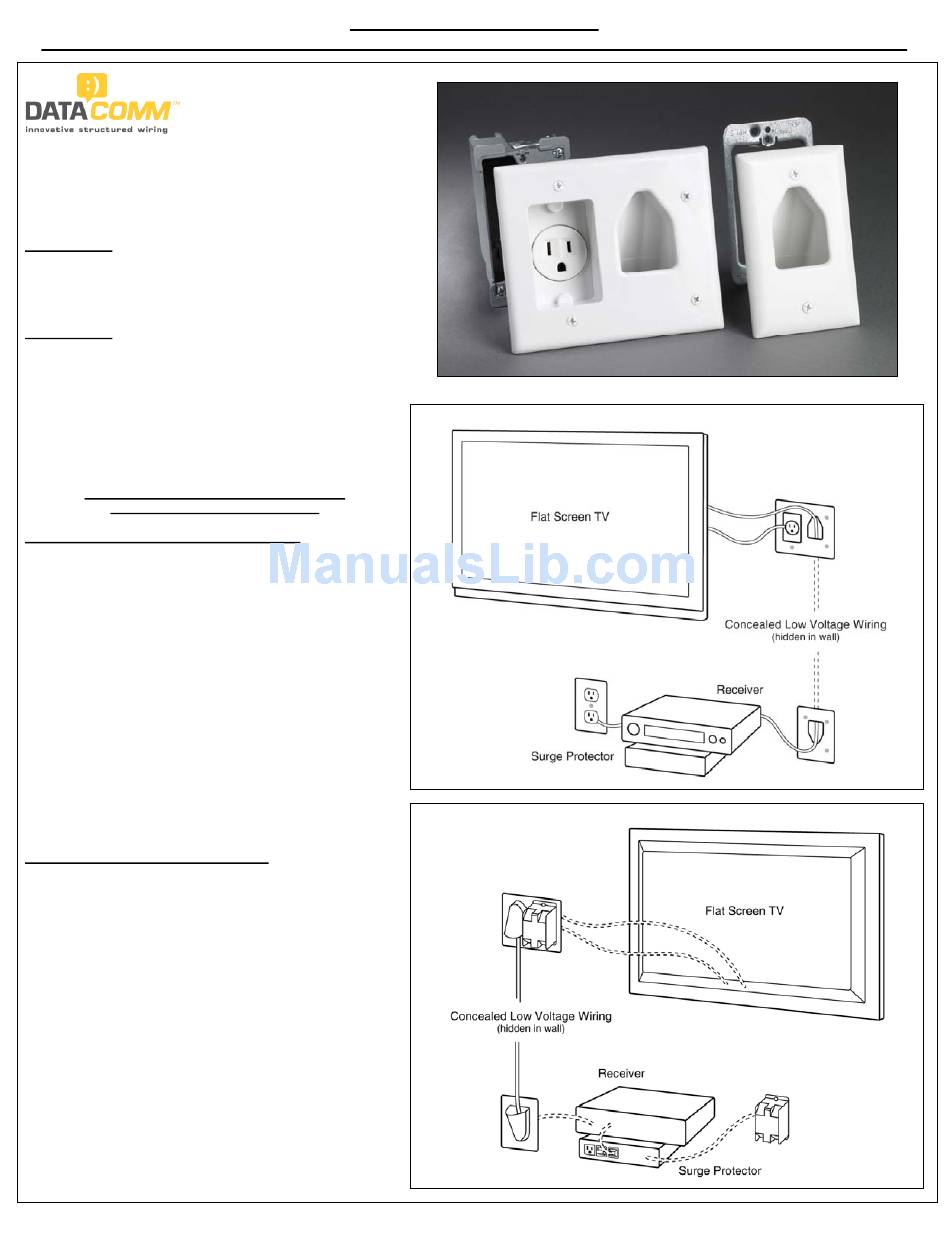

Use DataComm Electronics' Flat Panel TV Cable Organizer
Remodeling Kit with Power Outlet to install power and hide
unwanted audio/video (A/V) cables behind your flat panel TV
(see Figures 1 & 2).
To Install Recessed Cable Plate with Power
Outlet with a Flat Panel TV Bracket

Installation Instructions for New Construction:

1. Have a licensed electrician install a power outlet on the
wall at the location of the flat panel TV.
2. Once power has been turned off to the circuit, remove
the receptacle and wall plate installed by your electrician.
3. Align the left side of the template supplied below over the
left side of the electrical workbox then trace the opening
needed for recessed cable plate.
4. Connect the electrical wires to the back of the receptacle
on the Recessed Cable Plate (RCP) with Recessed
Power Outlet. Connect the hot line (black) wire to the
brass colored terminal or screw and the neutral (white)
wire to the silver colored terminal or screw. Be sure to
connect the grounding (green) or bare grounding wire to
the green colored terminal screw (see Figure 3).
5. For shock protection, this UR, UL recognized component
receptacle must be properly grounded.
6. Caution – use copper wire only with this receptacle.
See Final Instructions for New & Retrofit Installation.

Installation Instructions for Retrofit Only:

1. Determine the location of your flat panel TV mounting
bracket. Using the template supplied (see page 2), allow
for location of the stud when tracing the opening needed.
2. Using a drywall knife, cut a hole in the drywall the size of
the template.
3. Insert a single gang retrofit workbox (see Figure 2).
Securely fasten the workbox to the wall.
4. Switch the appropriate circuit breaker OFF or remove
fuse(s) before wiring. Run a source of power to this
workbox. Connect hot line (black) wire to brass colored
terminal or screw and neutral (white) wire to silver
colored terminal or screw. Be sure to connect grounding
(green) or bare grounding wire to green colored terminal
screw (see Figure 3).
5. For shock protection, this UR, UL recognized component
receptacle must be properly grounded.
6. Caution – use copper wire only with this receptacle.
See Final Instructions for New & Retrofit Installation.
Instruction / Installation Sheet
Figure 2 – Back View
Page 1 of 3
50-3321-WH-KIT
Figure 1 – Front View
3/23/10 Rev. 5
