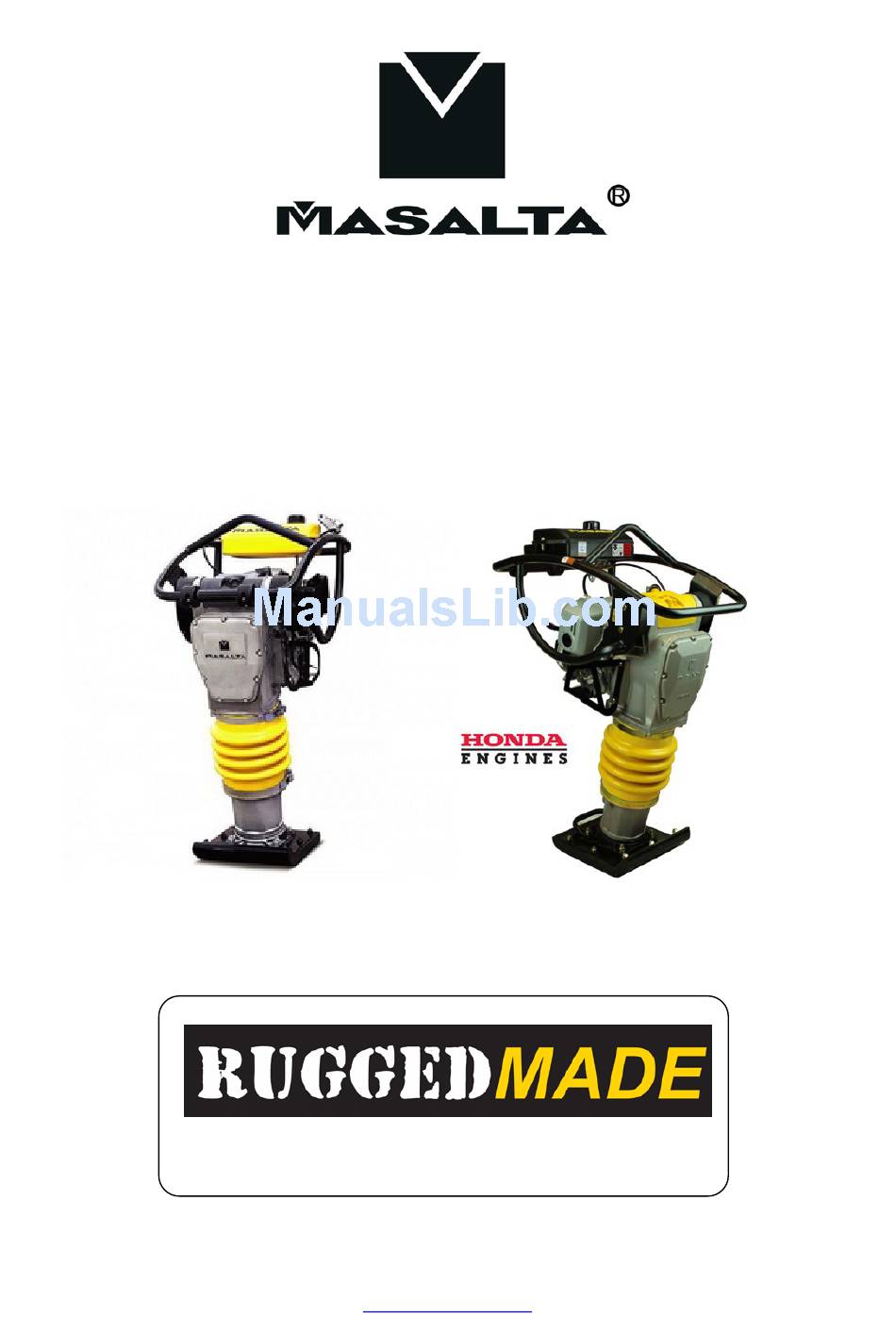

- Page 1 MR60H/MR68H TAMPING RAMMER OWNER’S MANUAL AND PARTS LIST Distributed By www.ruggedmade.com MASALTA ENGINEERING CO., LTD www.masalta.com.cn...
- Page 16 MR60-BOM01-B ITEM PART NO. DESCRIPTION ERP NO. REMARK GB5783-M8X30 BOLT M8X20-GB5783 20102105 GB93-8 SPRING WASHER 8-GB93 20509006 MRS80-804202 RETAINING RING 40504001 ONLY FOR HONDA GX100 MRS80-808001 LOCATING SLEEVE 40504070 KRB4 ENGINE MRS80-807000A CLUTCH DRUM 40506001 MRS80-808000C SPACE 40501001 GB13871-405208FB SEAL 40X52X8-FB GB13871 21106002 GB3452.1-95X3.1 O-RING 95X3.1-GB3452.1...
- Page 17 MR60-BOM01-B ITEM PART NO. DESCRIPTION ERP NO. REMARK MRS62-6000 VIBRATION DAMPER 41201002 GB5783-M8X20 BOLT M8X20-GB5783 20102101 GB5783-M8X30 BOLT M10X30-GB5783 20102105 MRS62-5003R BRACKET, RIGHT 40206002 MRS62-5003L BRACKET, LEFT 40206001 MRS62-5104H-LCA PROTECTIVE FRAME,LEFT 40207016 MRS62-5104H-RC PROTECTIVE FRAME,RIGHT 40207017 ONLY FOR ROBIN EH09 MRS62-5104H-R PROTECTIVE FRAME,RIGHT 40207161...
- Page 19 MR60-BOM02-B ITEM PART NO. DESCRIPTION ERP NO. REMARK MRS62-5001E HANDLE 50101001 GB5783-M6X16 BOLT M6X16 GB5783 20102053 GB93-6 SPRING WASHER 6 20509004 GB97.1-6 WASHER 6 20501005 GB889.1-M8 HEXAGONAL NUT M8 GB889.1 20405004 GB93-8 SPRING WASHER 8 20509006 GB6170-M6 NUT M6 GB6170 20401003 GB70.3-M6X16 BOLT M6X16 GB70.3...
- Page 21 MR60-BOM03-B ITEM PART NO. DESCRIPTION ERP NO. REMARK MRS80-801002 TANK CAP 40903048 MRS80-801003 PACKING, FUEL TANK 41201066 MRS80-801008W ELEMENT 41402003 MRS80-801004 HOLDER, COCK 41201067 MRS80-801005 PACKING, FUEL TANK 41201065 MRS80-801002W TANK CAP ASSY 40903001 91（86～90） MRS80-801007A OIL STRAINER 41402007 MRS80-801006 CONNECTOR 41101001 GB3452.1-14X3.55...
- Page 23 MR60-BOM04-B ITEM PART NO. DESCRIPTION ERP NO. REMARK GB3452.1-160×5.3 O-RING 160X5.3-GB3452.1 21101200 MRS62-3201 GUIDE CYLINDER 40505005 GB93-10 SPRING WASHER 10-GB93 20509008 GB70.1-M10×40 BOLT M10X40-GB70.0 20306158 MRS62-3204C-04 SCALEBOARD 40102001 MRS62-3204C BELLOW CLAMP 40101002 GB6170-M8 NUT M8 GB6170 20401004 GB5783-M8X35 BOLT M8X40-GB5783 20102106 MRS62-3203 BELLOW...
- Page 25 MR60-BOM05-B ITEM PART NO. DESCRIPTION ERP NO. REMARK GB889.1-M10 HEXAGONAL NUT M10-GB889.1 20405006 GB93-10 SPRING WASHER 10-GB93 20509008 GB93-12 SPRING WASHER 12-GB93 20509009 GB889.1-M12 HEXAGONAL NUT M12-GB889.1 20405007 MRS62-2000-1 FOOT 50106002 MRS80-802005 SCREW M10X52 20103001 MRS80-802004-70 SCREW M12X70 20103002 MRS80-802004-75 SCREW M12X75 20103003 MRS62-2000...
- Page 28 20602008 MRS80-804302 RETAINING RING 40504003 GB93-8 SPRING WASHER 8-GB93 20509006 GB5783-M8X25 BOLT M8X25-GB5783 20102102 MRS80-804002B GEAR COVER 40903002 FOR MR68H MASALTA MRS80-804002B-Z GEAR COVER 40903019 FOR MR68H NEUTRAL GB97.1-6 WASHER 6-GB97.1 20501005 GB93-6 SPRING WASHER 6-GB93 20509004 GB5783-M6X20 BOLT M6X20-GB5783...
- Page 29 MR68H-BOM01-B ITEM PART NO. DESCRIPTION ERP NO. REMARK GB5783-M8X30 BOLT M8X30-GB5783 20102105 GB276-6204 BEARING 6204-GB276 21001059 MRS80-804102 RETAINING RING 40504002 GB3452.1-43.7X1.8 O-RING 43.7X1.8-GB3452.1 21101004 MRS80-804004 BEARING COVER 40502001 MRS80-805002/L PROTECTION FRAME, LEFT 40207007 GB6173-M12X1.25 NUT M12X1.25 GB6173 20407002 MRS80-809006 WASHER 40504008 MRS80-809000B CLUTCH ASSY.
- Page 31 MR68H-BOM02-B ITEM PART NO. DESCRIPTION ERP NO. REMARK MRS80-801002 TANK CAP 40903048 MRS80-801003 PACKING, FUEL TANK 41201066 MRS80-801008W ELEMENT 41402003 MRS80-801004A HOLDER, COCK 41201067 MRS80-801005 PACKING, FUEL TANK 41201065 MRS80-801002W TANK CAP ASSY 40903001 75（70～74） MRS80-801007A OIL STRAINER 41402007 MRS80-801006 CONNECTOR 41101001 GB3452.1-14X3.55...
- Page 33 MR68H-BOM03-B ITEM PART NO. DESCRIPTION ERP NO. REMARK GB3452.1-160×5.3 O-RING 160X5.3-GB3452.1 21101200 MRS80-803201B GUIDE CYLINDER 40505001 GB93-10 SPRING WASHER 10-GB93 20509008 GB5783-M10X35 BOLT M10X35-GB5783 20102155 GB3452.1-160×3.55 O-RING 160X3.55-GB3452.1 21101153 MRS80-803204D BELLOW CLAMP 40101001 MRS62-3204C-04 SCALEBOARD 40102001 GB6170-M8 NUT M8 GB6170 20401004 GB5783-M8X40 BOLT M8X40-GB5783...
- Page 35 MR68H-BOM04-A ITEM PART NO. DESCRIPTION ERP NO. REMARK GB889.1-M10 HEXAGONAL NUT M10-GB889 20405006 GB93-10 SPRING WASHER 10-GB93 20509008 MRS80-802000-1 FOOT COMPONENTS 50201013 GB93-12 SPRING WASHER 12-GB93 20509009 GB889.1-M12 HEXAGONAL NUT M12-GB889 20405007 MRS80-802005 SCREW M10X52 20103001 MRS80-802004-70 SCREW M12X70 20103002 MRS80-802004-75 SCREW M12X75 20103003...
