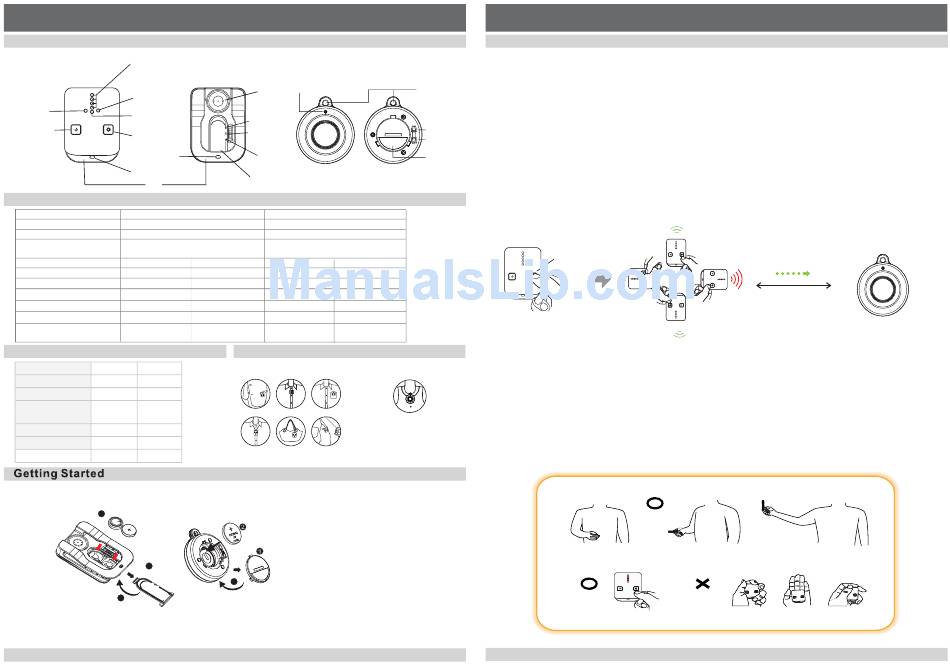

Ardi KiD Tracker 405K User Manual

KiD Tracker User Manual
Front & Rear View
Parent's Unit
Distance
indication
Front
Direction Indicator
(Also served as
Direction Indicator
Status Indicator
(Also served as
for Kid's unit 2)
Status Indicator for
Kid's unit 2)
Cinnection Status
Search button 1
Search button 2
for Kid's unit 1
for Kid's unit 2
(Also served as
(Also served as
unmute button for
unmute button for
Kid's unit 2)
Kid's unit 1)
Hanging hole
for strap
Clip
Specification
Model Name 405K ( 1 to 1)
Function Search & Alarm
Search Range 0~500m/1600ft
Short Distance : 10±5m/33±16ft
Alarm Distance
Long Distance : 55±5m/180±16ft
Parent's Unit / Kid's Unit Parent (M05AM)x1
Battery Type LR44
Battery Life Time with Standby 30 days (8 hrs)
60~90 days
Battery Life Time with Sleep
Beep Sound (at 10cm/3.9inch) 95 db
Virbration Vibration Motor
52.8x39x13.2mm
Dimension (L/W/H)
2x1.6x0.52inch
Package Contents
405K 405K2
Model Name
1 pc 1 pc
Parent's Unit
1 pc
Kid's Unit 2 pc
LR44x2
LR44x2
Batteries
CR2032x1 CR2032x2
Strap 2 3
Kid's unit Jacket 1 2

User manual 
1.For the first time use, please insert the batteries into the Parent's unit and the Kid's unit according to the battery
installation instruction as follows.
- Kid's unit
- Parent's unit
2
1
3
2. Switch the power button of the Parent's unit and the Kid's unit to "ON", it will enter "Search Mode", please press
search button 1 or 2 to enter "Standby mode".
3. Place the Kid's unit onto your kids, and take the Parent's unit with you or clip it on your belt.
Kid's Unit
Front
Back
Connection Status
Buzzer
Long Distance
Short Distance
Power off
Battery cover
405K2 (1 to 2)
Search & Alarm
0~500m/1600ft
Short Distance : 10±5m/33±16ft
Long Distance : 55±5m/180±16ft
Kid (S04A)x1 Parent (M05AM)x1 Kid (S04A)x2
CR2032 LR44 CR2032
30 days (8 hrs) 20 days (8 hrs) 20 days (8 hrs)
60~90 days
60~90 days 60~90 days
95 db 95 db 95 db
None Vibration Motor None
Diam 45xW 12mm 52.8x39x13.2mm Diam 45xW 12mm
Diam1.77x0.47inch 2x1.6x0.52inch Diam1.77x0.47inch
Suggested Setting place
Parent's Unit
1. For Master unit: Slide out the battery cover.
For Slave unit: Take off the battery cover
by coin.
2. Insert batteries (included) following
the polarity markings in the battery
compartment.
3
3. Close the battery compartment cover
as shown.
Page 1
Search
One Kid's unit only: To search the Kid's unit, please press the "Search button 1" on the Parent's unit once.
Two Kid's units: To search the Kid's unit 1, please press the "Search button 1" on the Parent's unit once.
Back
To search the Kid's unit 2, please press the "Search button 2" on the Parent's unit once.
Hanging Hole
Once you press the "Search button" on the Parent's unit, the signal status, right and left LED on the Parent's unit will
start to blink (which tells you the parent's unit is linking to the kid's unit now). Same as the signal strength LEDs on
the Parent's unit, which indicates distance, will start to blink at the same time.
Power On
After you press the search button, sway the parent unit at a slow speed from your right side to left side, then reverse
Power Off
from left side to right side twice to collect signal strength from all directions. After second you sway, the parent unit to
the correct direction, both (left and right) status LEDs will be lit and start blinking. You can move forward to search for
Battery
your kid now.
Cover
The closer the distance is between the Parent's unit and the Kid's unit, more signal strength LED lights are lit and the
melody on the Parent's unit will become more rapid. Contrarily, less LED lights are lit and the melody on the Parent's
unit becomes slower. Press the "Search button" on the Parent's unit again to stop searching.
Press and
release
Search Tip:
Kid's Unit
a.) Kid Tracker might experience interference & loss of signal strength in crowded location such as busy shopping mall,
amusement park . It is important to teach kids to go to an open area and stay there until their parents show up.
b.) While searching, always place the parent's unit in front of your chest and turn around your body slowly to find the
correct direction. If you point at the correct direction, both status LEDs will be lit and blinking.
c.) If the distance between the Parent's unit and the Kid's unit is out of detectable range, the Parent's unit beeps every
second to remind you.
d.) While searching, the Kid's unit makes a 95db beep sounds every second. This can assist you in finding its position
by tracking the sound when the Parent's unit and the Kid's unit are nearby.
*** Do not sway Parent's unit. Parent's unit is always in front the body when take a turn.
*** Do not cover the top side of Parent's unit
KiD Tracker User Manual
working range 0~500m/1640ft (line of sight)
(the distance may be short depends on the
terrain environment )
.
During Search
Correct
Holding
.
Holding Way
Correct Wrong
Holding Holding
r.
Page 2
