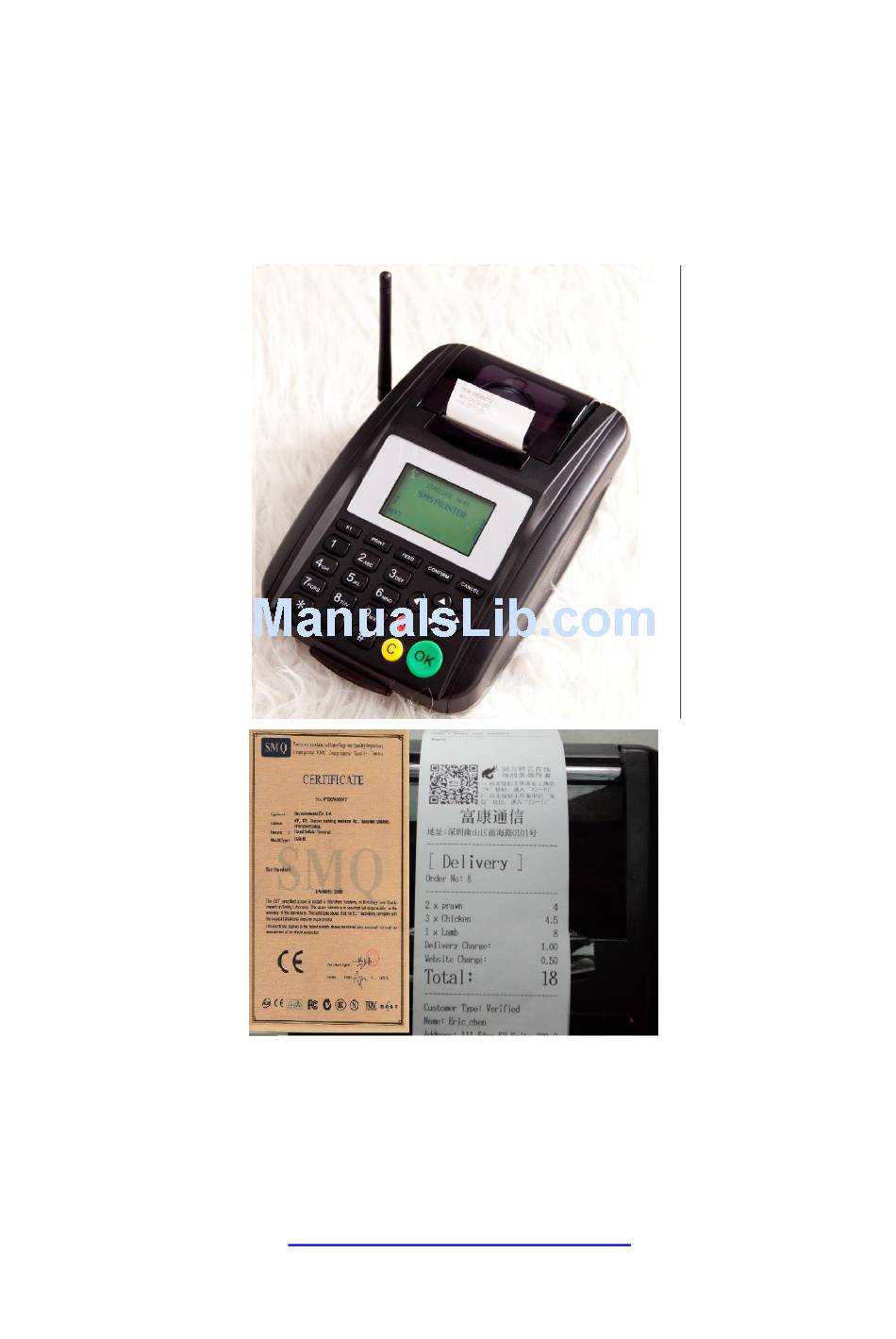

- Page 1 SMS/GPRS Printer FCS10 User Manual V1.9 SKY MICROWAVE Http://www.Skymicrowave.com...
-
Page 2: Table Of Contents
Contents 1. Product introduction ..........................3 1.1 Application about SMS/GPRS Printer ..................3 1.2 Main functions and properties ....................3 1.3 Package list ..........................3 1.4 Specification ..........................4 1.5 Button function introduction ......................5 2. Installation ............................6 2.1 Insert SIM card ...........................6 2.2 Install the thermal print paper ....................6 2.3 Install antenna ..........................6 2.4 Power on .............................6 2.5 Screen Display in Standby Mode ....................6... -
Page 3: Product Introduction
1. Product introduction 1.1 Application about SMS/GPRS Printer As a fast growing industry, buy via internet today is attracting more clients because of its many advantages such as convenience and time saving etc. as computer and mobile communication industry become more perfect technically and their application more popular. -
Page 4: Specification
1.4 Specification Item Specs Access mode MT6252A Flash GSM850 869-894MHz E-GSM900 925-960MHz Frequency DCS1800 1805-1880MHz PCS1900 1930-1990MHz Sensitivity -104dbm GSM850 824-849MHz RF transmitting E-GSM900 880-915MHz frequency DCS1800 1710-1785MHz PCS1900 1850-1910MHz 33 dBm ±2 dBm GSM850 33 dBm ±2 dBm E-GSM900 Transmitting power 30 dBm ±2 dBm DCS1800... -
Page 5: Button Function Introduction
1.5 Button function introduction Button Function description Fast key，press the key to enter into menu "order management". Print In idle status, press the key3 seconds, it will print test page. When it is set "manual print" and receives an order, press the button to print a new order. Feed Move the paper forward Confirm... -
Page 6: Installation
2. Installation 2.1 Insert SIM card Open the small cover in shape of “凸”at the bottom of the SMS Printer, insert the valid SIM card. 2.2 Install the thermal print paper Open the dome cover at the top, install the thermal paper. 2.3 Install antenna Connect the antenna to the antenna interface at the left side of the sms printer, screw it clockwise. -
Page 7: Menu And Its Configuration
3. Menu and its configuration In standby mode, press “confirm” , then press ▲▼ to select: SMS Printer－Phone book—Messaging—Call Center－organizer－settings－ User Profiles. Select “settings” and press “confirm”, you can change “time and date”. Select “SMS Printer” and press “confirm”, input password 123456, you can enter into menu of sms printer. -
Page 8: Menu Details
Note: Press “#” button to change input method such as “ABC”, “abc”,”123”. Press “＊” to input special symbols such as ∕﹕？ 3.3 Menu details Menu Menu 1 Menu2 Menu3 description Display Setting Logo Setting Logo display when power Printer on，32 letters at most. Idle Screen Display Logo display in idle status，... - Page 9 SMS Printer from receiving many garbage message. If set *, it will receive sms from all numbers. GPRS Setting GPRS Open Time 09:00 Starting time when a sms printer begins to get new order from server GPRS. GPRS End Time 22:00 Ending time when sms printer will stop to take...
- Page 10 Memory status Copy Copy phone number from contacts SIM to phone or from phone to SIM Move Move phone number from contacts SIM to fixed phone or from fixed phone to SIM Delete Delete all number in SIM contacts and fixed phone Messaging Write message Send to...
- Page 11 Common settings Delivery report Reply path Save sent message Memory status phone Preferred storage phone Preferred PreferGPRS connection PreferGSM GSM Only Call center Call history Missed calls View Call Send text message Save to phonebook Edit before Call Delete Dialled calls View Call Send text...
- Page 12 Delete call logs Dialled calls Missed calls Received calls All calls Call settings Advanced settings IP dial Call time Remind… Answer mode Organizer Alarm 00:00 【▲】 （＋） 、 【▼】 （－） 、 Calculator 【 】 （×） 、 【 】 （／） Settings Phone settings Time and date home...
-
Page 13: Order Receiving And Processing
settings ChangePIN ChangePIN2 Phone security Phone lock Change password Auto keypad lock 5sec-5min Connectivity Restore factory Settings User Caller ringtone change profiles save To use 【 】 【 】 to adjust Ringtone volume volume. Message change save Message volume Key Tone System Tone Services 4. -
Page 14: Order Printing
SMS server Send rejection message Send confirmation to (WEB server) to server server Send new order to printer by SMS or printer get new order from server via GPRS Receiving new order Print phone number Print rejection info by SMS or GPRS and delivery time Print order... -
Page 15: Order Processing
4.4 Order processing When an order is downloaded from server by Printer, it is usually printed out automatically, then it waits for you to process. 1. If you accept the order, press the button 'OK', input delivery time. For example，delivery time is 12:20, then input 1220. Then press “confirm”. The SMS printer will reply a message automatically: “status=accepted&restid=20&ordernumber=123&deliverytime=12:20”... -
Page 16: Order Format Example
“OK’ or “C”, you can switch off printer, install thermal paper, switch it on, the printer will reprint the order, you can continue to process; if you have pressed ‘OK” or “C”, wish to print one more copy, press the button ”Fn” to find the processed order in the menu “order management”, print it out by pressing the button “PRINT”. -
Page 17: How To Use Parameters Tools
6. How To Use Parameters Tools 6.1 Parameters making and download (1) Decompress file (2) Click into folder “Parameters Tools” (3) Click “SMS Printer setting Parameters Tools.exe”... -
Page 18: How To Print Page Header And
(4) Fill in parameters (5) Connecting SMS Printer to computer with USB cable and switch on printer. (6) In device management of your computer, check USB port number, for example In this case, select COM port as (6) If Click “Export”, the parameters will be exported and stored in a file “Config”. (7) If Click “Download”, the setting parameters will be downloaded to SMS Printer. -
Page 19: Downloading Firmware And Settings By Air
WWW.GOODFOOD.COM/r/s/LPizza Place/r/s/L123 North Load/r/s/LShen Zhen /r: change line /s:small fonts /l: big fonts /L: Alignment at Left /R:Alignment at Right /C: Alignment in Center 7. Downloading firmware and settings by air Until now, SMS Printers from other suppliers can only download orders in server via GPRS, but have no functions to download firmware and settings parameters via GPRS. -
Page 20: Phone Function
8 Phone Function 8.1 Making a call ，dial phone number, after finished, Method 1：Press Hand free button waiting for 3 S, the device will automatically send the number. Method 2： Dial phone number， click "CONFIRM" button, select“Call” in menu。 8.2 Receiving a call When there is a incoming call, it rings, and displays caller's number on screen (If the caller's number is in phonebook, it displays caller's name).
