Summary of Contents for Discovery Telecom 4483000

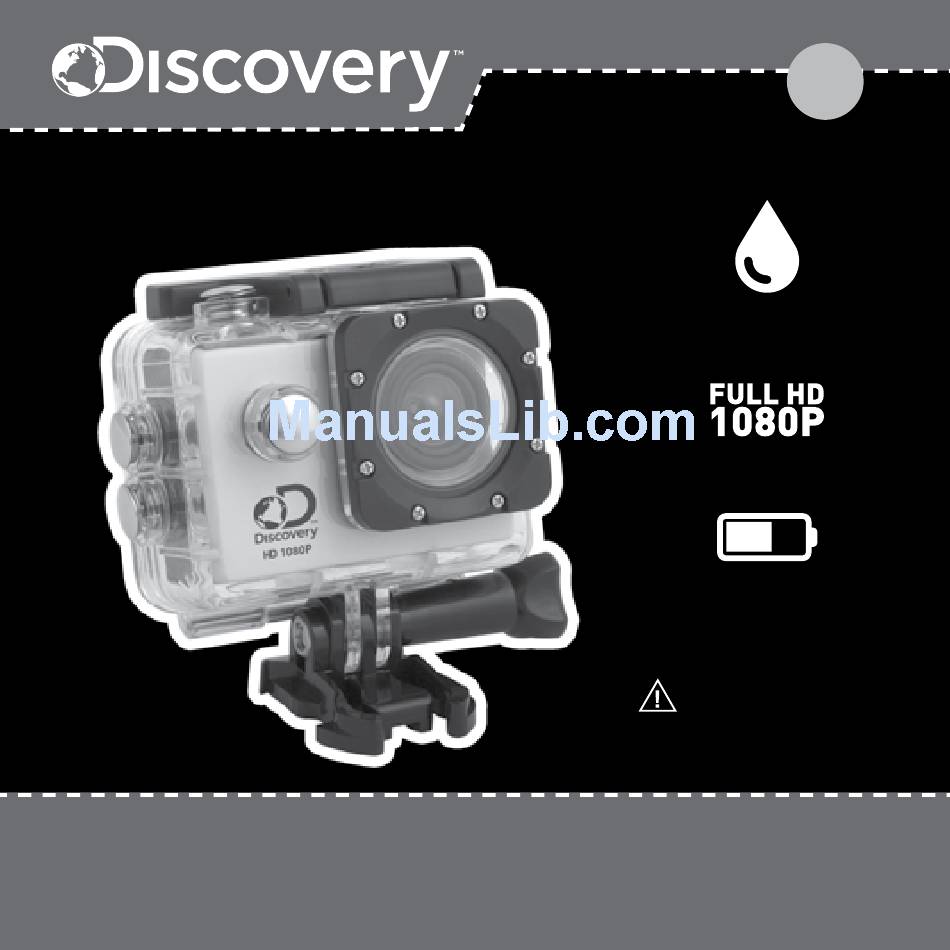

- Page 1 AGES INSTRUCTION MANUAL Waterproof Case to 30m 1920 x 1080 Last up to 70 Minutes WARNING: CHOKING HAZARD — Small parts. Not for children under 3 years. HD Action Camera HD Action Camera 1080p Camera & Waterproof Case...
-
Page 2: Intended Use
About this Instruction Manual Please read the safety instructions and the operating instructions carefully before use. Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product. -
Page 3: Notes On Cleaning
Notes on Cleaning Turn off the camera. Clean the eyepieces and/or lenses only with a soft, lint-free cloth, (e.g. microfibre cloth). To avoid scratching the lenses, use only gentle pressure with the cleaning cloth. Only use a dry cloth to clean the exterior of the device. To avoid damaging the elec- tronics, do not use any cleaning fluid. - Page 4 CONTENTS...
- Page 5 1080p Camera Waterproof Case Flat Adhesive Mounts Handle Bar/Pole Mount Frame Housing Mount Velcro Straps Long Thumb Screw Quick Release Buckle Pivot Mounts Short Thumb Screw USB Cable...
-
Page 6: Product Features
INSTRUCTIONS Product Features • A water-resistant casing that allows you to film fascinating water sports: Water-resistant up to 100 ft. (30 metres) underwater. • High definition screen that displays and replays fascinating videos that have been recorded. • Rechargeable battery that is easy to replace and prolongs your camera’s service life. •... - Page 7 Microphone MicroSD Shutter/Select Button Status Light Slot Zoom Micro USB Charging In/Up Port Status Light Button Zoom Out/Down Button Power/Mode Button Battery Door Operating 1. Inserting Micro SD card Note: For best performance, please choose a branded Micro SD card and format it on your computer before use.
- Page 8 INSTRUCTIONS 2. Installing or removing the battery A. Press on the battery cover to open it. B. Correctly install the battery into the camera. C. Remove Battery: Simply open battery cover to take the battery out. 3. Charging A. Charging can be done with the power adapter or by connecting the action camera to a computer via the usb cable.
- Page 9 Camera mode Description Video recording Video, Loop Recording, Motion detect mode Photo shooting mode Single, Photo timer, Burst, Time lapse Play back content on the TFT display or Play back mode on a TV via HDMI cable. Settings Adjust all camera settings 6.
-
Page 10: Mounting The Camera
MOUNTING THE CAMERA How to Open and Close the Waterproof Case How to Open: Press and hold down switch (1) and then use the arrow (2) to open the clamp (3). How to Close: Press the case door all the way down (1) and then snap the clamp to the hinge (2). - Page 11 Base Mount Example...
- Page 12 MOUNTING THE CAMERA Helmet Mount Example...
- Page 13 Pole/Bicycle Mount Example...
- Page 14 INSTRUCTIONS Settings Video Resolution Change video resolution (1920X1080 recommended) Picture Resolution Change Picture resolution (12M - 4032X3024 recommended) Photo Timer Off / 2s / 5s / 10s Burst Off / 3 Picture / 5 Picture Time-lapse Single / 3s / 5s / 10s Time Stamp Off / On Motion Detect...
- Page 15 Audio Record Off / On EV (Exposure value) +2/3 / +1/3 / +0.0 / -1/3 - 2/3 / -1.0 / -4/3 / -5/3 / - 2.0 Delete Delete One / Delete All Protect Lock One / Unlock One Lock All / Unlock All Format All data on the sd card will be deleted...
-
Page 16: Technical Data
INSTRUCTIONS Technical Data TFT Display 1.5 in. (3.81 cm) display Lens 140° wide angle Waterproof case Resistant up to 100 ft. (30 m) Language options English / German / French / Spanish / Italian / Portuguese / Chinese Traditional / Chinese Simplified / Japanese / Russian Resolution of photos 12 MP (4032x3024),... - Page 17 Storage Micro SD card up to 32 GB possible Shooting mode Single shot / Self-timer (2s/5s/10s) Frequency of optical source 50Hz/60Hz USB interface USB 2.0 Power source interface 1000 mA Battery capacity 800 mAh Power dissipation 400mA@4.2V Recording time About 70 minutes (at 1080p) Charging time About 3 hours Operating systems (OS)
- Page 18 NOTES...
- Page 20 ©2017 Discovery Communications, LLC. Discovery and the Discovery logo are ™ ™ trademarks of Discovery Communications, LLC, used under license. All rights reserved. discoverykids.com ©2017 Explore Scientific, LLC, a Journey North Company. 1010 S. 48th Street, Springdale AR 72762 All rights reserved. explorescientificusa.com | exploreone.com | 866.252.3811 Made in China CONFORMS TO THE SAFETY REQUIREMENTS OF ASTM F963...
