- Page 1 Operation Guide Version 2.0, December 2016...
- Page 2 Document Revision History Revision Date Description v1.0 January 8, 2016 Initial release of COLR Operation Manual, based on firmware version 1.0.1 CONTENTS Contents ........................................2 Physical ........................................4 Button Operation ....................................5 Status Joystick ......................................5 Menu Joystick ......................................5 Reset button ......................................
-
Page 3: Table Of Contents
Connect via USB ....................................7 Control COLR ......................................7 Web UI ........................................7 Color Management .................................... 7 Video Settings (COLR Duo Only) ................................ 8 Camera Control ....................................9 Network Configuration ..................................9 System Settings ....................................9 Front Panel ......................................9 3D LUT Settings .................................... -
Page 4: Physical

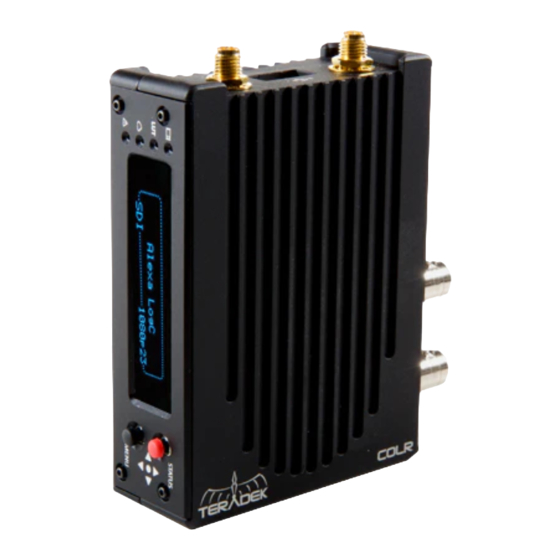

PHYSICAL A. USB Port (top) G. Wi-Fi antennas (top) M. 3D LUT status B. 6-28V DC Input H. Mini-B USB port N. Video Status C. 10/100/1000 Ethernet port HDMI output O. Menu joystick D. SD/HD/3G-SDI output HDMI input P. Status joystick Reset button K. -
Page 5: Button Operation
1 (Closest to the red dot) +DC (6-28V) CUSTOM / 3RD PARTY CABLES • Test the power cable polarity with ONLY the power cable connected to COLR. Do not connect video cables. • Check the power cable for shorts and proper grounding. •... -
Page 6: Physical
HDMI output to your monitor. Both HDMI and SDI outputs are active regardless of the input signal. CONNECT TO COLR COLR has a built in web interface for managing color presets and device settings. Access the interface via Wi-Fi, Ethernet, or a direct USB connection. -
Page 7: Connect To A Wired Network
COLR’s Color Management menu allows you to select 3D LUT and CDL files stored on your computer and save them to the device. These presets can be applied to COLR’s video output by using this menu or the device’s front panel. Up to 32 looks can be stored on the device. -
Page 8: Video Settings (Colr Duo Only)
VIDEO SETTINGS (COLR DUO ONLY) The Video Settings menu allows you to individually configure COLR Duo’s two SDI outputs. The outputs can be set connected to one of two color processing channels, or to the original SDI input signal. Each color processing channel is configured on the Color Management page or by a remote grading app. -
Page 9: Camera Control
RED DSMC line, ARRI Alexa, Alexa Mini, and Amira, Vision Research Phantom, and more. A. RED EPIC, SCARLET – After enabling Camera Link mode on COLR, there are a few settings on the camera that must be checked. -
Page 10: 3D Lut Settings
LiveGrade is an application developed by Pomfort for on-set look creation and color management. LiveGrade has integrated support for remote control of multiple COLR devices. Use the following instructions to prepare LiveGrade for use with COLR. For the most up- to-date information about COLR’s functionality with LiveGrade, consult their guide:... -
Page 11: Using Colr With Livegrade
STORING PRESETS In addition to Live color grading, LiveGrade looks can also be saved directly to COLR from within the app. To do so, right click a look in the Clips and Looks window and select Permanently Store Look on > Teradek Device at x (depends on which slots have associated COLR devices). -
Page 12: Saving The Current Look
SAVING THE CURRENT LOOK To quickly store the active look on COLR, select Device > Permanently Store Looks on Devices from the top menu. Your look will be saved as a preset named Last Permanent, which becomes active as soon as the look is saved.
