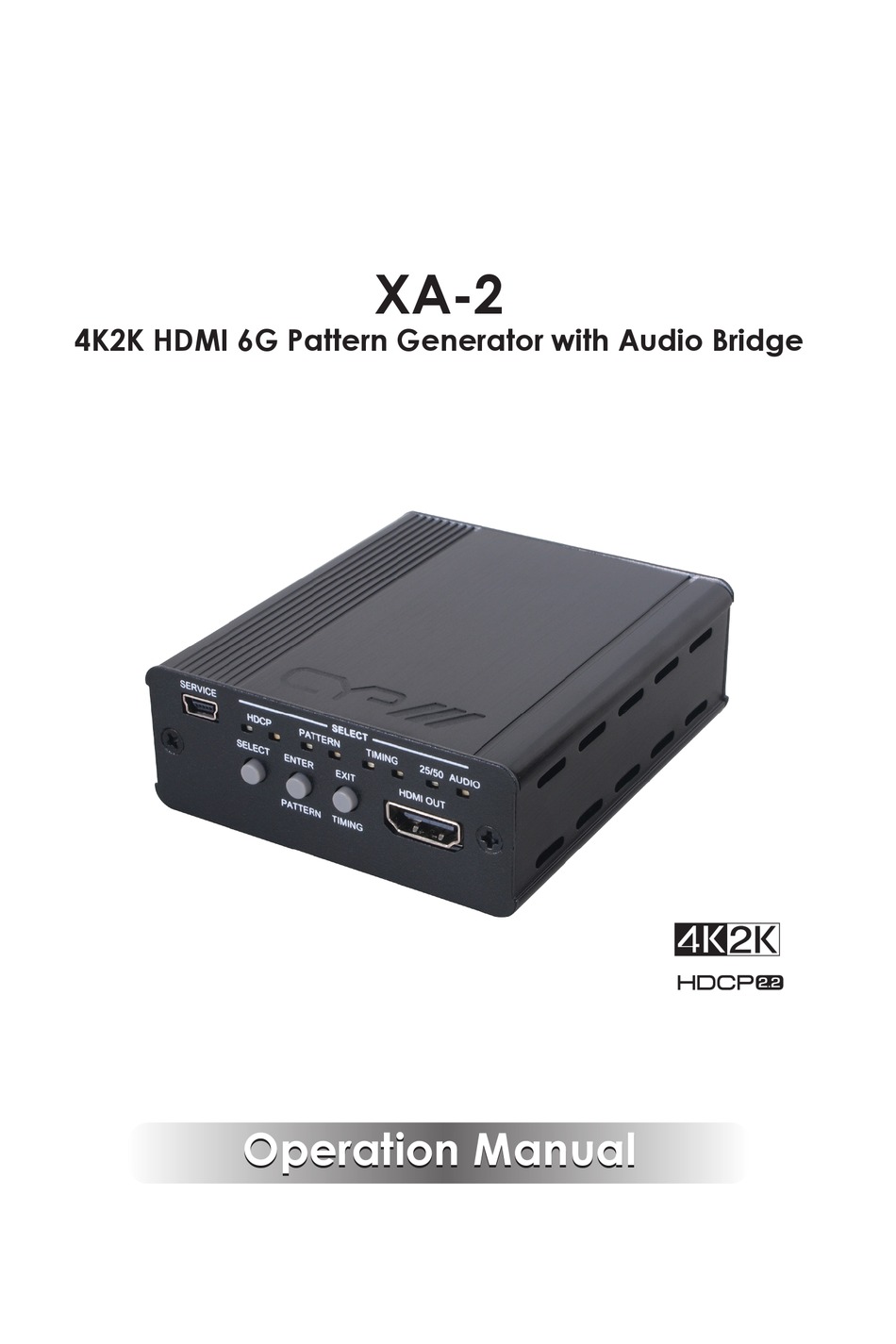

- Page 1 CPLUS-11HB XA-2 4K2K HDMI 6G Pattern Generator with Audio Bridge Operation Manual Operation Manual...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements .......1 5. Features .............1 6. Operation Controls and Functions ..2 6.1 Front Panel ...........2 6.2 Rear Panel ..........3 7. Connection Diagram .......5 8. Specifi cations ...........6 8.1 Technical Specifi... -
Page 5: Introduction
1. INTRODUCTION The 4K2K HDMI 6G Pattern Generator with Audio Bridge is an advanced and convenient tool for generating HDMI 6G signals for testing HDMI devices. With 6 built-in settings covering Ultra HD and Full HD resolutions, 4 test patterns, HDCP (1.4, 2.2 and non-HDCP) and 2 audio types each providing a large array of test patterns, and incorporates both digital and analog audio inputs for embedding into an HDMI output. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel AUDIO IN O.V.P DC 5V OPTICAL POWER AUDIO IN L/R: Connect from audio source equipment with L/R cables. AUDIO IN OPTICAL: Connect from audio source equipment with optical cable. POWER: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 7: Rear Panel
6.2 Rear Panel SELECT SERVICE HDCP PATTERN TIMING 25/50 AUDIO SELECT ENTER EXIT HDMI OUT PATTERN TIMING SERVICE: This slot is reserved for factory use only. SELECT LED: These LEDs will illuminate according to the selection. Each selection with 2 LEDs of 3 colors, left LED is blue and right LED are red or green. - Page 8 press ENTER (to select HDCP) → press SELECT 2 times (to select HDCP2.2/Blue LED) → press ENTER (to confi rm HDCP selection) → press SELECT again (to enter into PATTERN selection)→ press ENTER (to select Patter) → press SELECT twice (to select Blue Scale/Blue LED) →...
-
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player AUDIO IN O.V.P DC 5V OPTICAL POWER SERVICE SELECT HDCP PATTERN TIMING 25/50 AUDIO SELECT ENTER EXIT HDMI OUT PATTERN TIMING Amplifi er or HD TV... -
Page 10: Specifi Cations
8. SPECIFICATIONS 8.1 Technical Specifi cations Video Bandwidth 600MHz/18Gbps Input Port 1 x L/R (RCA) 1 x Optical 1 x USB(Service) Output Ports 1 x HDMI Supported Resolutions 720p@50/60, 1080p@50/60, 4K2K@25/30/50/60 HDMI Cable Length 5M/4K2K@25/30/50/60 5M/1080p@50/60 Support Digital Audio 48kHz Output Sampling Rate Support Analog Audio 2Vrms Power Supply...
