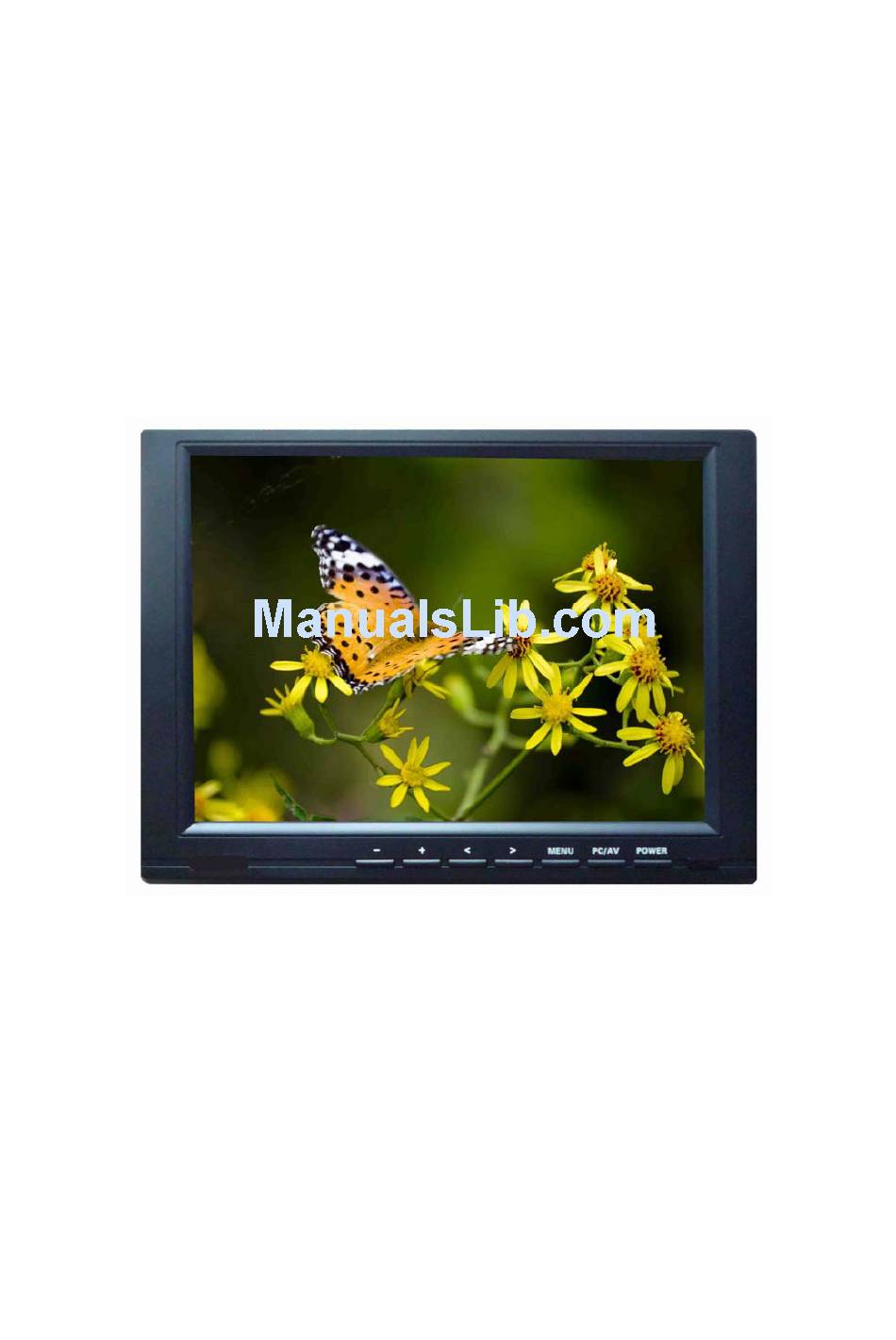

- Page 1 TFT LCD COLOR MONITOR CL1045N/CL1045NT...
- Page 2 DEAR CUSTOMERS Thank you for purchasing the liquid crystal display monitor. This product employs new integrate circuits and high quality TFT LCD modules. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with.
-
Page 3: Table Of Contents
CONTENTS 1. PRODUCT DESCRIPTION -------------------- 2. REMOTE CONTROLLER --------------------- 3. MENU OPERATION ---------------------------- IN AV MODE-------------------------------------- IN PC MODE-------------------------------------- IN DVI&HDMI&YPBPR MODE-------------- 4. MATCHED CABLES------------------------- 5. ACCESSORIES ------------------------------------ 6. PARAMETER -------------------------------------- 7. TROUBLESHOOTING --------------------------- 8. REMARK----------------------------------------... -
Page 4: Product Description
1. PRODUCT DESCRIPTION Picture 1 2 3 4 5 6 7 8 18 17 16 15 14 13 11 10 9 1. - : Volume down or to adjust the value of setting function 2. +: Volume up or to adjust the value of setting function 3. -
Page 5: Remote Controller
16. Audio L/R input 17. Audio L/R output 18. USB input(Touch connector) 2. REMOTE CONTROLLER Picture 2 : POWER ON/OFF : MUTE : Display inputted mode : To activate OSD menu : Volume down or to adjust the value of setting function : Volume up or to adjust the value of setting function : To select function on OSD : To select function on OSD... -
Page 6: Menu Operation
3. MENU OPERATION After connecting power, the unit will be in standby state. Press ”POWER” on the unit or on the remote controller, the buttons of the unit will light, the POWER is red ,the others are blue, at that time the unit begins to work. Press the same button again the unit will return to its standby state (Note the blue button will black out in 5 or 6 seconds soon after you turn off unit.). - Page 7 select , then push +/ - of the unit or on the remote controller to adjust the level of saturation as your desire. Press “</>”on the unit or “ ” on the remote controller to select TINT: then push +/ - of the unit or on the remote controller to adjust the hue of image as your desire.
-
Page 8: In Pc Mode
up to 100 seconds. （switch-on long term, and recovering when switch-off） EXIT OSD: You can press “</>”on the unit or “ ” on the remote controller to select , and then press “+/-”of the unit to select “YES” and it will exit the OSD. - Page 9 to select . Then push +/ - of the unit or on the remote controller to adjust the range of image as your desire. OSD H-POSITION: You can press “</>”on the unit or “ ” on the remote controller to select , Then push +/ - of the unit or on the remote controller to adjust the OSD position in horizontal direction as your desire.
- Page 10 You can press “</>”on the unit to select the item demanded among , (in line: exit OSD, OSD H- position, OSD V-position , OSD DURATION , OSD AUTO COLOR )and the selected items background will be yellow and the explanation of the item will display in the window which on the right side of the OSD menu .
-
Page 11: In Dvi&Hdmi&Ypbpr Mode
up to 100 seconds. （switch-on long term, and recovering when switch-off） OSD AUTO COLOR: If you select “YES” it will be automatic color system or not, you can adjust the saturation of color and tint of color to adjust the color as your favorite operate as motion follows. - Page 12 which on the right side of the OSD menu . For touch screen function please download the driver for touch screen from our website 。Then press “</>”on the unit or “ ” on the remote controller to select other item to adjust or to select exit the OSD.
-
Page 13: Matched Cables
select , Then push +/ - of the unit or on the remote controller to choose “YES “ and it will reset to original mode , after that you can reset adjustment of the unit as your desire once more OSD COLOR TEMPERATURE RESET COLOR TEMPERATURE: You can press “</>”on the unit or “... -
Page 14: Accessories
VIDEO&AUDIO input/output cable VIDEO 1 output VIDEO 2 output VIDEO signal input 5. ACCESSORIES 4 pin Y/C signal cable 1 piece HDMI signal cable 1 piece Touch pen 1piece Drive disk 1piece Remote control 1piece 1piece DVI line 24+1/DVI-D VGA15-pin cable 1piece VIDEO&AUDIO input/output cable 3 piece... -
Page 15: Parameter
6. PARAMETER Panel TFT LCD 10.4’’ (3642 mm) Physical Resolution 800×600 (up to 1920×1080) Brightness 250cd/㎡ Viewing Angle 130°/ 110°(H/V) Color System PAL-4.43,NTSC-3.58 Input Voltage DC 12V Input Signal AV1,AV2,YPBPR, S-video PC(VGA), HDMI, DVI Power Consumption ≤8W Audio Output ≤1.2W Contrast 400:1 Size(LWD): mm...
