Tibbo DS1100 Quick Installation Manual

Tibbo DS110X Serial-over-IP Controller
Quick Installation Manual
1.

Device Overview

The DS110X are a series of serial-over-IP controllers with many
options ranging from WiFi to OLED display. The device can also
be turned into a Tibbo BASIC programmable device when loaded
with TiOS firmware.
Features

Configurable multi-port RS232 or RS232/422/485 , up to
460kbps *

Web-based configuration over Ethernet or WiFi

802.11b/g WiFi with WEP, WPA, WPA2 security modes **

OLED display for status monitoring (Optional)

Power over Ethernet (Optional)
* Varies depending on model ** DS1100 supports WEP only
2.

Device and Accessories Checklist

Please verify the following contents in the product package before
installation.

Power adapter

Quick Installation Manual

Din-Rail mounting kit
3.

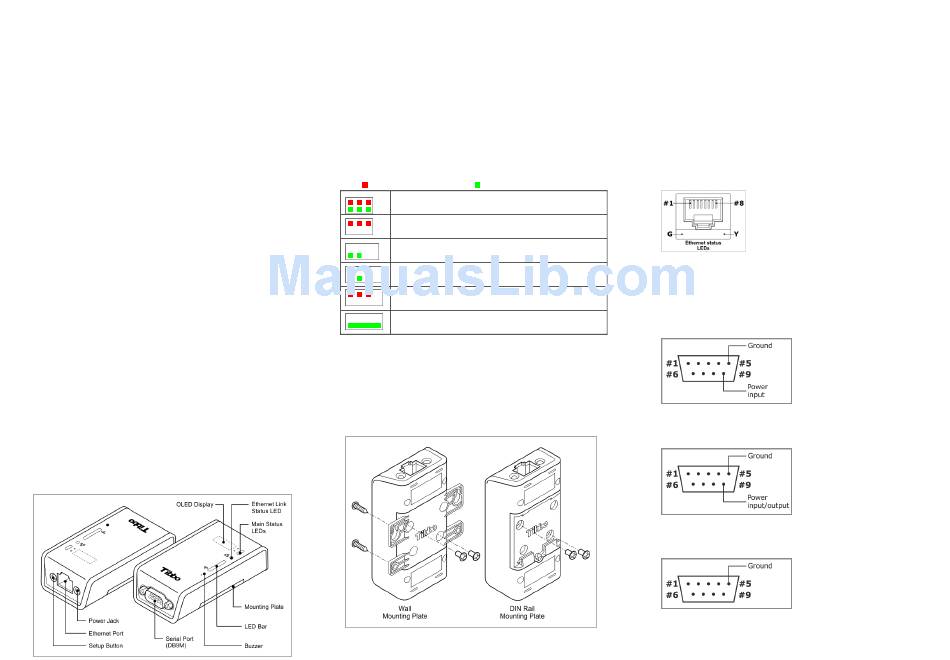

Status LED

Ethernet Link LED: Amber when Ethernet is connected
Wireless LED Bar: WiFi strength indicator, increasing from 1 to 5
5 being strongest
Setup Button: 1. Scrolls through the status menu on the
OLED display
2. Hold for 5 second to enter "serial
programming mode", release and hold for 5
seconds again to restore to factory presets.
Status LED: Device status indicator
Red LED (top row) Green LED (bottom row)
Power up pattern.
Error Mode, can be fixed by "initializing"
No Ethernet Connection, idle state
Attempting to establsih TCP connection
TCP connection reset / rejected
Data connection is established and is idle
*refer to user manual for other LED status
4.

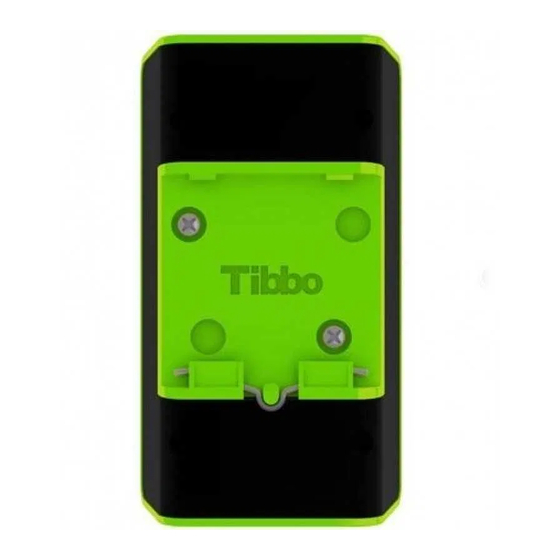

Din Rail and Wall Mount

Two mounting plates are provided, one for DIN rail installation,
and one for wall mounting.
5.

Power Arrangement

The DS110X can be powered through adaptors with 3.5mm
diameter socket and 12VDC nominal output. Power inputs on PoE,
or serial port pin 9 are optional.
6. Ethernet port & Link LED
The Ethernet port of the DS110X is of 10/100BaseT type and the
pin arrangement is as follows:
#1 : TX+
#2 : TX –
#3 : RX+
#4 : PoE
7.

Serial Configuration

DS1100
#1 : N/A
#2 : RX
#3 : TX
#4 : DTR
#5 : GND
DS1101
#1 : N/A
#2 : RX
#3 : TX
#4 : DTR
#5 : GND
DS1102
#5 : PoE+
#6 : RX-
#7 : PoE-
#8 : PoE-
#6 : DSR
#7 : RTS
#8 : CTS
#9 : Power
Input
#6 : DSR
#7 : RTS
#8 : CTS
#9 : Power
In/Out
