Kino Flo DMX-ONE Operation Manual

Signal generator
Hide thumbs

Advertisement

Quick Links

Download this manual
Operation Manual
DMX-ONÉ

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMX-ONE and is the answer not in the manual?

Questions and answers

Summary of Contents for Kino Flo DMX-ONE

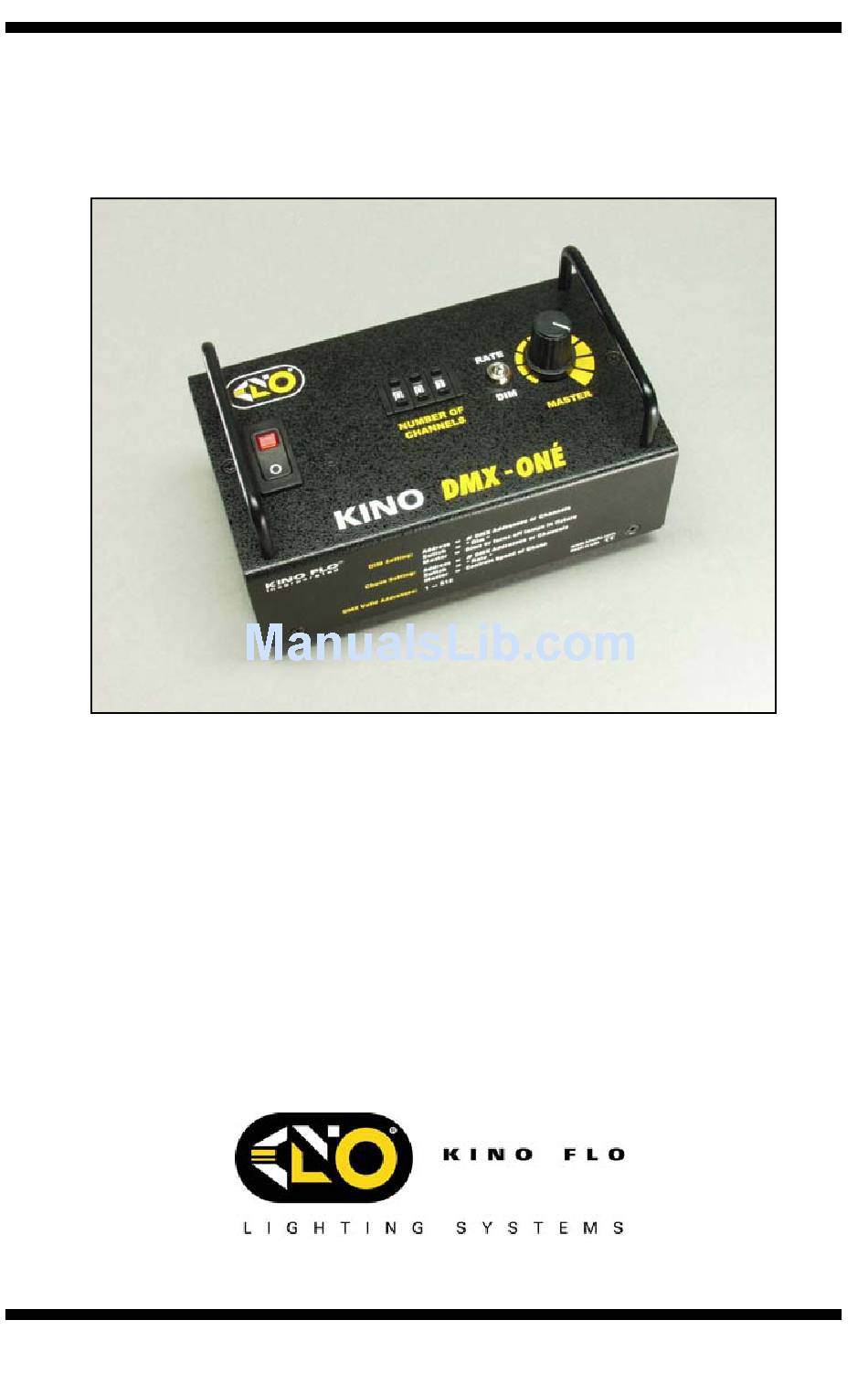

  • Page 1 Operation Manual DMX-ONÉ...

  • Page 2: Dmx Lamp Switching Of

    DMX-ONÉ Signal Generator is a diagnostic tool designed to: • Generate a DMX signal for trouble shooting • Dim a ParaBeam • Adjust light levels in an Image Series fixture, Wall-O-Lite and 4Bank. • Chase lamps in an Image 80, Wall-O-Lite, Multi-Flo unit and 4Bank. DMX DIMMING OF: DMX ParaBeam 400 DMX ParaBeam 200...
  • Page 3 (A) Power Switch: Built-in indicator light. Lights if AC power is present in the power cord. “O” = Off position (B) NUMBER OF CHANNELS: Sets number of channels being chased. (C) RATE/DIM Switch: When set to RATE, MASTER knob controls rate of chase.
  • Page 4 A ParaBeam can be dimmed by DMX using the DMX ONÉ. This is useful when checking or trouble shooting a fixture. The DMX ONÉ can operate next to the fixture in place of a dimmer board. Note: DMX overrides all manual settings PARABEAM CONTROL SETTINGS •...
  • Page 5 The Image Series and Wall-O-Lite share a similar control interface. The DMX Image 80 is pictured below as an example. Image series and Wall- Lites have 2 modes of operation. In Fixture Mode one address controls 8 lamps. In Individual Lamp Mode each lamp has a unique DMX address. A) Manual Selector Dial: Turns lamps on and off manually without connecting Note: DMX overrides all manual controls DMX Cable to Fixture.
  • Page 6 FIXTURE CONTROL SETTINGS To adjust light levels on one or more Fixtures: • Set all Fixtures to address “001” • Set toggle switch to FIXTURE. • Turn on power switch. Set the DMX TERMINATE switch on the LAST Fixture to “I” CLOSE. The preceding Fixtures in the daisy chain must have the switch set to “O”...
  • Page 7 Fixture Control Settings: To Chase Fixtures : • Set individual address for each fixture; 001, 002 ,003 and so on. • Set toggle switch to FIXTURE. • Turn on power switch. Set the DMX TERMINATE switch on the LAST Fixture to “I” CLOSE. The preceding Fixtures in the daisy chain must have the switch set to “O”...
  • Page 8 FIXTURE CONTROL SETTINGS: To simultaneously chase same lamp position in one or more fixtures: • Set Toggle to INDV.LAMP. • Set address to “001”. • Turn on power switch. Set the DMX TERMINATE switch on the LAST Fixture to “I” CLOSE. The preceding Fixtures in the daisy chain must have the switch set to “O”...
  • Page 9 The Multi-Flo operates 12 lamps. As soon as the unit is addressed it automatically assigns the next 11 addresses to lamps 2 -12. Note: DMX overrides all manual controls A) DMX Address: Sets DMX Address of Multi-Flo B) DMX Terminate Switch: Terminates DMX signal at the last unit of a DMX chain.
  • Page 10 MULTI-FLO CONTROL SETTINGS To simultaneously chase same lamp position in one or more Multi-Flos: • Set all Multi-Flo addresses to “001” • Turn on power switch. Set the DMX TERMINATE switch on the LAST unit to “I” CLOSE. The preceding units in the daisy chain must have the switch set to “O”...
  • Page 11 MULTI-FLO CONTROL SETTINGS To chase one lamp progressively from one Multi-Flo to another throughout the chain: • Set address of first Multi-Flo to “001” , second to “013”, third to “025” and so on using multiples of 12. • Turn on power switch. Set the DMX TERMINATE switch on the LAST unit to “I”...
  • Page 12 NOTE: If a fixture loses its DMX signal it will hold it’s last DMX command. For this reason it is important to turn off the instrument through a DMX command. To turn off a fixture using the DMX ONÉ: • Set RATE/DIM to DIM.
  • Page 13 FIXTURE CONTROL SETTINGS To adjust light levels on one or more Fixtures in a progressive outside in pattern: • Set all Fixtures to address “001” • Set toggle switch to FIXTURE. • Turn on power switch Note: Lamps will only operate in the 4ft select setting.
  • Page 14 Fixture Control Settings: To Chase Fixtures : • Set individual address for each fixture; 001, 002 ,003 and so on. • Set toggle switch to FIXTURE. • Turn on power switch. Note: Lamps will only operate in the 4ft select setting.
  • Page 15 FIXTURE CONTROL SETTINGS: To simultaneously chase same lamp position in one or more fixtures: • Set Toggle to INDV.LAMP. • Set address to “001”. • Turn on power switch. Note: Lamps will only operate in the 4ft select setting. Set the DMX TERMINATE switch on the LAST Fixture to “I”...

  • Page 16: Dmx-Oné Specifications

    This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Rev 10-05-2005 Part No. 3100004 Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
