Summary of Contents for AudioBahn ADVD72BT

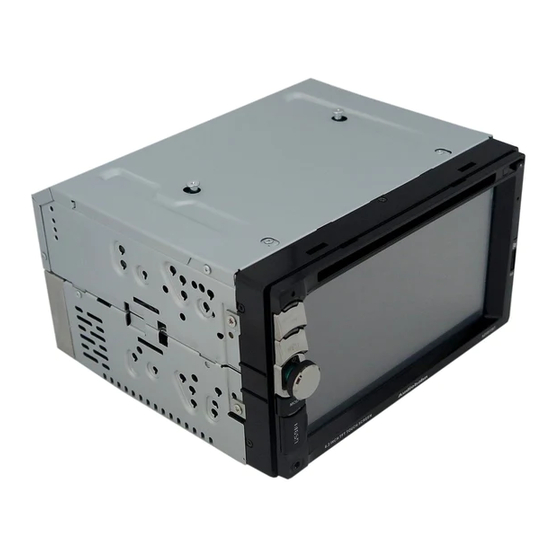

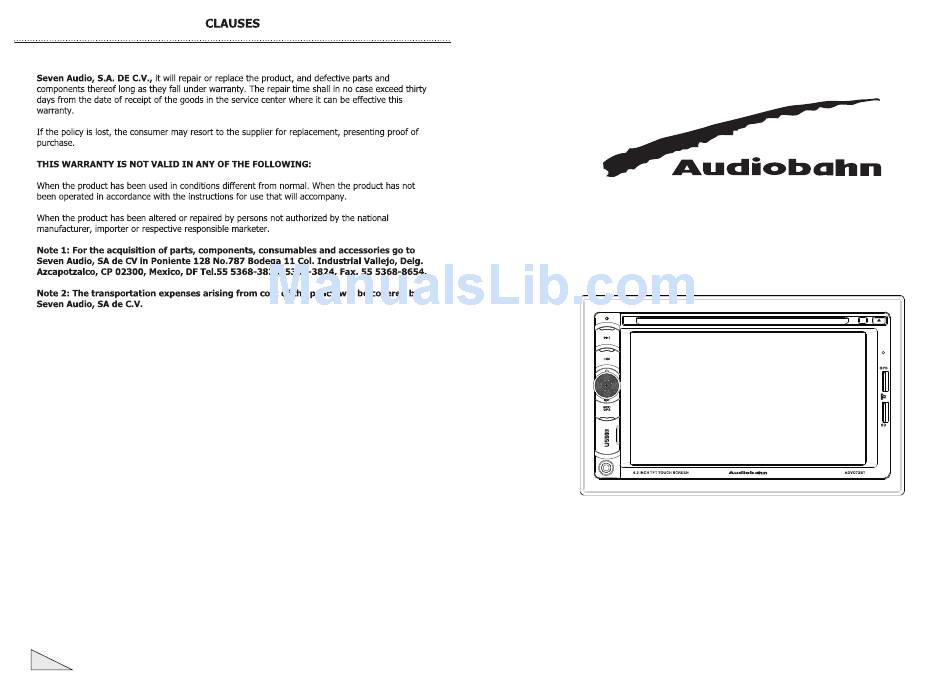

  • Page 1 ADVD72BT USER’s MANUAL...
  • Page 2 CONTENTS...
  • Page 3: Product Specification

    Product specification 1. Description of the functional buttons ℃ ℃ ---+50 ℃ ℃ ---+70 178(d)X145(w)X100(h)mm 2.5KG Radio FM:87.5-107.9MHz AM:530-1710KHz AUTO/PAL/NTSC NTSC/PAL 1.Eject button 2.IR sensor 3.Disc slot 4.Next 5.Previous 6.Power on (short press) / Power off (long press); mute (short press); Left and right adjustment volume;...
  • Page 4: Unit Installation

    Instruction for wiring and accessories Unit Installation RADIO ANTENNA CONNECTOR TV ANTENNA BRAKE ORANGE BLUE/WHITE MUTE BROWN STEERING WHEEL CONTROL1 BROWN/BLACK STEERING WHEEL CONTROL2 BLUE/BLACK AMP CONTROL BLUE POWER ANTENNA ORANGE/BLACK ILLAMNINATION CONTROL BLACK YELLOW STEERING WHEEL CONTROL(-) BLACK Installation Instructions: ☆...
  • Page 5 Introduction for the function of controller (Slow playback): under the sound play state, press this button to conduct slow playback. (Volume increasing/decreasing) button: press this button to adjust the volume. (Zoom in) button: under the disc reading state of VCD/DVD, press this button to zoom in/out the image.
  • Page 6 Instruction for the operation of touch screen Introduction for function of controller 1. Search and select the needed radio channel 2. Select one unit (pre-set number) from N0.1 to No. 6 unit (pre-set number) and press (long press) this unit (pre-set) number for 2 seconds. The radio frequency will be stored in this unit (pre-set number) and will be displayed.
  • Page 7 Instruction for operation of touch screen Instruction for the operation of touch screen 4. Instruction for the setting 10.2.2 Simulated navigation: After the route is planned well in 11.2.1, touch the map menu--[Route] menu at the bottom right corner, touch [FLYOVER] at the top right corner 4.1 General setting for rapid simulation (Without the sound), touch [Simulate] at the bottom right corner for The general setting interface may switch the startup picture, switch button sound , the...
  • Page 8 Instruction for operation of touch screen 10. Instruction for the GPS operation Insert the GPS navigation card into the GPS card slot and press the 【GPS】icon on the main menuto enter GPS main interface. Press [setting] icon to set GPS path setting, language setting, video adjustment, screen adjustment, touch validation and check the version information;...
  • Page 9 Instruction for the operation of touch screen Instruction for the operation of touch screen 9. Instruction for the TV operation 4.7 Setting for steering wheel In the main menu, touch the TV icon to enter the TV menu to playing. When need 4.7.1 It mainly conducts setting for the button on the steering wheel and the function to change the program,...
  • Page 10 Instruction for the operation of touch screen Instruction for the operation of touch screen 8. Instruction for operation of Bluetooth 4.7.4In the event of the interface, you can set the function value of the button, touch the N / A area will pop-up the value, touch the button up or down to search the function value. On the main menu,touch the [BT] icon to enter the bluetooth menu.
  • Page 11 Calibration Password:888 888...
