- Page 1 GH-703 Power Riveter MAINTENANCE MANUAL 1224 East Warner Ave, Santa Ana, CA 92705 Tel: 1-714-545-5511 Fax: 1-714-850-6093 www.cherryaerospace.com...

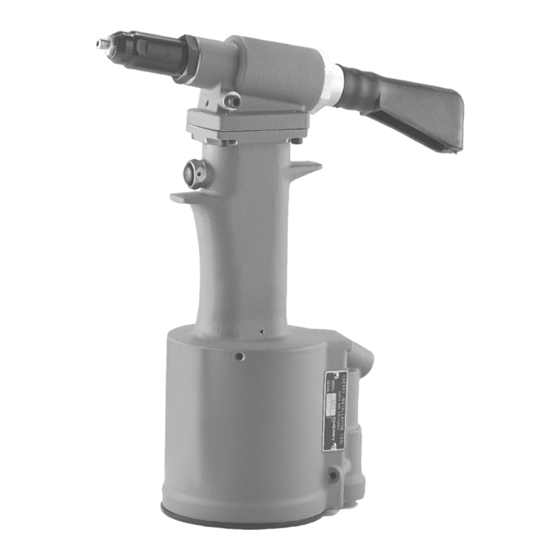

- Page 2 It has a full 3/4” rivet setting stroke and a rated pull load of 2000 pounds. The GH-703 riveter operates on a wide range of air pressure, with 90 to 120 psi providing the maximum efficiency. At 90 lbs. air pressure, the GH-703 has a decibel rating of 80dB(A) and consumes 3 CFM at 20 cycles per minute.
-
Page 3: Specifications Are Subject To Change Without Notice
H o w t h e G H - 7 0 3 O p e r a t e s When the tool is pressurized by hooking up to an air piston is activated by changes in the air valve, air line, the valve spool is forced upward. - Page 4 PART LIST FOR GH-703 RIVETER REF. PART QTY. DESCRIPTION NUMBER REQ. 703C2 703C2 HEAD CYLINDER P722 O-RING,(.816,.676,.070) P860 BACK-UP RING, (.794,.688,.053) 703B3 HEAD PISTION P872 O-RING,(1.130,.924,.103) P868 BACK-UP RING, (1.129,.957,.103) P724 O-RING, (1.129,.898,.070) P112 O-RING,(.504,.364,.070) 703A5 SEAL TUBE P109 RETAINING RING (EXT. .375 DIA)
-
Page 6: Maintenance And Repair
Maintenance and Repair: The GH-703 Power Riveter has been manufactured to 3. Check for oil leakage. give maximum service with minimum care. In order that Oil leaking around the cap screw (16) in the head this may be accomplished, the following recommendations... - Page 7 When assembled, requires care, as the tool will not operate if this spring is not purge the system of air by using Avdel Cherry air bleeder anchored firmly. 700A77 according to instructions included with bleeder.
- Page 8 I n s t a l l i n g t h e H 7 0 3 a n d H 7 4 3 A P u l l i n g H e a d s 1. Connect the tool to the air supply. Without depressing the (4) into end of head body while depressing the trigger.
- Page 9 COMMERCIAL FASTENER TYPE NOSEPIECE PART NUMBER USING LISTED PULLING HEADS QTY, REF. RIVET MONO REQD DIAM. RIVET RIVET RIVET RIVET BOLT RIVET RIVET H703 H743A 728A93Z — 3/32 — — — — — — — — — — — — 728A9-4 —...
-
Page 10: Warranty
