ISM-3
User Manual
PBI-200114-D
04/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISM-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Dansensor ISM-3

Summary of Contents for Dansensor ISM-3

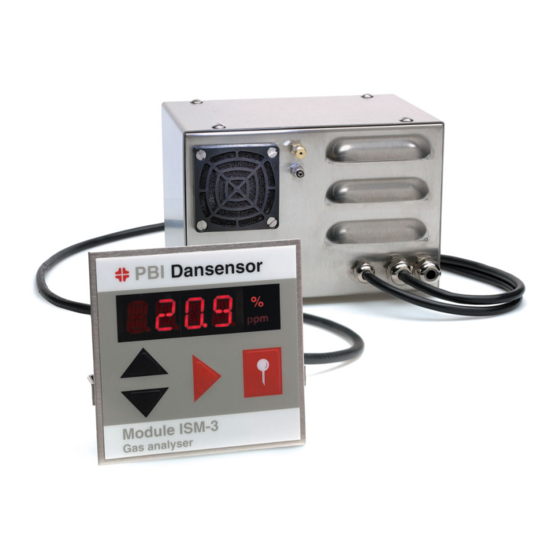

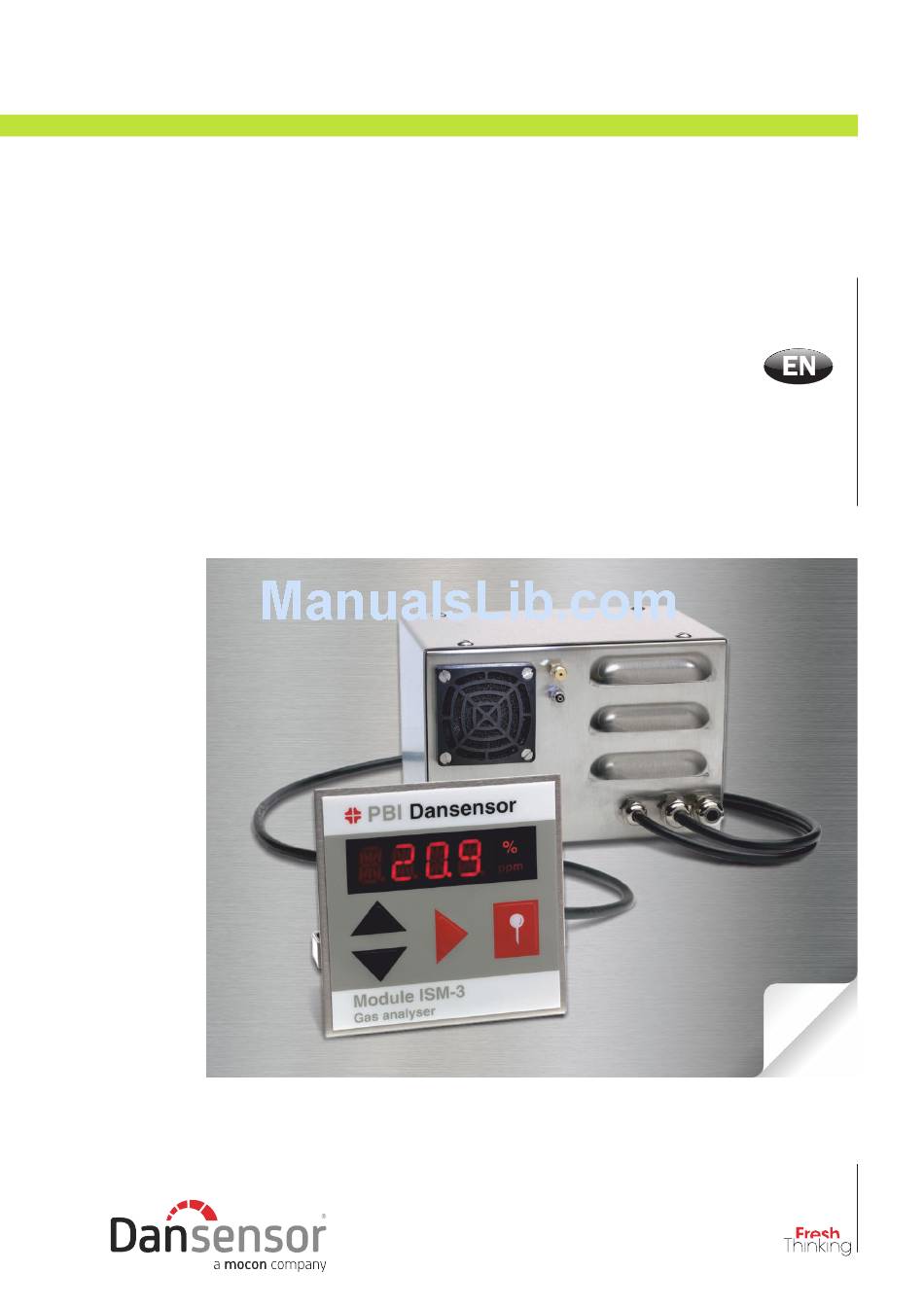

  • Page 1 ISM-3 User Manual PBI-200114-D 04/2013...
  • Page 2 ISM-3 User Manual ISM-3 User Manual Published by: Dansensor A/S Rønnedevej 18, DK-4100 Ringsted Denmark Tel.: +45 57 66 00 88 Fax: +45 57 66 00 99 E-mail: info@dansensor.com Internet: www.dansensor.com Dansensor A/S COPYRIGHT © PBI-200114-D 04/2013...
  • Page 3 User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...

  • Page 4: Table Of Contents

    ISM-3 User Manual Table of Contents 1. Introduction ..........5 2.

  • Page 5: Pbi-200114-D

    User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...

  • Page 6: Introduction

    ISM-3 can via a simple menu structure be programmed to give alarm in case of a too high or too low O concentration. Besides that alarm is given in case of insufficient flow of measuring gas, or in case of other faults in the ISM-3.
  • Page 7 • Supplied as stand-alone or for incorporation. ISM-3 is specifically built for measuring on clean dry gases and gas mixtures where a great measuring precision, reliability and long term stability and alarm control of flow and content of oxygen are required.

  • Page 8: Safety Precautions

    The screen must end in a PG sleeve on the back of ISM-3. Recommendations • In order to prolong the life of the analyser it is recommended to let ISM-3 be constantly connected to the mains voltage. • Every 6 months it is recommended to control ISM-3`s calibrations by measuring on gases with known content of O •...
  • Page 9 User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...

  • Page 10: Connection

    Fuse 0.63 AT (1.6 AT at 115V AC). Placed inside.   Gas out  Gas in (For ISM-3 without a build-in pump, 2 - 10 bar is labelled upon request)  Cable inlet for mains connection  Cable inlet for display (only for model for incorporation) ...
  • Page 11 User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...

  • Page 12: Operation

    (H for heating). When the time is counted down to zero the ISM-3 is ready. After 10 minutes ISM-3 has a read-out difference of max 3 % of the read value. I takes the total heating time of 20 minutes until the ead-out difference is below the specified 1 % for the shown value.

  • Page 13: General Use Of Buttons

    User Manual ISM-3 General use of buttons The functions of the single buttons are only activated when you release the button. When a parameter is AL.HI displayed, first the parameter name appears, for example for flow for high oxygen alarm etc.

  • Page 14: Set-Up Of Alarm Limits

    User Manual Set-up of alarm limits AL.HI AL.Lo ISM-3 has two programmable alarm limits, (high oxygen alarm) and (low oxygen alarm). In case of measurements above or below the alarm limits the relay is activated. In order to change one of the alarm limits, the following procedure must be followed: 1.

  • Page 15: Sub Menus

    User Manual ISM-3 Sub menus ISM-3 is equipped with 3 sub menus as shown in Figure 4. 20.9 flo. Al.Hi Al.Lo 3 sec. SET. DIA. CAL. flo.l emf. cal1 flo.h tpt.1 cal2 del. tpt.2 CAL3 offs CAL4 ti.po CAL5 ti.ca ti.FL...
  • Page 16 Sensor offset. Result of latest off set adjustment in mV. TI.PO 1234 • Hour counter in number of 10 hours. Number of hours in which ISM-3 has been switched on. TI.CA • Hour counter in numbers of 10 hours. Number of hours since the last calibration of ISM-3.

  • Page 17: Setting Up Of Options, Relay And External Measurement Control

    Relay Measurement output Current output / voltage output No current output / voltage output Current output (0-20mA/4-20mA) or voltage output (0-10Volt/2-10volt) Effect of ISM-3 relay ISM-3 mode When heating System error High oxygen alarm Low oxygen alarm Flowalarm Measurement off...

  • Page 18: Maintenance

    See "Recommendations" on page 7 for details. If ISM-3 is installed in places with more dust than normal, it may be necessary to change the cooling air filter between the obligatory 12 months service control intervals.
  • Page 19 User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...

  • Page 20: Calibration

    "0 - - - -". Make a note of the setting before making the change. 2. If ISM-3 is not equipped with an internal pump: Connect the calibration gas to gas in and adjust the input pressure in order to produce a flow of 125±5ml/min.

  • Page 21: Offset Adjustment

    User Manual ISM-3 calibration. Type in the gas concentration - see item 2 to 6 in "Set-up of alarm limits" on page 13. and  simultaneously to start the actual the calibration. 7. Press CAL. The display will then flash for about 10 seconds while performing the calibration.

  • Page 22: Options

    7. Options Current output/voltage output ISM-3 can be equipped with an current output/voltage output. From the the set-up menu the output can be set to the ranges 0-20mA or 4-20mA/0-10V or 2-10V respectively. The current output is enabled from the parameter in the set-up menu.
  • Page 23 User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...

  • Page 24: Error Indication/Error Correction

    Possible hardware error. Mains supply line failure signal error. 30 - 31 When ISM-3 is switched on all set-up values are read from the Flash memory. 32 - 34 Data has been read OK but the data contains errors (outside the valid range etc.).
  • Page 25 Hardware error. The mains Switch off ISM-3, wait for 10 seconds and The display shows: supply line failure signal is switch it on again. If an error is still indicated, constantly high ISM-3 should be returned for repair.
  • Page 26 Errors in the flow sensor Switch off the ISM-3 and wait 10 seconds and The display shows: calibration data. switch on again. Press if there is still an error message.
  • Page 27 User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...

  • Page 28: Spare Parts And Accessories

    • Option, connection kit ISM-3 w/pump ........
  • Page 29 User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...

  • Page 30: Specifications

    Flow system For ISM-3 without an internal pump, the measuring gas is supplied at a pressure of 2 - 10 bar. By means of the restriction hose the flow is limited to 125 ml/min, before the gas is led through the flow sensor and the oxygen sensor.

  • Page 31: Operation And Connection

    Restriction hose Gas out Pump 125 ml/min Fig. 6. Flow diagram of ISM-3 with pump. Gas overflow for calibration use is shown Operation and connection Operation of ISM-3: Display 4 digit red LED display Control 4 front keys. Key function is activated when key is released.

  • Page 32: Technical Data

    ISM-3 User Manual Technical data Mains connection 230 VAC (115 VAC) +/- 10 %, 50-60 Hz Consumption max. 70 VA Mains fuse 0.63 AT at 230 V (1.6 AT at 115 V) Permissible ambient temp. 0 to 45°C. Less than 95% RH up to 35°C.
  • Page 33 User Manual ISM-3 PBI-200114-D 04/2013 COPYRIGHT © Dansensor A/S...
