Summary of Contents for Varytec QUAD VISOR FX

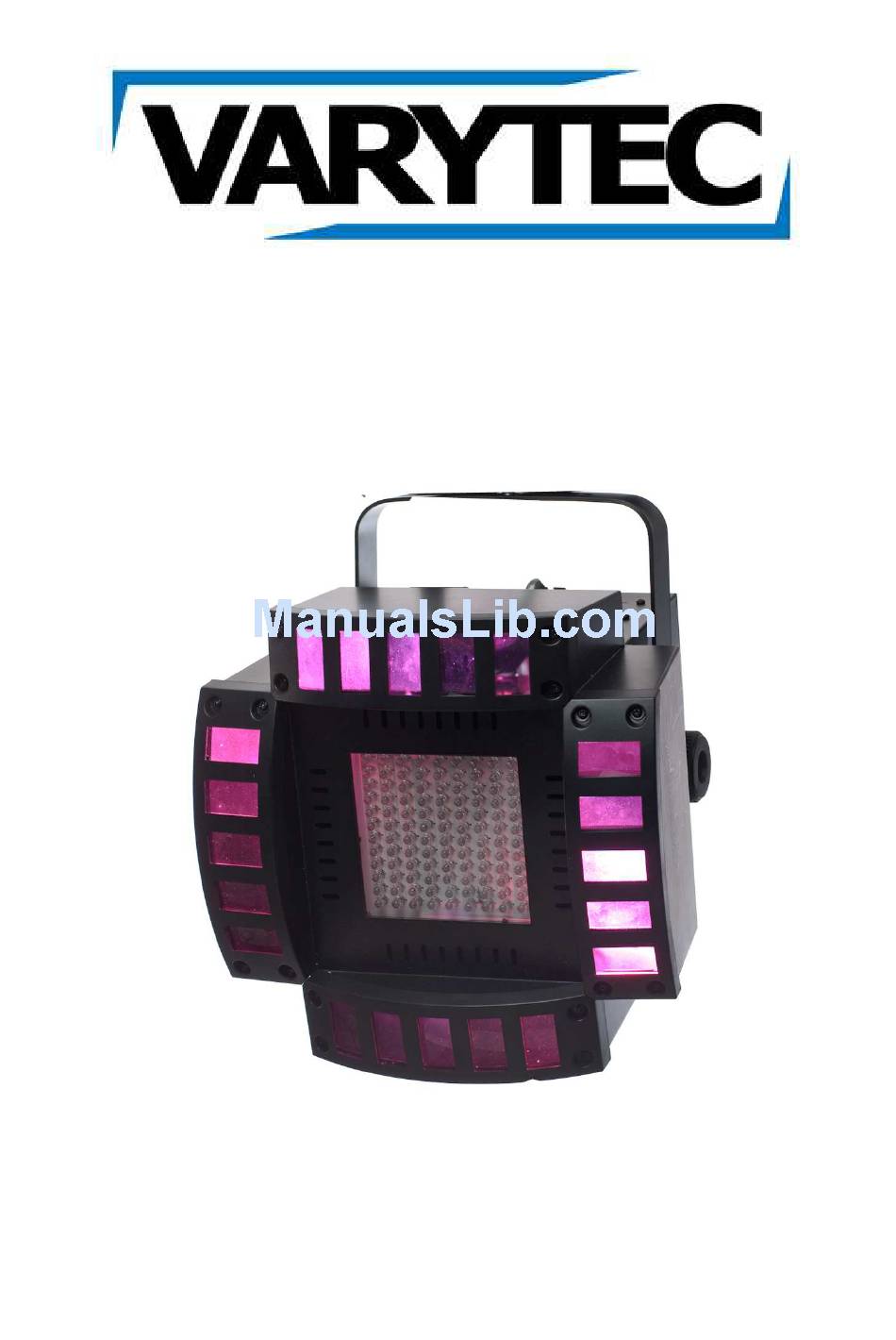

- Page 1 User manual QUAD VISOR FX...
-
Page 2: Table Of Contents
Table of content Safety instructions ........................... 3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Technical data ..........................4 Operation ............................4 3.1. Functions via DIP ........................4 3.2. Auto Mode ..........................5 3.3. Sound Mode ..........................5 3.4. Master/Slave Mode ........................5 DMX Control ............................ -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •... -
Page 4: Technical Data
2. Technical data Power supply 90-250VAC, 50~60Hz Power consumption Current 0.36A Sound Control Via built-in microphone DMX512 connection 3 Pin XLR Weight 3.05 Kg Measurements 250 x 250 x 230 mm Maximum ambient temperature 45° C Maximum housing temperature 50° C Fuse F1A, 250V Channel... -
Page 5: Auto Mode
3.2. Auto Mode In order to select Auto mode, set DIP switch 1 to 10 to OFF, set DIP switch 8 to ON. 3.3. Sound Mode In order to select Sound Control Mode, set DIP switch 1 to 10 to OFF, set DIP switch 9 to ON. 3.4. - Page 6 Importer: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 6 / 6...
