Congratulations on your purchase of a Sabertooth 2X25 regenerative motor driver. Sabertooth 2X25 is one of the most
flexible and configurable motor drivers on the market. As a result, it must be set to the correct operating mode before use.

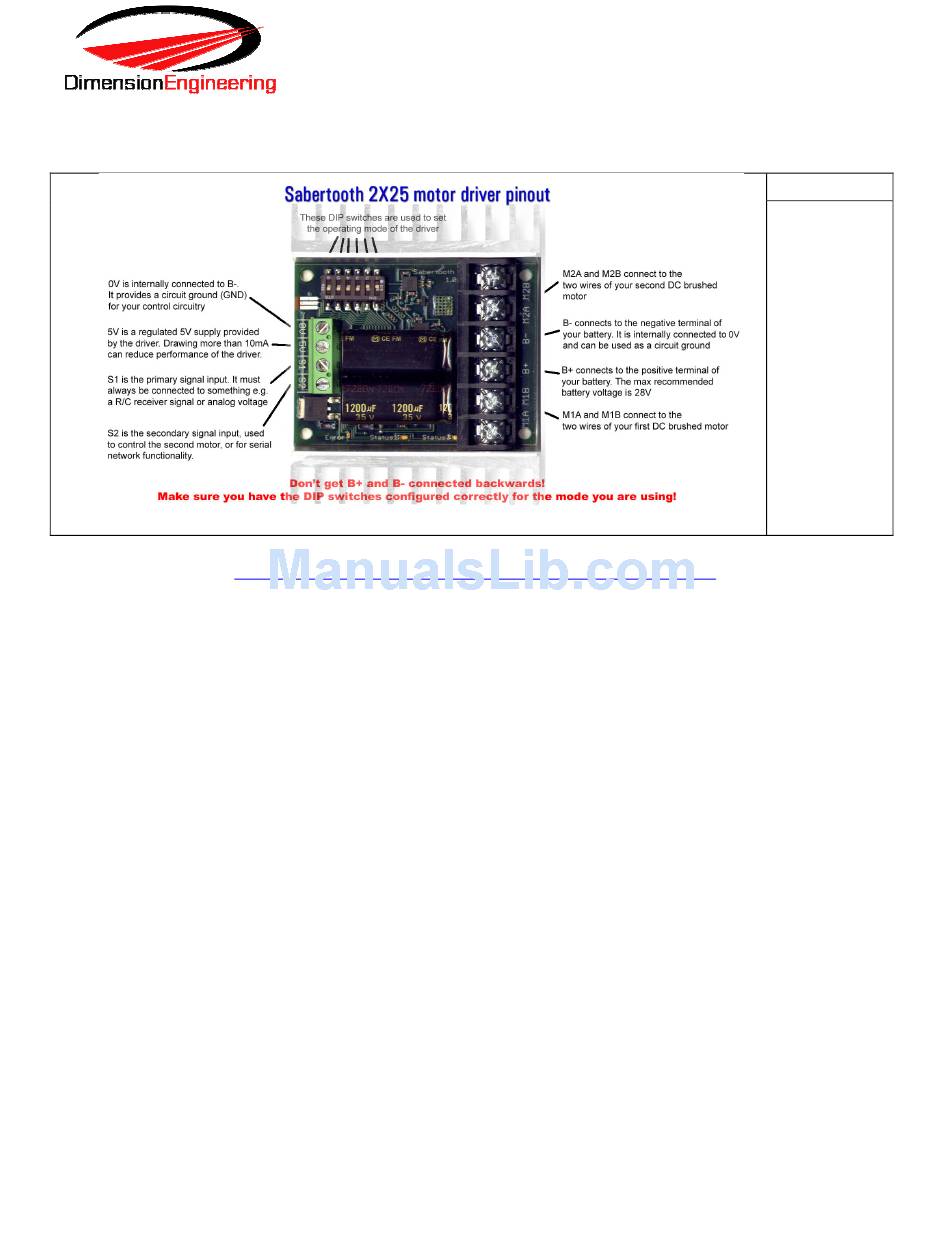

Below is a generalized hookup diagram of a Sabertooth 2X25. On the reverse side is a chart of some of the most commonly
used operating modes.
http://www.dimensionengineering.com/Sabertooth2X25.htm
Sabertooth 2X25 Quick Start Guide
For full product documentation and manual, please visit
July 2007
Specs:
Input voltage:
6V-24V
Output current:
25A per
channel
Peak Output
current:
50A per
channel
Operating
modes:
Analog, R/C,
Serial
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Dimension Engineering Sabertooth 2X25
- Page 1 As a result, it must be set to the correct operating mode before use. Below is a generalized hookup diagram of a Sabertooth 2X25. On the reverse side is a chart of some of the most commonly used operating modes.
- Page 2 Sabertooth 2X25 Operating mode quick reference chart All options are set via the switches Analog control, linear, independent: a 0V to 5V analog input is connected to terminals S1 and S2. 0V is full reverse, 5V is full forward, 2.5V is stop.
