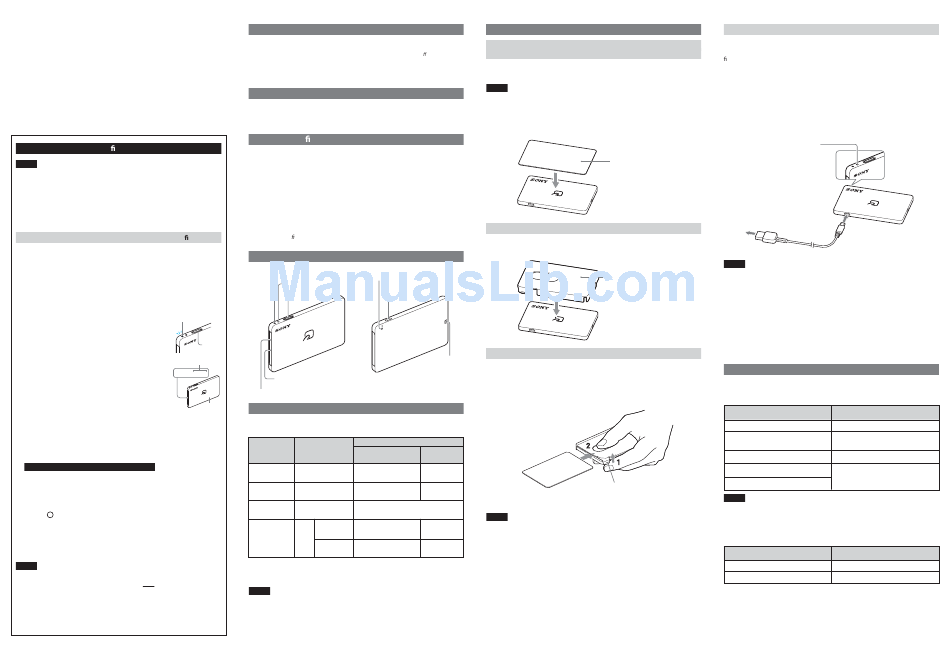

Octopus Mobile Reader Operating Manual

Octopus Mobile Reader
(Compatible with Bluetooth enabled iOS mobile devices)
Operating Manual
Setup (Please read this rst)
Notes
• The compatible iOS versions will be updated from time to time for O! ePay
App or Octopus App, please visit www.octopus.com.hk/octopus-mobile-reader
for the latest update before you start.
* Operation is not guaranteed on all iOS devices that meet the recommended
requirements.
* The Reader may not function properly, depending on the status of O! ePay
App or Octopus App on the iOS device.
Pairing the Reader with the iOS mobile device (for the rst time)
Before using the Reader for the first time, the Reader must be paired with the
iOS device via Bluetooth.
1. Download O! ePay App and Octopus App onto the iOS mobile device.
2. Enable Bluetooth on the iOS device: [Settings] > [Bluetooth]. Once
completed, [open Octopus App] to proceed with pairing.
3. Select [Start Setup] > [Connect Now], [Searching Octopus Mobile
Reader...] will be shown on the screen.
4. Press the power button on the side of the Reader until
Blue indicator blinks rapidly
the blue indicator blinks rapidly and the [password
input screen appears].
If there is no response after pressing the button, please
charge the Reader battery using the USB cable.
5. When the [Bluetooth Pairing Request] screen
Code
appears on the iOS device and the code entry request
PASSKEY xxxxxx
appears, [enter the 6-digit code (PASSKEY) printed
on the side of the Reader], and then tap [Pair].
If the blue indicator stops blinking rapidly while pairing is
in progress, please perform step 4 again.
When pairing is completed, please follow the instructions and place
Octopus on the Reader to use the services provided by O! ePay App or
Octopus App.
Pairing is required to be completed once only. For subsequent use of
O! ePay App or Octopus App, please follow the instructions and connect
to the Reader directly.
Special case (when pairing is required again)
Each Reader can only pair with a single iOS device and one at a time. If the
Reader is paired with another iOS device after you use the Reader, please
follow the steps below to pair the Reader with your iOS device again:
1. Enable Bluetooth on the iOS device: [Settings] > [Bluetooth], then
"PaSoRi" will be shown under "My Devices".
2. Tap [ i ], then select [Forget This Device]
3. [Open Octopus App], then select [Connect Now].
4. Follow step 4 to 5 of "Pairing the Reader with the iOS mobile device"
to pair the Reader with your iOS device again
Please follow the above procedures if you would like to pair your iOS
device with a new Reader.
Notes
• Operating procedures may vary depending on the iOS device application
you are using. For details, please refer to the FAQ section on O! ePay App
or Octopus App.
• The Reader will not function properly if two or more Octopus are placed
on the Reader at the same time.
• This Reader only works with Octopus with a 9-digit Octopus number
(eight digits plus one single digit inside the bracket).
Features
• This Reader is a mobile reader/writer for Octopus that supports Bluetooth Smart*.
* Bluetooth Smart: Communication format added in Bluetooth 4.0 that o ers low power
consumption (Bluetooth Low Energy). Communication with devices that support
Bluetooth Smart Ready is possible (Communication between the Reader and all
Bluetooth Smart Ready devices is not guaranteed).
Supplied Accessories
• Octopus Mobile Reader
• Card holder
• USB cable
Reader Speci cations
Dimensions Approx. 87.6 x 56 x 5.5 mm
(3 1/2 x 2 1/4 x 1/4 in) (W x H x D)
Weight Approx. 30 gm (1 oz)
(excluding USB cable and card holder)
External interface Micro USB (exclusively for battery charging)
Cable length Approx. 50 cm (19 in)
Operating temperature 3°C to 35°C (41°F to 95°F)
Operating humidity 10% to 90%
Storage temperature -20°C to +60°C (-4°F to +140°F)
Operating voltage 5 V DC (via USB during battery charging)
Current consumption Maximum approx. 500 mA
Design and speci cation are subject to change without notice.
Structure of the Reader
Communication status indicator
Reset button
Battery status indicator
Power button
Power
button
（PASSKEY）
Built-in Bluetooth antenna
Code (PASSKEY)
Power Button
Reader
The length for pressing the power button and the indicator displays vary,
depending on the operation you intend to perform with the power button:
Operation Button press Indicator display
Communication status
indicator (blue)
Pairing Press until [password Blink rapidly
input screen appears]
Turn on the Press for 2 seconds Blink for 3 times
Reader 1)
Turn off the Press for 2 seconds Light up for 1 second together
Reader
Verify the Press During Blink
Reader's status once power ON
During –
power OFF
1) Connection to paired iOS device will be established.
2) Please refer to the "Indicator Displays" section for the meaning of different
colors for the Battery status indicator.
Notes
– If the Reader has never been paired with iOS device, the power will
automatically turn off after turning on the Reader then idle it for 3 minutes, the
"Turn off the Reader" indicator display will occur.
– After pairing, the Reader will not turn off automatically. It will be in standby
mode unless you turn it off with the power button.
Basic Operations
Placing Octopus (including Octopus products such as card,
ornament, mini Octopus or watch)
Place the Octopus steadily over the Reader until there is an indication that the
required service is completed.
Notes
– The battery will deplete more quickly during operation with Octopus. To
reduce the duration of such operation, it is recommended to place the
Octopus on the Reader properly before operation.
– Do not cover the built-in Bluetooth antenna position with your hand during
operation; otherwise the Bluetooth connection may be disrupted.
Using the Card Holder
Align the card holder with the Reader as shown below, then press on it until
there is a "click" sound.
Micro USB port
Inserting Octopus card in the Card Holder
Strap hole
1. Raise the card holder from the Reader by gently lifting up the tab of the
card holder.
There will be a gap between the Reader and the card holder.
2. Insert Octopus card into the card holder.
After fully inserting Octopus card into the card holder, please press down the
tab until there is a "click" sound.
Battery status
indicator
–
–
3. To remove Octopus card, please raise the card holder by the tab as you did in
step 1, and then slide the Octopus card out.
Notes
Blink
2)
• Please verify that the card holder is firmly attached with the Reader. If the card
holder is not attached properly, the inserted Octopus card may slip out.
Blink 2) • When Octopus card is placed on the Reader with the card holder, the Reader
may affect other readers from reading this Octopus card. In such case, please
remove the Octopus card from the Reader before placing the card on the
other readers.
• When removing the Reader from the card holder, please do so carefully to
avoid cracking the card holder.
• When using a commercially available neck strap with the card holder, please
be sure to attach it securely to the strap hole on the card holder.
Charging the Battery
The Reader is equipped with a built-in rechargeable battery.
Please be reminded to fully charge the battery before using the Reader for the
rst time.
To charge the battery, please use the supplied USB cable to connect the Reader's
micro USB port with the USB port on a computer or USB AC adapter (not
supplied).
The Reader's battery status indicator lights up in red while charging is in
progress. The battery status indicator turns off when charging is completed.
The approximate charging time is 1.5 hours from a fully discharged state to a
fully charged state.
The Reader can be operated while charging is in progress.
Battery status indicator
Charging: Light up in red
Charging complete: Light off
Octopus
To USB port on computer or
USB AC adapter (not supplied)
Notes
• Please charge the battery within an ambient temperature range of 5 °C to 35 °C
Card holder
(41 °F to 95 °F).
• Before using the Reader for the first time or after a prolonged period of disuse,
it is recommended to fully charge the battery.
• Battery charging may not be feasible if the Reader is connected to a USB hub
or a USB port with low current capacity.
• Battery charging is not guaranteed with all computer USB ports and USB AC
adapters.
• The Reader's micro USB port is intended for battery charging only.
• Please charge the battery at least once every 6 to 12 months, even during
prolonged period of disuse.
Indicator Displays
Battery status indicator
a) Battery status displays
Please press the power button once to check the battery status as indicate below:
Battery status indicator displays
Blink in green color for 3 times
Blink in orange color for 2 times
2
Blink in red color once
Blink in red color for 2 times
Light off
Tab
Notes
The battery status cannot be checked during charging.
b) Charging status displays
The battery status indicator displays as follow when charging via the USB cable (if
the battery is already fully charged, the battery status indicator will not light up):
Battery status indicator displays
Light up in red color
Light up in red color → light off
Micro USB port
USB cable (supplied)
Meaning
The remaining battery is sufficient
The remaining battery is moderately
sufficient
The remaining battery is very low
The battery is discharged, and the
Reader cannot be operated
without charging
Meaning
Charging in progress
Charging is completed
