Summary of Contents for Connect Tech PSG013
-

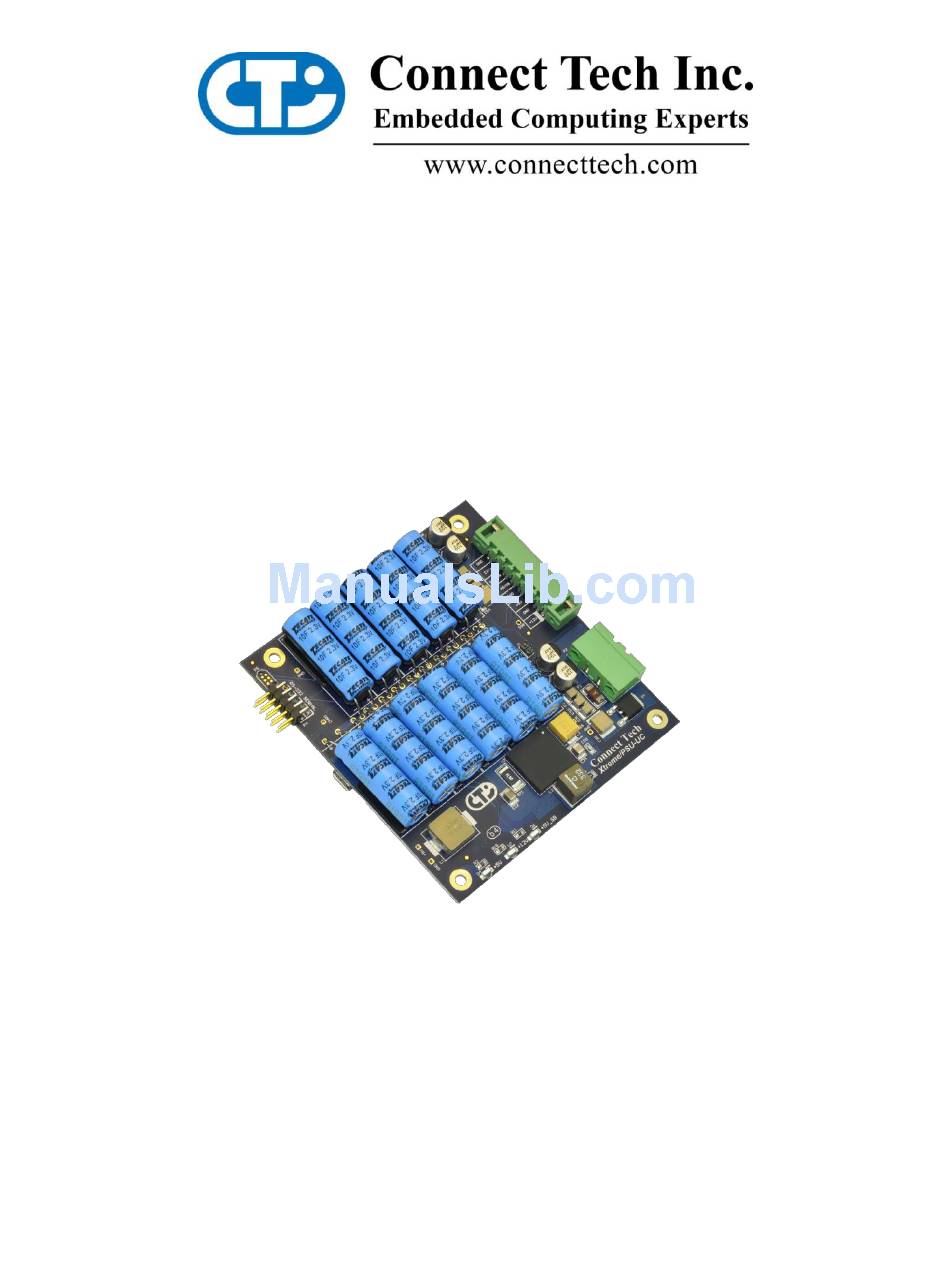

Page 1: Xtreme/Psu-Uc
Xtreme/PSU-UC Users Guide Connect Tech Inc. Tel:519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax:519-836-4878 N1K 1S6 Email:sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00428 Revision 0.00 – Sept. 16, 2014... -
Page 2: Copyright Notice
Connect Tech Xtreme/PSU-UC User Manual Copyright Notice The information contained in this document is subject to change without notice. Connect Tech Inc. shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance, or use of this material. This document contains proprietary information that is protected by copyright. -
Page 3: Table Of Contents
Connect Tech Xtreme Xtreme/PSU-UC User Manual Table of Contents Xtreme/PSU-UC ................................1 Copyright Notice................................2 Trademark Acknowledgment ............................2 Table of Contents ................................3 Revision History ................................3 Customer Support Overview ............................. 4 Contact Information ................................4 Introduction..................................6 Detailed Technical Specifications ............................. 7 Board Diagram .................................. -
Page 4: Customer Support Overview
The Connect Tech Inc. Warranty is only valid over the serviceable life of the product. This is defined as the period during which all components are available. Should the product prove to be irreparable, Connect Tech Inc. -
Page 5: Contact Information
Connect Tech Inc. website for product manuals, installation guides, device driver software and technical tips. Submit your technical support questions to our customer support engineers via Support Center on the Connect Tech Inc. website. -
Page 6: Introduction
Connect Tech Xtreme/PSU-UC User Manual Introduction Connect Tech’s Xtreme/PSU-UC is a high efficiency, high powered PC/104 form factor power supply with extended temperature capabilities. Xtreme/PSU-UC is a highly reliable power supply which provides 154W of total output power with +5V, +3.3V, +12V, -12V and +5V-Standby output voltages. It can be used as a stand-alone power supply to power any other embedded system, or used directly to power any PCI-104 stack or single board computer (SBC). -
Page 7: Detailed Technical Specifications
Connect Tech Xtreme Xtreme/PSU-UC User Manual Detailed Technical Specifications Specification Details 3.550” x 3.775” (90mm x 96) PC/104 Compliant Dimensions Fully meets the PC/104 component height requirements Download 3D Model Files (Click Here) - .step model files ... -
Page 8: Board Diagram
Connect Tech Xtreme/PSU-UC User Manual Board Diagram Functional Block Diagram Revision 0.00... -
Page 9: Part Number Information
Connect Tech Xtreme Xtreme/PSU-UC User Manual Part Number Information Part Number Features Board Image +5V @ 10A, +12V @ 5A, +5VSB @ 1A PSG013 Other available ordering options: 5V or 12V output only build option available Aluminum caps removed/replaced for vacuum application To order any of these part numbers or to inquire about the other available ordering options please contact sales@connecttech.com for further information. -
Page 10: Hardware Installation
Connect Tech Xtreme/PSU-UC User Manual Hardware Installation The Xtreme/PSU-UC can be installed into a PC/104 stack to provide power to the stack through its external power connector. The Xtreme/PSU-UC can also be used as a stand-alone embedded power supply to provide power to any other piece of equipment or embedded SBC. -
Page 11: Input Power
Connect Tech Xtreme Xtreme/PSU-UC User Manual Input Power The Xtreme/PSU-UC is meant to use any DC input power source in the range of +9V to +36V DC, which is ideal for many vehicle or mobile application, but also many industrial power solutions as well. -
Page 12: Output Power
Connect Tech Xtreme/PSU-UC User Manual Output Power Technical Specifications The Xtreme/PSU-UC outputs 3 main voltage rails: +5V @ up to 10A +12V @ up to 5A +5V-SB @ up to 1A All outputs provide: Current Limiting Protection ... -
Page 13: Configuration Jumpers
Connect Tech Xtreme Xtreme/PSU-UC User Manual Configuration Jumpers J1: Charge Voltage Control Jumper Description Installed Uninstalled Charge Voltage AND Ext. Charge Voltage AND Ext. Connector Capacitor Voltage Connector voltage set to +24V voltage set to +16V *** WARNING: DO NOT INSTALL OR UNINSTALL THIS JUMPER WHILE MAIN INPUT POWER IS CONNECTED / POWERED ON. -
Page 14: External Module Charging
Connect Tech Xtreme/PSU-UC User Manual External Module Charging The Xtreme/PSU-UC includes an external connector that can be used to charge additional Ultracap modules. In order to conform with many +16V rated modules, the removal of jumper J1 will set this external Charge voltage to +15.5V. -
Page 15: Turn Supply Off
Connect Tech Xtreme Xtreme/PSU-UC User Manual Turn Supply OFF Connecting the SHUTDOWN# pin to ground the Xtreme/PSU-UC’ +5V and +12V will turn OFF. Alternatively the Xtreme/PSU-UC can be turned OFF by driving the SHUTDOWN# pin to a voltage below +1.3V. -
Page 16: Software Interface
Connect Tech Xtreme/PSU-UC User Manual Software Interface The Xtreme/PSU-UC includes multiple interfaces for monitoring and control of the power outputs and board temperature. RS-232 The Xtreme/PSU-UC includes an on-board RS-232 port for monitoring and control of the power outputs. The port runs at 57600 baud and a summary of the available commands are below. -
Page 17: Power Sequencing Details
Connect Tech Xtreme Xtreme/PSU-UC User Manual Power Sequencing Details Below are some oscilloscope captures of the Xtreme/PSU-UC’ power sequencing during initial power up. The default sequencing is of the following order: +5V-SB → +5V → +12V. If your system requires a different sequence, adjusted parameters, or default startup/shutdown delay please contact support@connecttech.com and a custom board can be ordered to exactly fit your needs. -
Page 18: Detailed Specifications And Derating Graphs
Connect Tech Xtreme/PSU-UC User Manual Detailed Specifications and Derating Graphs Input Voltage Input Voltage *All temperature deratings based on test results in a 125CFM test chamber. Revision 0.00...
