Authentication unit

Advertisement

Quick Links

Applied Machines: C658/C558/C458
COLOR MFP: 65 ppm/55 ppm/45 ppm
Product Code: A79J/A79K/A79M

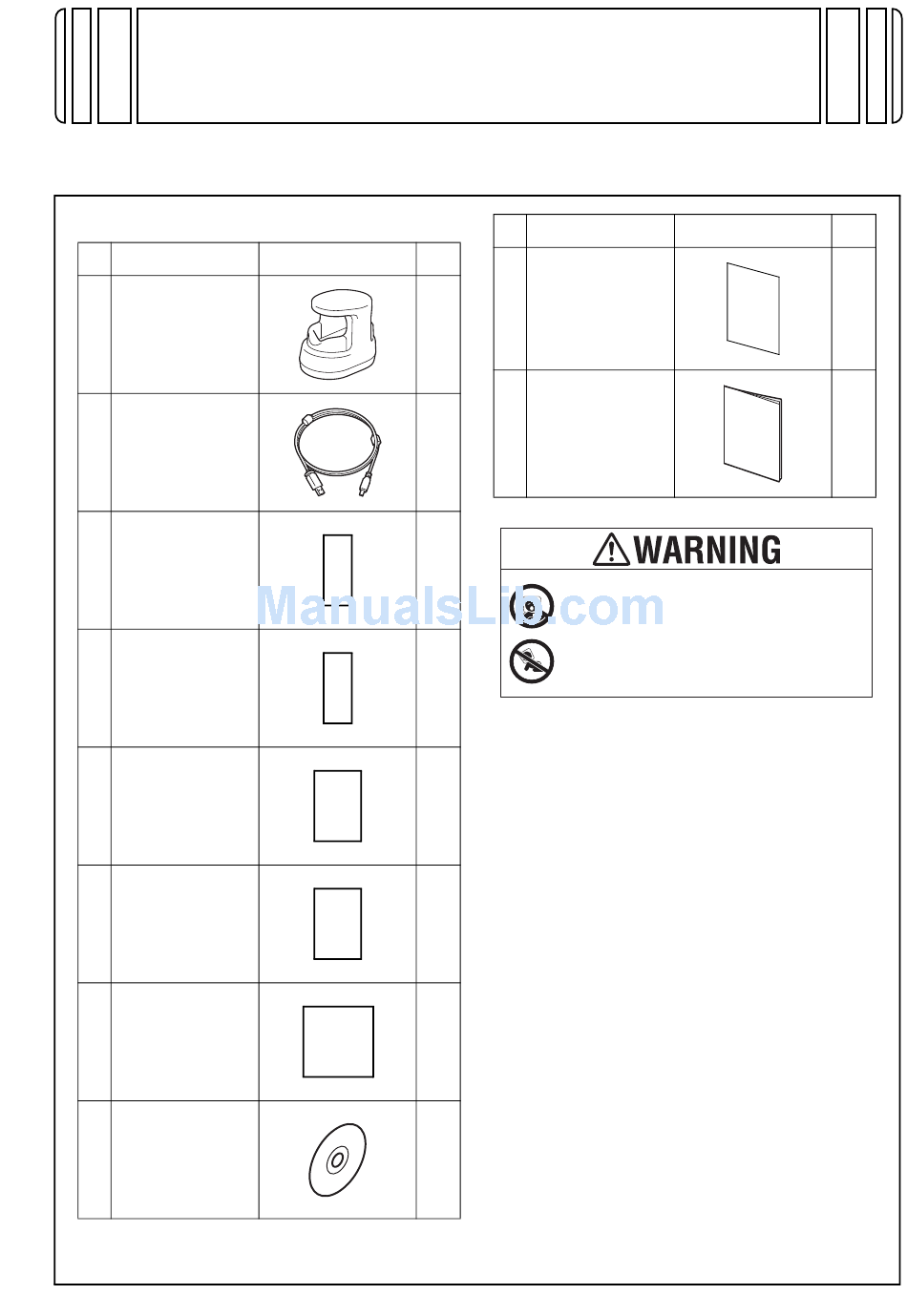

1. Accessory parts
No.
Name
1. Authentication
unit
2. USB cable
3. Hook-and-loop
fastener A
(hook)
(20 x 10 mm)
4. Hook-and-loop
fastener B
(loop)
(20 x 10 mm)
5. Hook-and-loop
C
fastener
(hook)
(25 x 18 mm)
6. Hook-and-loop
D
fastener
(loop)
(25 x 18 mm)
7. Finger placement
seal
8. CD-ROM
AU-102
INSTALLATION MANUAL
Shape
Q'ty
1
1
2
2
1
1
1
1
Authentication Unit
No.
Name
9. Safety
information
guide
10. Installation
manual
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
Note:
• The Working Table WT-506 needs to be
mounted before to install this unit.
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
• If none of the later steps instruct you to use the
parts including screw and cover that you
removed following the instructions described in
this manual, discard them.
E-1
Shape
Q'ty
1
set
1
set
A79J-9621-00

Advertisement

loading

Summary of Contents for Konica Minolta AU-102

  • Page 1 AU-102 Authentication Unit INSTALLATION MANUAL Applied Machines: C658/C558/C458 COLOR MFP: 65 ppm/55 ppm/45 ppm Product Code: A79J/A79K/A79M 1. Accessory parts Name Shape Q’ty Name Shape Q’ty 9. Safety information 1. Authentication guide unit 10. Installation manual 2. USB cable 3. Hook-and-loop...
  • Page 2 2. Installation procedures (5) Run the supplied USB cable through the hole from under the table and connect the cable to the (1) Turn OFF the power switch and unplug the authentication unit. power cord from the power outlet. (2) Affix the supplied finger placement seal at the location shown below on the working table.
  • Page 3 (8) Connect the USB cable to the machine. (10) Route the USB cable as shown in the illustra- tion. Pull the USB cable up in order to remove Note: slack. Connect it the port shown in the illustration. (9) Attach the cord clamp supplied with the main body at the position shown in the illustration.
  • Page 4 (12) Close the cover that you opened in step (6). (13) Route the USB cable as shown in the illustra- <Installation of the loadable device driver> tion. Run the USB cable through the four wire Install the AU-102 loadable driver (BIO_LDR.tar) to saddles. the main unit. Note:...
