Summary of Contents for Revez HD400MOD

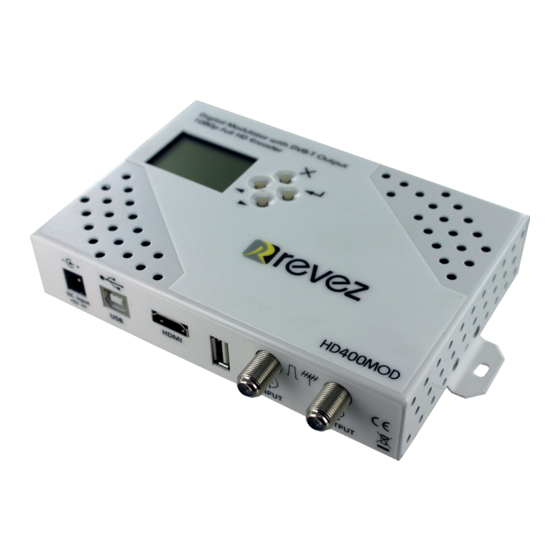

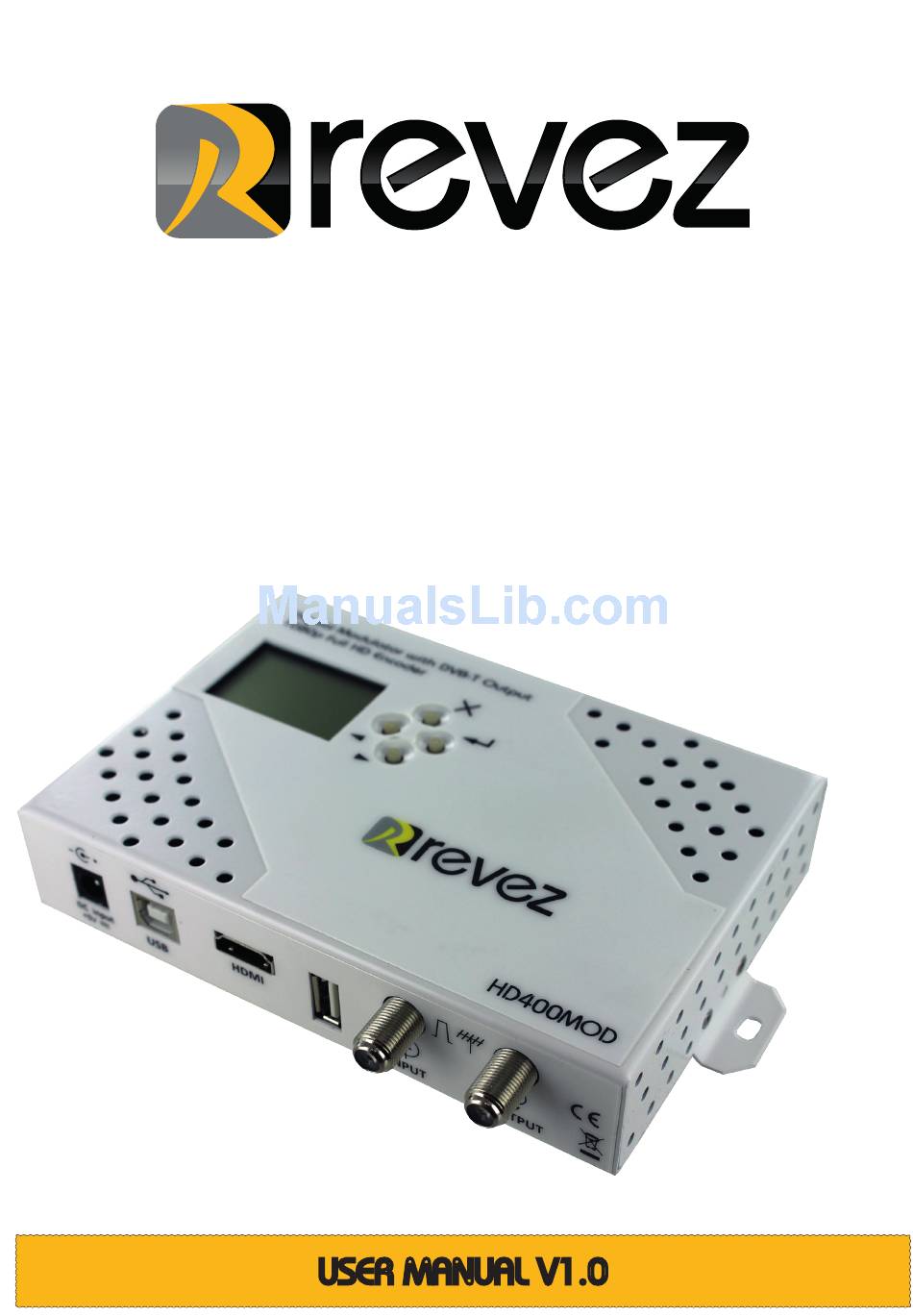

- Page 1 Digital Modulator with DVB-T Output 1080p Full HD Encoder HD400MOD USER MANUAL V1.0...
-
Page 2: Table Of Contents
DVB-T signal. Stand-alone configuration is made easy through 4 tact switches and ergonomic menu’s. To make the configuration of the HD400MOD ultra simple, a special software TMHDIface is available that you can download on our website anttron.com Contents 1 - Safety considerations ................3... -
Page 3: Safety Considerations
HD400MOD USER MANUAL 1 - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before car- rying out maintenance operation or modification of the installation, the modulator has to be discon- nected. -
Page 4: Description Of The Different Elements
HD400MOD USER MANUAL 2 - Description of the different elements Power supply input (5V/2A) USB input (for programming the HD400MOD by PC) RF input RF output for future use HDMI input Display CANCEL/RETURN button ENTER button (move forward/down) button t (move backward/up) button REVEZ©2015... -
Page 5: Installation And Menu Structure
3.2 - Powering up Plug in the connector of the power supply. The display will show the REVEZ logo while booting. Once the modulator has booted correctly the main menu will appear. In the first line the model number is displayed (HD400MOD) followed by the installed firmware version. -
Page 6: Menu Structure
HD400MOD USER MANUAL 3.3 - Menu structure The HD400MOD has different menus allowing easy access to the differents parameters and to change them when necessary. Below you will find the structure of the different menus. MAIN MENU DVB SETTINGS A/V SETTINGS... -
Page 7: Setting Up The Hd400Mod
HD400MOD USER MANUAL 4 - Setting up the HD400MOD 4.1 - The DVB settings menu In this menu you can set the output frequency, bandwidth, output level and specific param- eters for DVB-T. DVB SETTINGS FREQUENCY BANDWIDTH ATTENUATION MODE CONSTELLATION F.E.C. -
Page 8: The Av Settings Menu
HD400MOD USER MANUAL 4.2 - The AV settings menu VIDEO RATE In the A/V settings menu, you can set specific parameters for video and AUDIO RATE audio. AUD. COMPRESSSION VIDEO RATE VIDEO RATE 12000_ Set the video bit rate AUDIO RATE AUD. -
Page 9: The Language Menu
HD400MOD USER MANUAL NET ID. TS ID. ORIG. NET. ID. 100_ Set the Transport Stream ID. NETWORK NAME 8 Xfbc0123456789 TS ID. ORIG. NET. ID. PROGRAM ID NETWORK NAME Set the PROGRAM ID. TS ID. 8 Xfbc0123456789 PROGRAM ID. NETWORK NAME TS ID. -
Page 10: Programming Using A Pc
First, please install the software TMHDIFace on your PC. You can download this software from our website After installation of this software, connect the HD400MOD using a USB cable (not included) to your personal computer. Then launch the program TMHDIface. -
Page 11: Technical Specifications
HD400MOD USER MANUAL 6 - Technical specifications Video input Input HDMI Resolution modes 480p -576p -720p - 1080i - 1080P Compression H.264 – bitrate 5-15 Mb/s Audio input Input HDMI Sample Rate HDMI (32kHz / 44.1 kHz / 48 kHz) Compression AAC-LC / MPEG1-L2–... - Page 12 HD400MOD USER MANUAL REVEZ©2015 PAGE 12...
