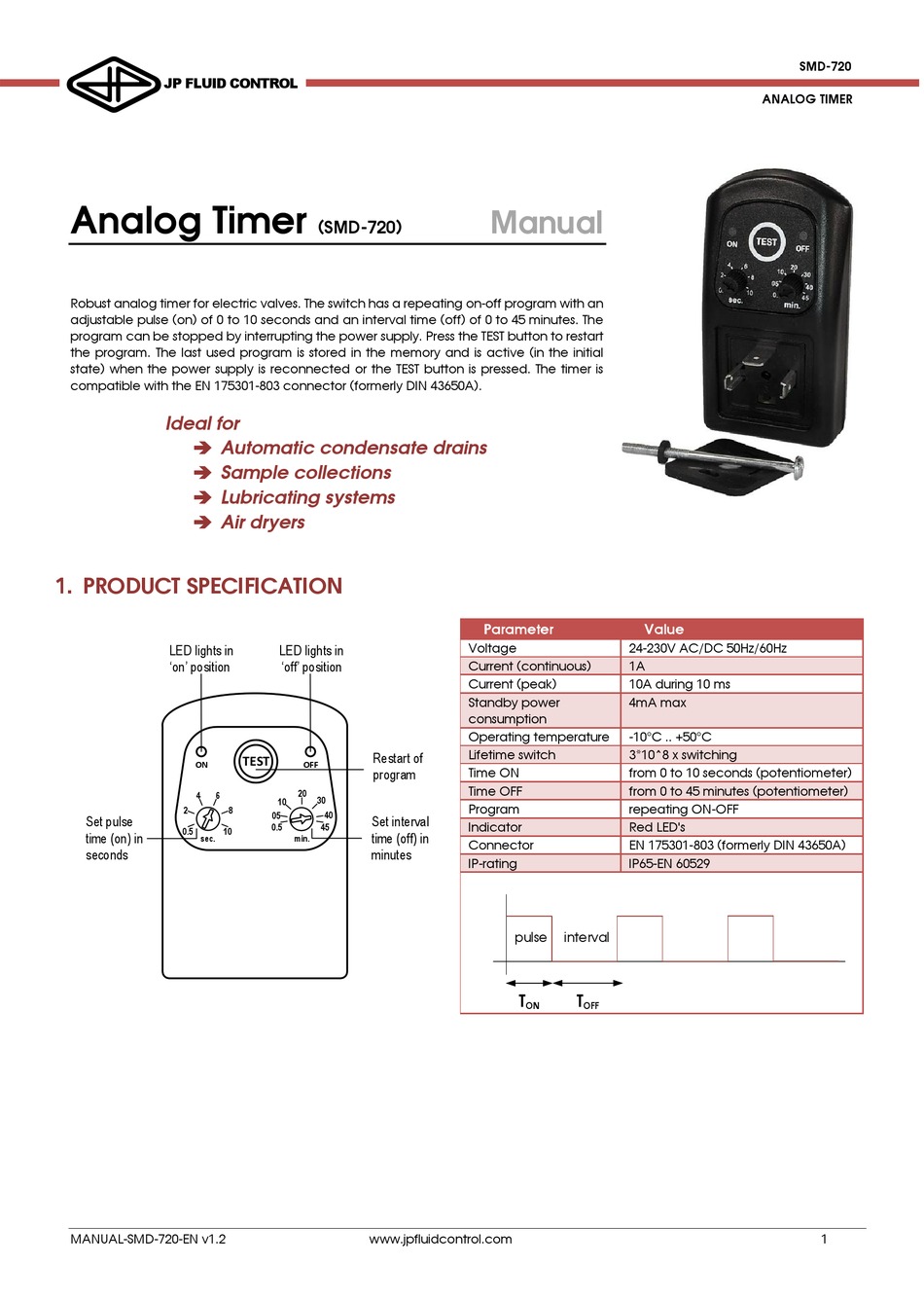

Analog Timer
Robust analog timer for electric valves. The switch has a repeating on-off program with an
adjustable pulse (on) of 0 to 10 seconds and an interval time (off) of 0 to 45 minutes. The
program can be stopped by interrupting the power supply. Press the TEST button to restart
the program. The last used program is stored in the memory and is active (in the initial
state) when the power supply is reconnected or the TEST button is pressed. The timer is
compatible with the EN 175301-803 connector (formerly DIN 43650A).
Ideal for
 Automatic condensate drains
 Sample collections
 Lubricating systems
 Air dryers
1. PRODUCT SPECIFICATION
LED lights in
'on' position
ON
4
6
2
8
Set pulse
0.5
10
time (on) in
sec.
seconds
MANUAL-SMD-720-EN v1.2
(SMD-720)
LED lights in
'off' position
Restart of
TEST
OFF
program
20
30
10
05
40
Set interval
0.5
45
time (off) in
min.
minutes
www.jpfluidcontrol.com
Manual
Parameter
Voltage
24-230V AC/DC 50Hz/60Hz
Current (continuous)
1A
Current (peak)
10A during 10 ms
Standby power
4mA max
consumption
Operating temperature
-10°C .. +50°C
Lifetime switch
3*10^8 x switching
Time ON
from 0 to 10 seconds (potentiometer)
Time OFF
from 0 to 45 minutes (potentiometer)
Program
repeating ON-OFF
Indicator
Red LED's
Connector
EN 175301-803 (formerly DIN 43650A)
IP-rating
IP65-EN 60529
pulse
interval
T
T
ON
OFF
SMD-720
ANALOG TIMER
Value
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMD-720 and is the answer not in the manual?

Questions and answers

Summary of Contents for JP Fluid Control SMD-720

  • Page 1 0 to 45 minutes (potentiometer) Program repeating ON-OFF Set pulse Set interval Indicator Red LED's time (on) in time (off) in min. sec. Connector EN 175301-803 (formerly DIN 43650A) seconds minutes IP-rating IP65-EN 60529 pulse interval MANUAL-SMD-720-EN v1.2 www.jpfluidcontrol.com...
  • Page 2: Safety Instructions

    Connect terminal (1) to the positive pole (DC) or the ► phase wire (AC). Terminal (2) must be connected to the negative pole (DC) or neutral wire (AC). Always connect the ground. In the following drawing the correct wiring is shown. MANUAL-SMD-720-EN v1.2 www.jpfluidcontrol.com...
  • Page 3 This manual can be downloaded from www.jpfluidcontrol.com Modifications reserved © JP Fluid Control This document has been prepared with great care. JP Fluid control assumes no responsibility for any errors that may appear in this document. No rights can be derived from this document MANUAL-SMD-720-EN v1.2...
