Summary of Contents for SIA CH61
-
Page 3: Using Your Extractor

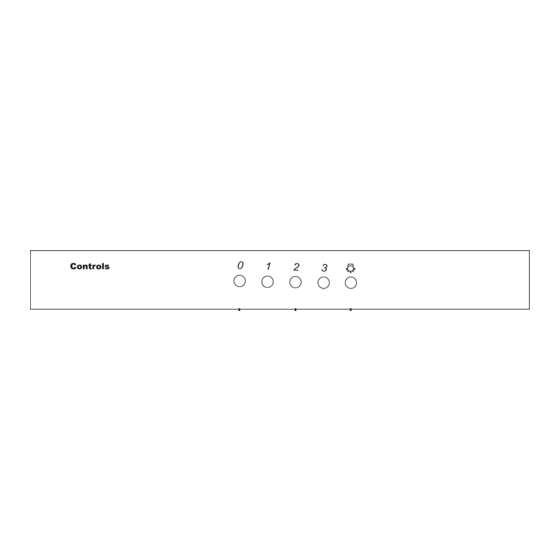

Using your Extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel A – Power off button B – Speed level buttons C –... -
Page 4: Care And Maintenance
Care and Maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. You can clean your extractor effectively by simply using a dilute solution of water and mild detergent and drying to a shine with a clean cloth. -
Page 6: Mains Electricity Connection
Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY DOUBLE POLE SWITCHED A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE FUSE SPUR OUTLET SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. -
Page 9: Installation
INSTALLATION Tools required Mark wall as required (see table 2) Fig. 5 Fig. 6 Drill holes Fit wall fixings and top screws - Ensure that any fixings you use are appropriate for the wall type. Fig. 7 Fig. 8 Secure hood (tighten all screws) Fit ducting adaptor Fig. - Page 10 Mount chimney brackets Fix ducting (seal joint) Fig. 11 Fig. 12 Mount the chimney Adjust and secure the chimney Fig. 13 Fig. 14 The metal casing of this appliance has been coated with a preservative to protect it during transport and storage. This should be removed during installation by using a non-abrasive stainless steel cleaner.
- Page 12 Please call for Service, contact number: 01623 752919...
