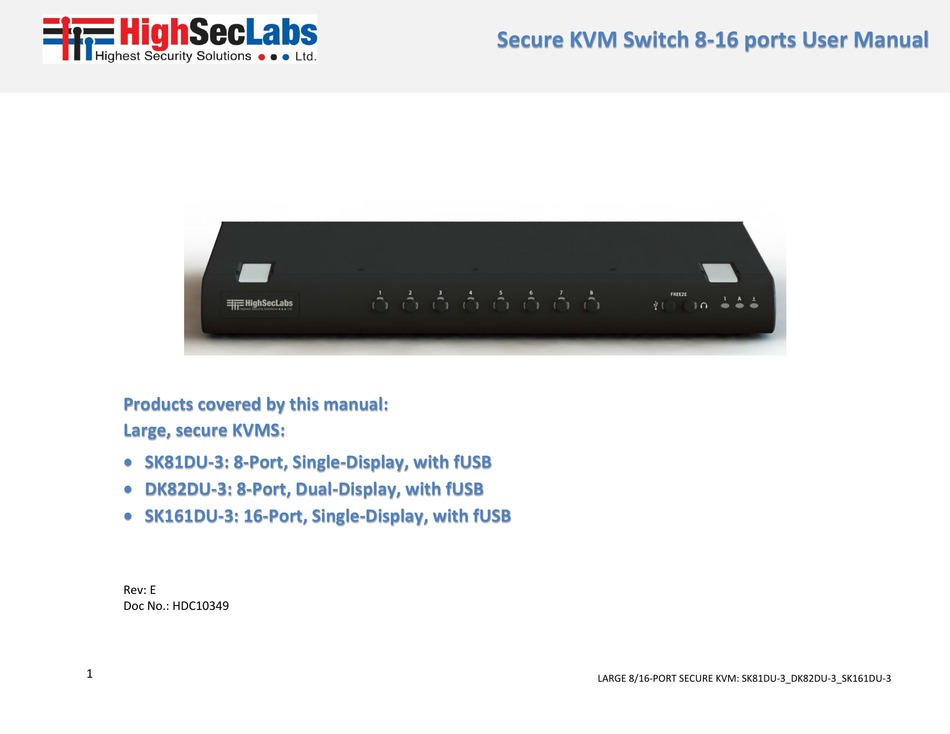

Secure KVM Switch 8-16 ports User Manual
Section 1 - Introduction
Products covered by this manual:
Large, secure KVMS:
 SK81DU-3: 8-Port, Single-Display, with fUSB
 DK82DU-3: 8-Port, Dual-Display, with fUSB
 SK161DU-3: 16-Port, Single-Display, with fUSB
Rev: E
Doc No.: HDC10349
1
LARGE 8/16-PORT SECURE KVM: SK81DU-3_DK82DU-3_SK161DU-3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK81DU-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for High Sec Labs SK81DU-3

  • Page 1 Secure KVM Switch 8-16 ports User Manual Section 1 - Introduction Products covered by this manual: Large, secure KVMS:  SK81DU-3: 8-Port, Single-Display, with fUSB  DK82DU-3: 8-Port, Dual-Display, with fUSB  SK161DU-3: 16-Port, Single-Display, with fUSB Rev: E Doc No.: HDC10349...

  • Page 2: Table Of Contents

    Table of Contents Introduction ..................3 Intended Audience ................3 Package Contents ................3 Revision ..................3 Safety Precautions ................. 4 Safety Precautions (French) ............5 User Guidance & Precautions ............6 Main Features ................8 Tamper Evident Labels ..............10 Active Anti-Tampering System ............

  • Page 3: Introduction

    Section 1 - Introduction Introduction Package Contents Thank you for purchasing this High Sec Labs (HSL) Secure product Inside product packaging you will find the following: designed for use in secure defense and intelligence installations.  HSL Secure KVM Product The product provides the highest security safeguards and features ...

  • Page 4: Safety Precautions

    Section 2 - Overview Safety Precautions Please read the following safety precautions carefully before using the product: • The product should be stored and used only in temperature and • Before cleaning, disconnect the product from any electrical power humidity controlled environments as defined in the product’s supply.

  • Page 5: Safety Precautions (French)

    Section 2 - Overview Safety Precautions (French) Veuillez lire attentivement les précautions de sécurité suivantes avant d’utiliser le produit: ou provoque des court circuits de la prise du secteur.  Avant nettoyage, débranchez l’appareil de Un liquide a pénétré dans le boîtier de l’alimentation DC / AC.

  • Page 6: User Guidance & Precautions

    Section 2 - Overview settings will be restored, erasing all user-set definitions. User Guidance & Precautions 3. The appropriate usage of peripherals (e.g. keyboard, mouse, Please read the following User Guidance & Precautions carefully display, authentication device) is described in detail in this before using the product: User Manual's appropriate sections.
  • Page 7 Section 2 - Overview keyboard strokes on screen when using the keyboard. 13. If you are aware of any potential security vulnerability while b. When connecting a non-qualified mouse, the mouse installing or operating product, please remove product from will be non-functional with mouse cursor frozen on service immediately and contact us in one of the ways listed screen.

  • Page 8: Main Features

    Section 2 - Overview Secure administrator access & log functions Main Features Product incorporates secure administrator access and log functions Product is designed, manufactured and delivered in security- to provide auditable trail for all product security events, including controlled environments. Below is a summary of the main advanced battery backup life for anti-tampering and log functions.
  • Page 9  Product support DVI-I displays as well as VGA and HDMI via compatible cables.  SK81DU-3 and SK161DU-3 support single displays.  DK82DU-3 supports dual display Resolutions Supported Products support video resolutions of up to 4K-2K Ultra HD (3840 X 2160 pixels).

  • Page 10: Tamper Evident Labels

    Section 2 - Overview Tamper Evident Labels Product uses holographic tamper evident labels to provide visual indications in case of an enclosure intrusion attempt. When opening product packaging inspect the tampering evident labels. If for any reason one or more tamper-evident label is missing, appears disrupted, or looks different than the example shown here, please call Technical Support and avoid using that product.

  • Page 11: Equipment Requirements

    Section 2 - Overview b. For security reasons products do not support wireless keyboards. In any case do not connect wireless keyboard to Equipment Requirements product. c. Non-standard keyboards, such as keyboards with integrated USB hubs and other USB-integrated devices, may not be fully Cables supported due to security policy.
  • Page 12 Section 2 - Overview Video Support  Models support DVI-I displays as well as VGA and HDMI via compatible cables. Resolutions Supported Products support video resolutions of up to 4K-2K Ultra HD (3840 X 2160 pixels). User Audio Devices Product is compatible with the following types of user audio devices: ...

  • Page 13: Front Panel Features

    Section 2 - Overview Front Panel Features Note: the model described in above image is SK81DU-3 (8-port, single head). The other models are identical except for the following:  DK82DU-3 is 8-port dual-head and therefore slightly higher.  SK161DU-3 is 16-port single-head and therefore includes 16 ports.

  • Page 14: Rear Panel Features (Dk82Du-3)

    Note: the model described in above image is DK82DU-3 (8 port dual head model). The other models are identical except for the following: SK81DU-3 is 8-port single-head and therefore includes single video port in the console and for each computer. SK161DU-3 is 16-port single-head and therefore includes 16 ports.

  • Page 15: Product Specifications

    1/8" (3.5mm) stereo plug (SK161DU-3) Computer Video Input plug: No. of Displays Supported: (SK81DU-3; SK161DU-3) 1 x DVI-I video port (SK81DU-3; SK161DU-3 models) (DK82DU-3) 2 x DVI-I video port (DK82DU-3 model) Console Keyboard Input: USB Type-A female connector or PS/2...

  • Page 16: Before Installation

    Section 2 - Overview Before Installation Where to locate the Product? Unpacking the Product The enclosure of the product is designed for desktop or under the Before opening the product packaging, inspect the packaging table configurations. An optional Mount Kit is available. condition to assure that product was not damaged during delivery.

  • Page 17: Installation

    Section 4 - Operation classical keyboard (HID) operation will be functional. It is Installation recommended to use standard USB keyboards. 4. Console USB mouse port supports Standard KVM Extender Connecting devices to product console composite device having a keyboard/mouse functions. Product requires connection of all devices and computers prior to powering it up.
  • Page 18 Section 4 - Operation When you power up your computers, the product emulates display, The USB device will be detected only if it is fully compliant with USB mouse and keyboard on each port and allows your computers to boot 1.1 or USB 2.0 standard and is included in the list of recognized USB normally.

  • Page 19: Typical System Installation

    Section 4 - Operation Typical system installation LARGE 8/16-PORT SECURE KVM: SK81DU-3_DK82DU-3_SK161DU-3...

  • Page 20: Operation

    Section 4 - Operation The mouse cursor will be positioned at the center of the selected Operation computer display. The currently selected channel is indicated by white color Operating the Product illumination of the appropriate push-button. Self-Test Procedure: Once a different channel is selected – video, keyboard, mouse, audio As product powers-up it performs a self-test procedure.
  • Page 21 Section 4 - Operation will be inoperable. In such case the USB device must at the moment. This means that switching channels would not affect be replaced with a qualified device. the processes performed by the USB device connected to that o When connecting a USB device to the product's fUSB channel.

  • Page 22: Troubleshooting Guide

    Section 5 - Troubleshooting General Problem: As product powers-up all channel-select LEDs are turned Troubleshooting Guide ON and then OFF. After that a specific, predefined LED combination is turned ON. Product is inoperable. Solution: The product did not pass self-test procedure. Try to power Important Security Note: cycle product.
  • Page 23 Troubleshooting Problem: Keyboard does not work (all channels) Problem: Mouse does not work (all channels) Solutions: Solutions:   Check that the keyboard you are using is properly connected Check that the mouse you are using is properly connected to to product.
  • Page 24 Troubleshooting   Check that displays' diagnostic LED is steady green – if not, Connect displays directly to computer showing bad video change displays, change displays' cables or call technical image to see if problem persists. support. fUSB Problem: fUSB is not working (two channels) Problem: No video image in user display (specific channel) Solutions: Solutions:...

  • Page 25: Copyright And Legal Notice

    Legal Notice COPYRIGHT AND LEGAL NOTICE © 2015 High Sec Labs Ltd. (HSL) All rights reserved. PATENTS AND TRADEMARKS This product and/or associated software are protected by copyright, The products described in this manual are protected by multiple international treaties and various patents.
