Summary of Contents for ARCHITETTURA SONORA ASM2

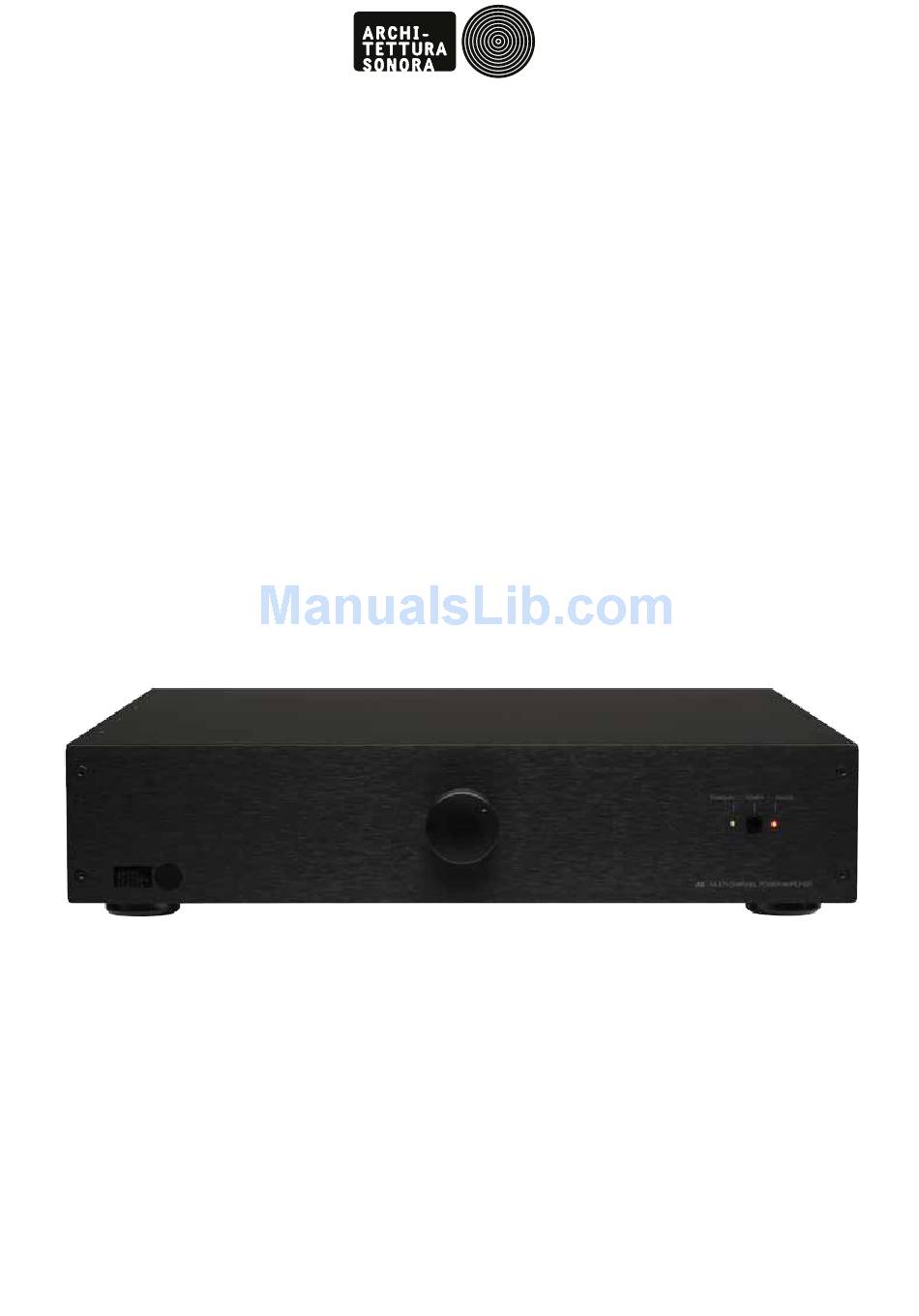

- Page 1 ARCHITETTURA SONORA AMPLIFIERS USER’S MANUAL...
-
Page 2: Table Of Contents
Index Important Safety Precautions Introduction User Instructions General Informations System Wiring Rack Mount Kit Possible Con gurations Operation Troubleshooting Technical Speci cations Maintenance End-of-life Product Disposal Warranty Declaration of Conformity Last update: December 2017 Speci cation could be changed without notice... -
Page 3: Important Safety Precautions
This symbol indicates the presence of “dangerous voltage” that may cause the risk of electric shock. Pay the utmost attention and proceed cautiously. For a correct and safe use of Architettura Sonora’s ampli ers, to protect your own and W A R N I N G other people’s safety and to avoid invalidation of the product warranty, please read this... -
Page 4: Introduction
It is advisable to save the packaging materials even if the ampli er shows no sign of shipping damage; you might have to return it to Architettura Sonora or to one of its dealers. Use the original package only, which is the best way to protect the equipment from shipping mishandling. -
Page 5: General Informations
AC Mains Power Cable > Connect AC power to the IEC socket on the back of the ampli er. NOTE: Turn off the AC power switch before connecting AC power. Connect the AC mains plug to a suitable AC mains outlet. Orient the IEC connector with the connector prongs in the socket, then push the connector rmly into the IEC socket until fully seated. -
Page 6: System Wiring
5. System Wiring All AS ampli ers are multichannel, i.e. each output channel (speaker) has an independent input connector, which is the perfect solution to manage different acoustic areas or to create environmental music with different sounds. Input Connection > The connection of the music source to the ampli er is via RCA connectors (Input). -
Page 7: Rack Mount Kit
7. Possible Con gurations Architettura Sonora has revolutionized the multidimensional sound experience with his collection of loudspeaker and with its line of ampli ers enhancing that experience. Following some possible con gurations intended as general guidelines, covering a standard listening space. -
Page 8: Operation
Multi-room / multi-source Con guration > Room 1 > Music A Room 2 > Music B Stereo Stereo Music Music source source 5.1 Surround Con guration > central 5.1 Processor Music Source 8. Operation After completion of installation and wiring, as described in the previous paragraphs, switch the ampli er ON by actuating the rear mains switch (N). STAND-BY POWER STATUS... -
Page 9: Troubleshooting
CONDITION: Power indicator is blinking from green to red. • One or more modules are operating outside their rated specifications' range. Reduce the master volume’s value. If the problem persists contact ARCHITETTURA SONORA SERVICE CENTER. CONDITION: Ampli er turns off when playing. •... -
Page 10: Technical Speci Cations
Technical Speci cations Model ASM2 / ASM2EVO ASH3 / ASH3EVO 2 ch × 1100 W 2 ch × 450 W + 1 ch × 1100 W Rated power output (< 1% THD+N, 20Hz – 20kHz) 2 ch × 550 W 2 ch ×... - Page 11 ASC4 / ASC4EVO ASC6 / ASC6EVO ASD8 4 ch × 450 W 6 ch × 450 W 8 ch × 200 W 4 ch × 250 W 6 ch × 250 W 8 ch × 120 W 20 Hz – 20 kHz 20 Hz –...
-
Page 12: Maintenance
The warranty is valid for 2 years starting from the receipt of goods. Architettura Sonora reserves the right, in some cases, to decide the replacement of a product with an identical or similar one. In case of failure, the product replacement and warranty extension are excluded. The guarantee does not pay for incidental or consequential damages, without limitation, caused to persons or property during the period of possible product inef ciency. -
Page 13: Declaration Of Conformity
Multichannel audio power ampli er Serie : Family name: modelli: ASM2, ASM2EVO, ASH3, ASH3EVO, ASC4, ASC4EVO, ASC6, ASC6EVO, ASD8 models: ASM2, ASM2EVO, ASH3, ASH3EVO, ASC4, ASC4EVO, ASC6, ASC6EVO, ASD8 ai quali questa dichiarazione si riferisce sono conformi alle seguenti norme o altri documenti normativi: to which this declaration relates are in conformity with the following standards or other normative documents: - Compatibilità... - Page 14 ARCHITETTURA SONORA a division of B&C SPEAKERS via del Fornaccio, 44 - Vallina 50012 - Bagno a Ripoli (FI) - Italy Tel +39 055 65721 Fax +39 055 6572312 info@architetturasonora.com www. architetturasonora.com...
