Merlin Gerin Sepam series 20 Quick Start Quide

03146790FE+G0+NP00000000
DANGER
HAZARD OF ELECTRIC SHOCK, BURN
OR EXPLOSION
b turn off all power supplying the Sepam
and the equipment in which it is installed
before working on it.
b always use a proprely rated voltage
sensing device to confim that power is off.
b replace all devices, doors, and covers
before turning on power to this equipment.
b before energizing the power equipment,
replace all barriers and covers.
Failure to observe this instruction will
result in death, serious injury or
equipment damage.
For more informations, please refer to "Sepam series 20
Installation and user's manual" PCRED301005EN or
"Sepam series 40 Installation and user's manual"
PCRED301006EN.
Electrical network protection

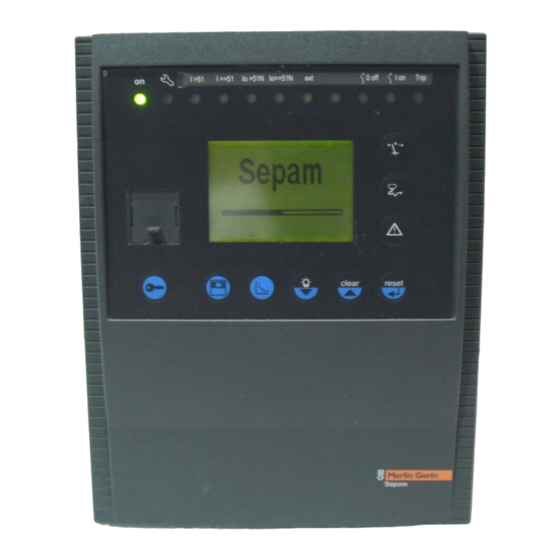

Sepam series 20
Sepam series 40
Quick start
Storage
Sepam may be stored in its original packaging in a closed
sheltered location:
b ambient temperature: -25 °C ... +70 °C (or -13 °F ... +160 °F)
b relative humidity y 90 %.
Periodic checking of the storage environment and of the packaging
on a yearly basis is recommended.
Commissioning
Once installed, the Sepam must be energized as soon as possible,
especially in a damp location (humidity u 90 %).
Storing an unenergized and unpackaged Sepam for a long period
may damage the unit.
Identification
Each Sepam comes in a single package that contains the base
unit and its connector.
Other optional accessories such as modules, current or voltage
input connectors and cables come in separate packages.
To identify a Sepam, check the 2 labels on the right side panel of
the base unit that describe the firmware and hardware features of
the product:
b hardware equipment label (for instance Sepam series 20)
59607
Series 20/advanced UMI/24-250V
Séries 20/IHM avancée/24-250V
S10UD
Final testing:
date and
operator code
b firmware equipment label
59607
Test PASS: 12/14/2006
Operator: C99
