Skywalker SKYBED Series Manual

Assembly information, maintenance and user instructions manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

SKYBED

Assembly Information, Maintenance

and User Instructions Manual

WARNING

CAUTION: Adult Assembly

SKYWALKER

Required

SPORTS

Read all precautions and instructi-

ons in this manual before using this

equipment. Save this manual for

future reference.

Maximum weight capacity 700 lbs.

Skywalker Holdings LLC

PO Box 574, Brigham City, UT 84302

Model SSBD100 Skybed Patio Furniture

Table of Contents

Need help?

Do you have a question about the SKYBED Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Skywalker SKYBED Series

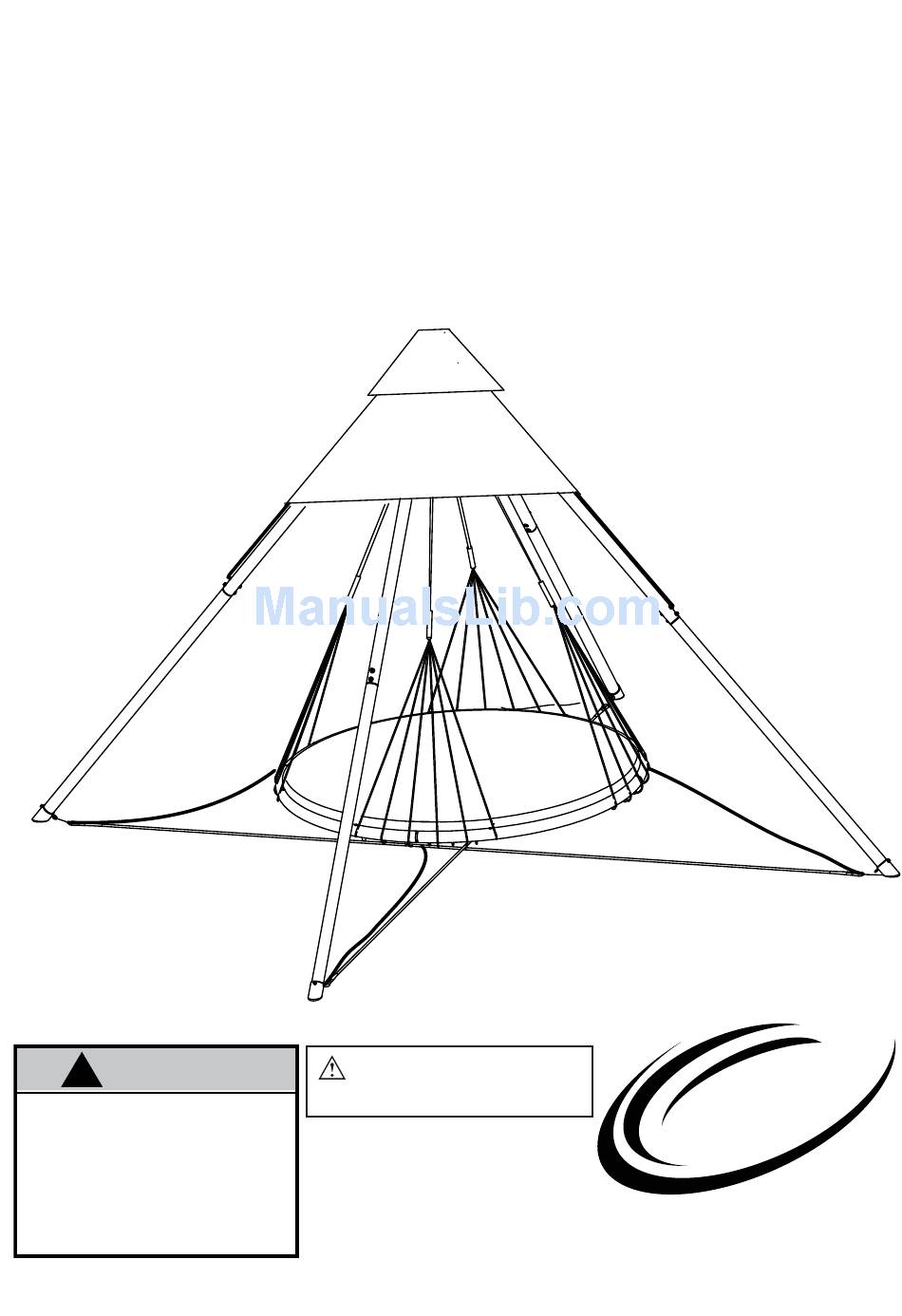

Page 1 SPORTS Read all precautions and instructi- ons in this manual before using this equipment. Save this manual for future reference. Maximum weight capacity 700 lbs. Skywalker Holdings LLC PO Box 574, Brigham City, UT 84302 Model SSBD100 Skybed Patio Furniture...
Page 2: Table Of Contents
Model # ID label is located at the bottom base corner of the Skybed. (Model # ID label location) CONTENTS Before you Begin ........................3 Installation....
Page 3: Before You Begin
BEFORE YOU BEGIN Thank you for selecting a Skywalker Holdings Skybed. The Skybed will provide you many years of backyard lounging and enjoyment. Your Skybed comes equipped with warnings and instructions for the assembly, care, maintenance, and use. This information must be read by all Skybed users before use.
Page 4: Skybedsafety Information
SKYBED SAFETY INFORMATION The skybed is a piece of furniture. This is not a toy. USING THE SKYBED SAFELY Electrocution Hazard Associated with the Metal Frame of the Skybed The Skybed frame is made of metal. It is not grounded and will conduct elctricity. For this reason, an electrocution hazard exists.
Page 5: Part Identification Chart
ASSEMBLY PART IDENTIFICATION CHART Before beginning assembly, refer to the drawings below to identify all the parts used in assembly. Upper Pole (2) - 4pcs Top Joint (1)-1pc Frame Tube W/Hooks (4) - 4pcs Lower Pole (3) - 4pcs Frame Tube W/O Hooks (5) - 4pcs Suspension Rope W/ Chain and Clips (8)
Page 6: Part Identification Chart
ASSEMBLY PART IDENTIFICATION CHART M10 x 85mm Hex Bolt(17) - 4pcs M10 Curved Washer (18) - 8pcs M10 Nut (19) - 4pcs M8 x 60mm Button Bolt(20)-8pcs M8 x 75mm Button Bolt(21) - 4pcs M8 x 85mm Button Bolt(22) - 4pcs M8 Curved Washer (23) - 40pcs M8 Flat Washer(25) - 4pcs Spacer(26) - 4pcs...
Page 7: Parts List
PART LIST Key No. Descriprition Top Joint Upper Pole Lower Pole Frame Tube W/Hooks Frame Tube W/O Hooks Mat w/ D-rings Straps w/ Clip on Each End Suspension Rope W/Chain and Clips Bottom Rope W/Clips Limit Rope Bottom Tube Endcap Closed Eyebolt Cushion Sunshade W/Elastic Rope...
Page 8: Exploded Drawings
EXPLODED DRAWING 18 19 25 26 23 21...
Page 9: Assembly
ASSEMBLY Make Things Easier for Yourself! This manual is designed to ensure that the Skybed can be assembled successfully by anyone Most people find that by setting aside plenty of time, assembly will go smoothly. Before beginning assembly , carefully read the following information and instruction: * The assembly requires at least two people.
Page 10 3. Attach two D10mm Connection Rings (16) to the D10mm Connection Ring (16) as shown, then tighten the nuts of D10mm Connection Rings (16). 4. Attach two Suspension Ropes W/Chain and Clips (8) to one of the D10mm Connection Rings(16) as shown, then attach the other two suspension ropes w/chain and Clips (8) to the other D10mm Connection Ring (16).
Page 11 Cover the Top Joint (1) with the Sunshade w/elastic rope (14) aligning the hole in the top of the shade with the hole at the top of the top joint. Then attach the the Sunshade w/elastic rope (14) to the Top Joint (1) with M12X 20mm Hex Bolt (27), M12 Flat Washer (28) and M12 Big Washer (15).
Page 12 7. Attach the Bottom Tube Endcap (11) to the Lower Pole (3) with the Closed Eyebolt (12), two M8 Curved Washers (23) and M8 Nut (24). Attach the other three Bottom Tube Endcaps (11) to the other Lower Poles (3) in the same way. 8.
Page 13 10. Lay the Frame Tube W/Hooks (4) and the Frame Tube W/O Hooks (5) on the ground in the positions as shown. Attach the Frame Tube W/Hooks (4) to the Frame Tube W/O Hooks (5) with the M8X60mm Button Bolt (20), two M8 Curved Washers (23) and an M8 Nut (24).
Page 14 13. Attach the Straps w/Clip on Each End (7) as follows: Clip one end of a Straps w/Clip on Each End (7) frame hook into a D-ring sewn on the Jump Mat w/D-rings (6). Pull D-ring the strap until it reaches the frame. Then wrap the strap around the frame and through the next closest D-ring continuing in this manner until you reach the end of the strap.
Page 15 15. Wrap the frame cover (29) around the frame. Look underneath the Skybed and locate the clips on the underside of the frame cover (29). Attach the clips to the D-rings of the Mat (6) . Repeat this step with all remaining clips (not shown). If the straps are a little long or the frame cover (29) is too loose, please pull the straps to hang on other farther D-rings.
Page 16: Assembly
Attach the Bottom Rope W/Clip (9) to the Frame Tube W/Hooks (4) with Limit Rope (10). The Limit Rope (10) can attach to either the third or fourth hook of the Frame Tube W/Hooks (4). elastic rope Pull the elastic rope of the Sunshade W/elastic rope (14) to the Spacer (26).
Page 17: Appended Diagram
Appended Diagram The diagrams below shows the proper method of use. Use the diagrams to ensure proper use, and to make sure that the Skybed is assembled correctly. 1. After a period of time, the Suspension Rope W/Chain and Clips (8) may be stretched, causing the Cushion (13) to hang unlevel or hang lower.
Page 18 ! WARNING Read the assembly, installation, care, maintenance, and use instructions in this manual prior to assembling and using this Skybed. Save this manual for future reference.
Page 19: Maintenance Information
MAINTENANCE INFORMATION This product was manufactured using quality materials and crafted to provide you and your family with many years of enjoyment. Proper maintenance care will help to prolong the life and reduce the possibility of injury. The following guidelines should be followed. 1.
Page 20: Limited Warranty
Skywalker Holdings, LLC option, the product at one of this authorized service centers. All products for which a warranty claim is made must be received by Skywalker Holdings, LLC at one of its authorized locations. Preauthorization may be obtained by calling Skywalker Holding, LLC Customer Care Hot Line at 1-866-603-Jump(5867).
