Eachine TX03 Instruction Manual

4. Long-press the button for 5 second until digital display
flicker. Then short-press the button to change the power,
25mW/50mW/200mW (one hyphen stands for 25mW,
two hyphens stand for 50mW, and three hyphens stand
for 200mW).
5. 5 seconds after setting, CH, FR and power will flicker




alternately.
Notice: The vtx has memory for settings. To change the
settings, please repeat steps as above.

Frequency and channel frequency table:

Band CH1 CH2 CH3 CH4 CH5
ĘM ŌŇǼ Ė
5865 5845 5825 5805 5785
Band-b 5733 5752 5771 5790 5809
Band-E 5705 5685 5665 5645 5885
Band-F 5740 5760 5780 5800 5820
Band-r 5658 5695 5732 5769 5806
Band-U 5325 5348 5366 5384 5402
Band-o 5474 5492 5510 5528 5546
Band-L 5333 5373 5413 5453 5493
Band-H 5653 5693 5733 5773 5813
www.eachine.com

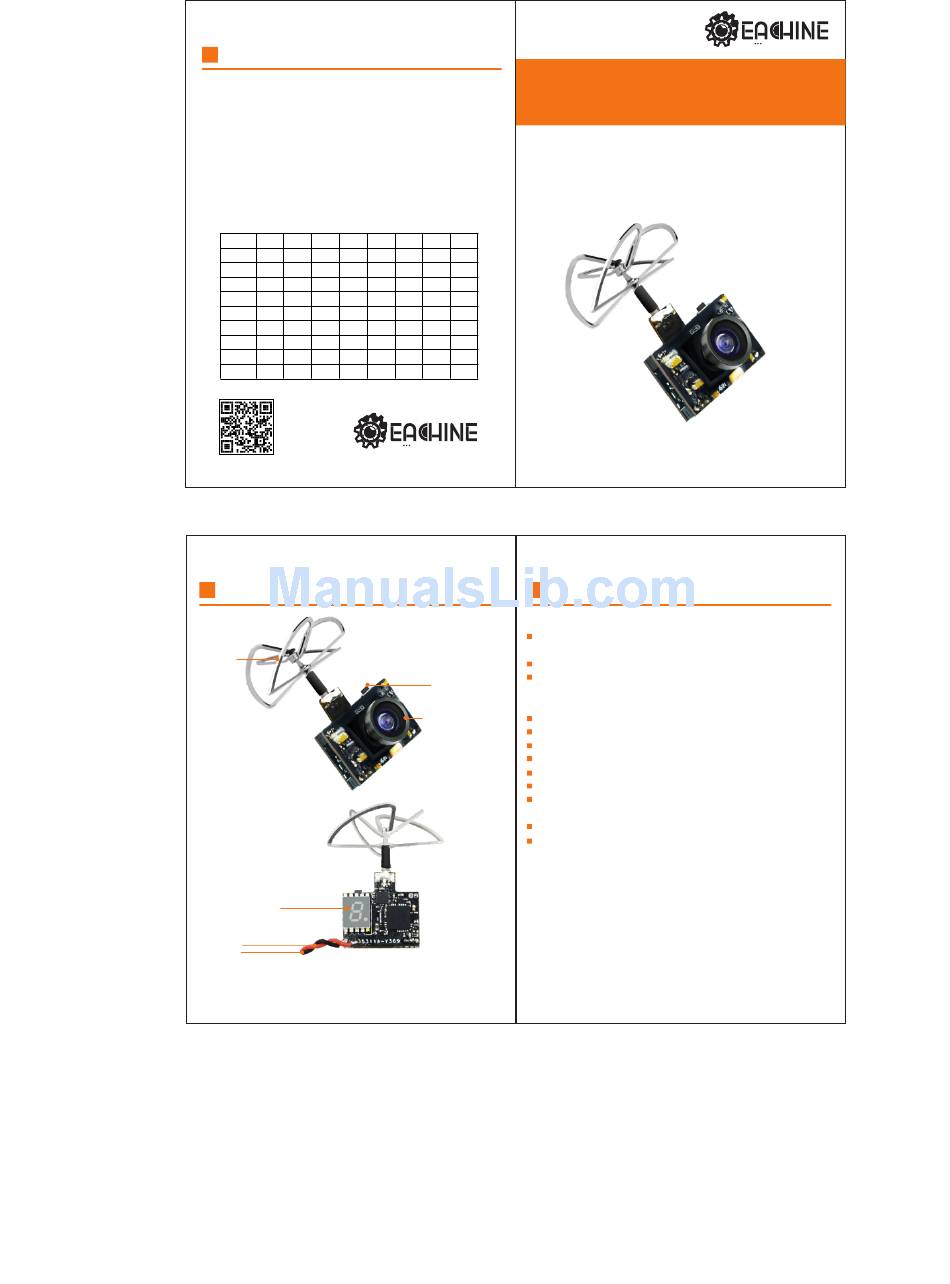

Four leaf
antenna
LED display
GND
2.5-5.5V

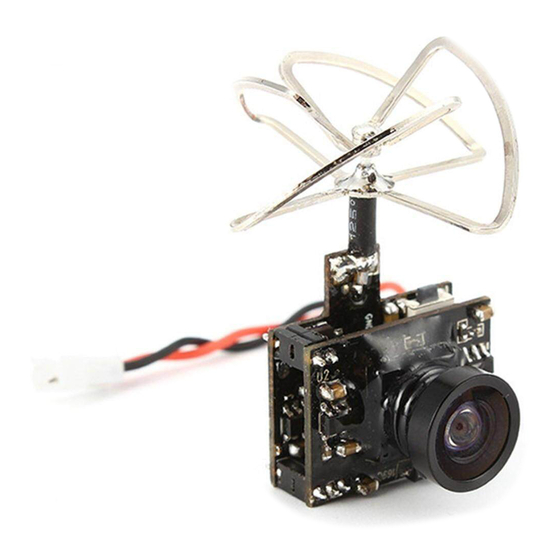

Super Mini 5.8GHz 72CH FPV Transmitter
+600TVL FPV Camera+ Four leaf antenna
尺寸：126*93mm
材料：128g双铜
PRODUCT
SPECIFICATION
EACHINE TX03
Super Mini 5.8GHz 72CH FPV Transmitter
+600TVL FPV Camera+Four leaf antenna
0/25mW/50mW/200mW adjustable
CH6 CH7 CH8
5765 5745 5725
5828 5847 5866
5905 5925 5945
5840 5860 5880
5843 5880 5917
5420 5438 5456
5564 5582 5600
5533 5573 5613
5853 5893 5933
PRODUCT
SPECIFICATION

Specification and Parameters:

Output power:0/25mW/50mW/200mW adjustable
(Set output power on 0, to avoid frequency interference)
Input power: 2.5–5.5V
Current consumption:

250mA-510mA(25mW)
Button

























270mA-640mA(50mW)

























330mA-740mA(200mW)
600
TVL
Camera Camera resolution: 600TVL
Video system:NTSC
Mini illumination: 1 lux
Field of view: 120°
FOV



150°DFOV
Antenna dimensions: 22mm X 29mm diameter
Antenna: 4 lobe right hand circular polarized
Frequency: 5.8GHz 9 bands 72 channels,



















with Raceband: 5325-5945
MHZ
Size: 20.66*14.06mm(L*W)
Weight: 5g

Operation Instruction:

1. Powering on the vtx, blue LED display 0, indicating
the vtx is powered on, but it is in off status without
any transmission.
2. Short-press the button to change channel (CH), digital
display will change synchronously. Digital display
changes cyclically from 1 to 8.
3. Long-press the button for 2 seconds until digital
display flicker. Then short-press the button to
change the frequency band (FR), digital display will
change synchronously. Digital display changes
cyclically from A、b、E、F、r、U、o、L、H.
Product Instruction
Manual
PRODUCT
SPECIFICATION
