Installation Guide
English – May 2002

Introduction

This installation guide provides installation and removal
instructions. To receive a copy of the instruction manual,
contact your local Fisher Sales Office or Sales Representative
or view a copy at www.FISHERregulators.com. For further
information refer to:
Type 252 Filter Instruction Manual, form 5438, D102465X012.

P.E.D. Categories

This product may be used as a safety accessory with
pressure equipment in the following Pressure Equipment
Directive 97/23/EC categories. It may also be used out-
side of the Pressure Equipment Directive using sound
engineering practice (SEP) per table below.
P
R
O
D
U
C
T
S
Z I
E
D
N
8
1 (
4 /
i -
c n
) h

Specifications

Inlet and Outlet Connection Size
DN 6 (1/4-inch) NPT
Maximum Working Pressure
Aluminum: 148 bar (2150 psig)
Proof Test Pressure
All Pressure Retaining Components have been
proof tested per Directive 97/23/EC - Annex 1,
Section 7.4
Filter Rating
20 microns
(1)
Maximum Differential
70 bar (100 psig)
(1)
Temperature Capabilities
-40 to 82°C (-40 to 180°F)
1. The pressure/temperature limits in this installation guide and any applicable
standard or code limitation should not be exceeded.
A7013
OPTIONAL DRAIN VALVE
C
A
T
E
G
O
R
E I
S
F
L
U
D I
T
Y
P
E
S
E
P
1
(1)

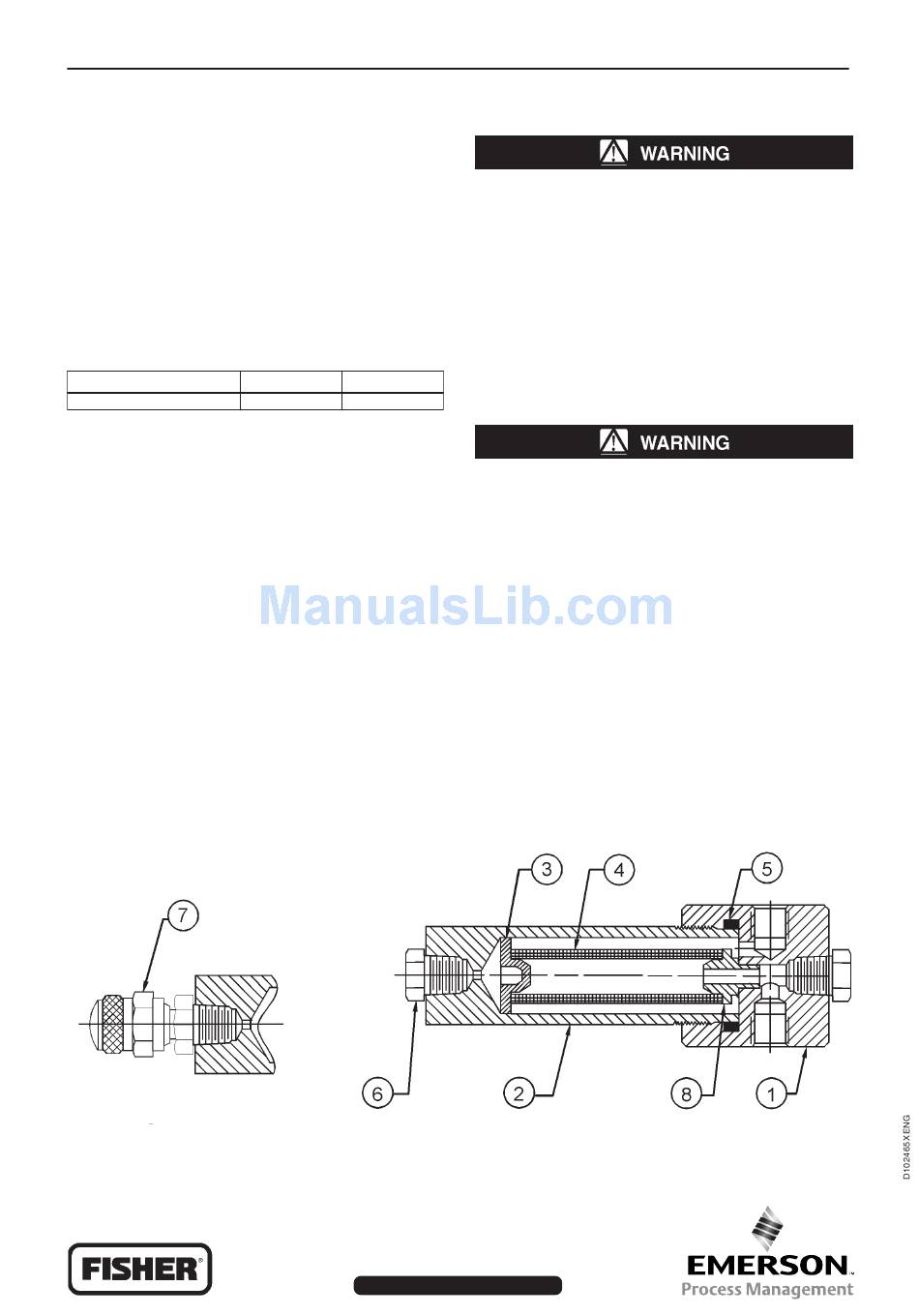

Figure 1. Type 252 Filter
www.FISHERregulators.com

Installation

Personal injury, equipment damage, or leakage
due to escaping fluid or bursting of pressure-
containing parts may result if the filter is installed
where its capabilities can be exceeded or where
conditions exceed any ratings of the adjacent
piping or piping connections. To avoid this, install
a filter where:
• Service conditions are within unit capabilities.
• Service conditions are within applicable codes,
regulations, or standards.

Taking Out of Service (Shutdown)

To avoid personal injury resulting from sudden
release of pressure, isolate the regulator/filter
from all pressure and cautiously release trapped
pressure from the regulator/filter before
attempting disassembly.

Parts List

Key Description
1
Filter Head Assembly
2
Filter Body
3
Lower Seat
4
Filter Cartridge
5
O-Ring
6
Pipe Plug
7
Drain Valve
8
Upper Seat
STANDARD BODY
Type 252
