Pilgrim Zoe User Manual

User Manual

Replace battery

(model CR2032)
Remove the cover.

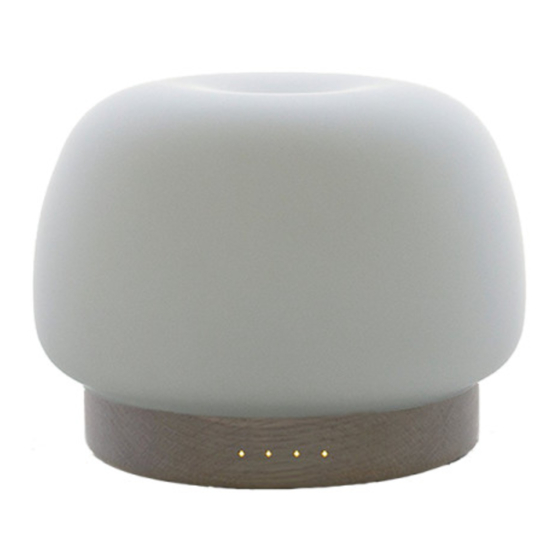

Meet Zoe

Mist Outlet

Top Cover

Water Tank Cover

Water Tank

DC Socket (Back)

LED Indicators

Base

Note: to avoid light pollution during your sleep, the LED
indicators automatically switch off after a few seconds.

How to clean

Note: always turn off + unplug the device before cleaning it, and
don't use any sharp objects
To clean the water tank: empty it before wiping it, using a soft
and damp cloth. You can use a gentle detergent or white
vinegar if needed. Rinse and dry well before using or storing
the device again.
To clean the ultrasonic oscillator (at the bottom of the water tank):
use a cotton bud with alcohol.

How to use

Remove the top cover. Remove the water tank cover.
Fill the tank with water up to the max level. Use fresh clean water
(tap water is best, temperature under 100°F).

Possible issues

Problem Possible cause Solution
The power-on light The aroma diffuser is Check all plugs. Place the plug
does not turn on. not properly connected properly in the wall socket
to the mains. and then switch on the diffuser.
The fan works but no The water tank is empty Fill the water tank with more
mist comes out of mist of the water level is too low. water.
outlet.
The aroma diffuser The water in the tank is not Renew the water after cleaning
produces an unpleasant clean or has been left in the the tank as explained in "how
smell. tank for too long. to clean" section.
The power-on light is There is too much water Pour out some water to reach
activated but the aroma appropriate fill level. Put back
in the tank.
diffuser does not work. the top cover.
The aroma diffuser is There is dirt on the oscillator. Clean the water tank, as
not producing enough The water might also be dirty explained in the "how to clean"
mist. or left in the tank for too long. section, then fill with fresh water.
The water level is too low; Make sure there is enough
The aroma diffuser
the aroma diffuser might be water in the water tank. Place
makes a strange noise
standing on an unstable the aroma diffuser on a smooth,
when it is on.
surface. flat and stable surface.
Zoe does not respond The battery of the remote Replace the battery (Model
to the remote control. control is dead. CR2032) of the remote control.
Add 5 to 10 drops of essential
Close water tank cover.
oil (or pure essential oil bend).
Plug the DC socket into the
Put the top cover back.
diffuser and the adaptor to
the wall socket.
Let's get technical
Product type: ultrasonic diffuser
Size: 6,1 x 8,2 inch
Capacity: 500ml
Power: 24 watt
Power input: 24V/1A
Run time: 6 hours (continuous mode) - 12 hours (intermittent mode)
Material: glass and oak wood
Accessories: adaptor + remote control

How to control

Mist on/off Alternate mist:
30 seconds on/off
Continuous mist
Timer
until there is no
more water
Mist levels
Meditation light
Light on/o
Light dimmer Illuminate dimmer
